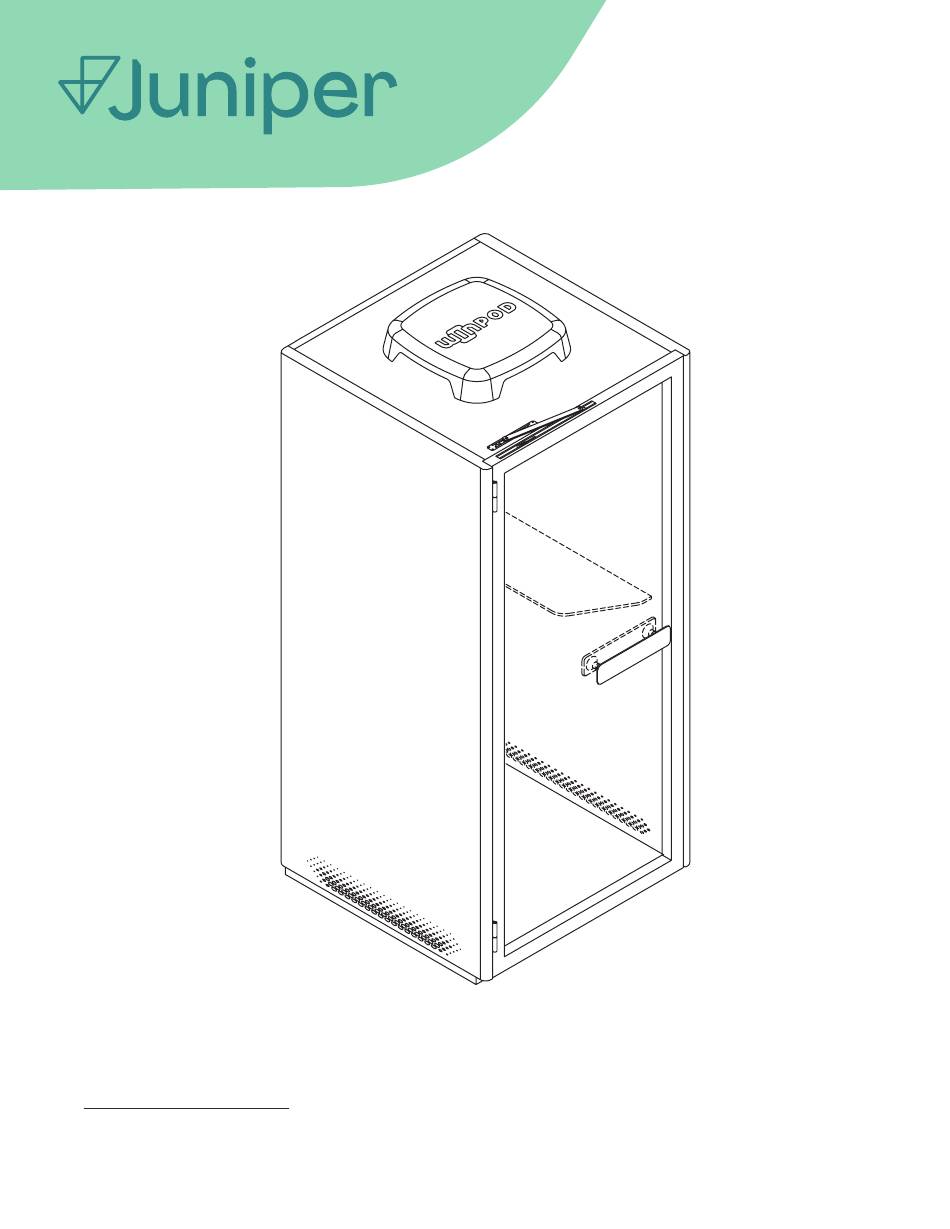

Page 1 CPOP FLEX Phone Booth General Installation Guide...
Page 3 Parts List Code Qty. Description Right Panels (External & Internal) Left Panels (External & Internal) Top Panels (External & Internal) Top Cover and Fan Box Back Panels (External & Internal) CPOP Glass Swing Door Base Frame w/ Side Step Door Handle Concealed Door Closer Table Set (Top with Bracket) Reinforce "L"...
Page 4 1 | Attach Reinforce L–Brackets to Base Frame Insert L–brackets into small openings on both left and right side of base. Secure L-brackets from underneath base using cap screws. Note: Bring data and power cables out from bottom of base through backside cutout.
Page 5 2 | Set Base Frame to Final Position Set base frame to ﬁnal position before setting up the pod. If positioning pod next to a wall, base needs to sit 6 inches from the wall. Adjust all four foot caps for leveling and level the base before moving forward with installation.
Page 6 3 | Secure External Side Panels Remove plastic wrap from panels. Set external panels on ﬁrst tier of base frame and secure using cap screws. Left Side Right Side Front Side...
Page 7 4 | Secure External Back Panel Remove plastic wrap from back panel. Set external back panel on ﬁrst tier of base frame. Feed base wires through bottom of back panel and secure to both side panels using cap screws. Note: Use a right-angle drill attachment to secure back panel to left side panel.
Page 8 5 | Secure External Top Panel Separate external and internal panels. Remove plastic wrap from external top panel and set on top of all side panels and secure. Note: Pull back insulation from inside of external panel and secure to back panel using cap screw. Then, secure side panels to top panel using cap screws with hex nuts.
Page 9 6 | Secure Fan Box and Top Cover Using provided screws, scure both fan box and fan box top cover to pod.
Page 10 7 | Connect Top Internal Panel Cables and Secure Run LED light wires through top panel and connect to internal panel. Press back panel into place and make sure magnets snap into place on all sides. NOTE: Ventilation wires have to sit correctly for top panel magnets to catch. Sensor Detail: L LED Light...
Page 11 8 | Connect Internal Back Panel Cables and Secure Bring internal back panel into pod at an angle. Connect pod cables to internal back panel, run data cable through back panel, and press back panel into place. Make sure magnets snap into place on all sides.
Page 12 9 | Secure Table Bracket Align table bracket to pre-drilled holes on internal walls. Secure using screws...
Page 13 10 | Connect Internal Right Side Panel Bring internal right panel into pod. Press right side panel against wall, sliding over table bracket. Make sure magnets snap into place on all sides. Front Side...
Page 14 11 | Secure Glass Swing Doo r Bring internal left panel into pod. Press left side panel against wall and make sure magnets snap into place on all sides. Front Side...
Page 15 12 | Secure Table Top Set table top on bracket and align with pre-drilled holes. Secure using screws. NOTE: Use a right-angle drill attachment to help secure table bracket. Front Side...
Page 16 13 | Secure Glass Swing Door Remove plastic wrap from door. Double check leveling to pod. Slide door hinge barrels through top and bottom hinge pins located on pod frame. Glass door hinge barrels will sit ﬂush with frame hinge barrels.
Page 17 14 | Install Door Handle Insert plastic caps inside each handle raiser. Align interior and exterior handle raisers to pre-drilled holes in glass door and secure using screws on opposite corners. Using the magnet provided, place metal plates onto handles. Raisers Metal Plates...
Page 18 15 | Secure Concealed Door Closer Slide concealed door closer from top panel over to door. Secure using screw.
Page 19 OPTIONAL | Adjust Closing and Latching Speed Door closer speeds have been adjusted when leaving factory. In case of interference from external factors such as door and environment, speed of door closing device needs to be adjusted appropriately. Closing speed valve (valve 1) should be adjusted ﬁrst and then latching speed valve (valve 2).
