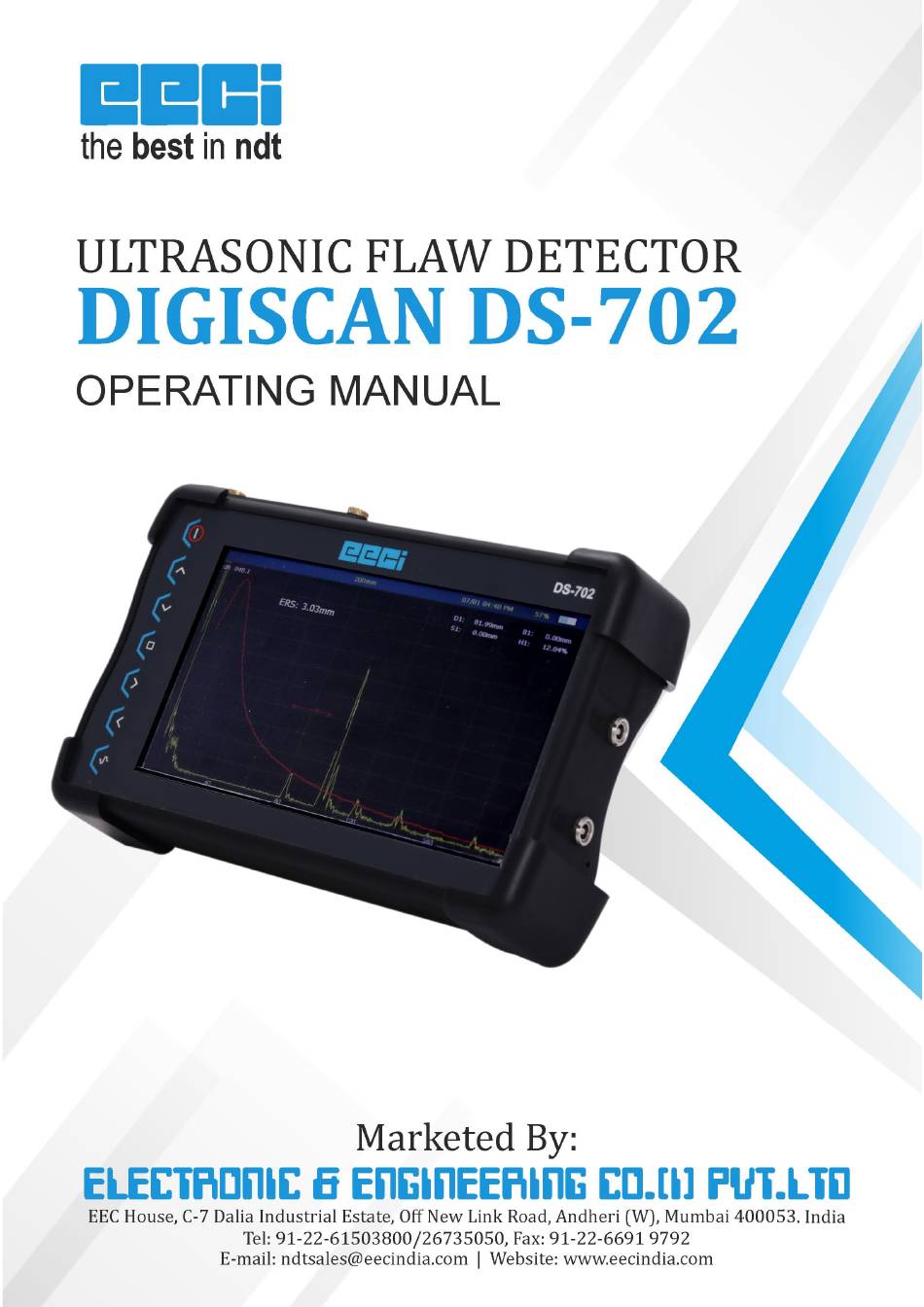

EECI DIGISCAN DS-702 Operating Manual

Ultrasonic flaw detector
Hide thumbs Also See for DIGISCAN DS-702:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGISCAN DS-702 and is the answer not in the manual?

Questions and answers

Related Manuals for EECI DIGISCAN DS-702

Summary of Contents for EECI DIGISCAN DS-702

  • Page 2 SUPERVISOR. SUCH INDEPENDENT VERIFICATION OF PROCEDURES BECOMES MORE IMPORTANT AS THE CRITICALITY OF THE APPLICATION INCREASES. EECI RESERVES THE RIGHT TO MODIFY ALL PRODUCTS WITHOUT INCURRING THE RESPONSIBILITY FOR MODIFYING PREVIOUSLY MANUFACTURED PRODUCTS. EECI DOES NOT ASSUME ANY LIABILITY FOR THE RESULTS OF PARTICULAR INSTALLATION, AS THESE CIRCUMSTANCES ARE NOT WITHIN OUR CONTROL.
  • Page 3 IT IS ALSO RECOMMENDED THAT THE SERVICE OF THE EQUIPMENT BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY. IT IS ALSO ESSENTIAL THAT THE PERSONNEL ATTEMPTING TO CALIBRATE IS FULLY CONVERSANT WITH THE PROCEDURES. EECI WILL ASSIST YOU WITH YOUR TRAINING NEEDS. CAUTION DO NOT PLUG/UNPLUG THE BATTERY CHARGER TO DS702 WHEN CONNECTED...

  • Page 4: Table Of Contents

    _____________________________________________________ Table of Conetents ______________________________________________________ 1. Introductions........................5 1.1 Introduction........................5 1.2 General..........................5 Operator Training......................5 Technical Requirements....................6 1.5 Accessories........................6 Features........................6 Standard Software Features....................7 Hardware Overview......................8 Functions........................8 Top View Connections.....................8 Side View Connections....................9 Instrument Stand......................9 Indicators........................9 Connect Power Source....................9 2.7 USB..........................9 2.8 PC..........................10 MicroSD Card Installation ...................10 Powering The DS-702...

  • Page 5: Introductions

    The DS702 ultrasonic flaw detector is designed to perform non destructive inspections on industrial and commercial materials.Only use the DS702 unit with an external charger approved by EECI to charge the batteries.

  • Page 6: Technical Requirements

    1.4 Technical Requirements Every ultrasonic test is subject to specific technical test requirements. The most important ones are: - the definition of the scope of inspection - the choice of the appropriate test method - the consideration of material properties It is the task of the those with overall responsibility for testing to ensure that the operator is fully informed about these requirements.

  • Page 7: Standard Software Features

    1.7 Standard Software Features DYNAMIC DAC /TCG : • Calculates & displays tolerance curves in dB levels compared to a DAC reference curve. Also allows to change in DAC pattern against Gain & range functions. The peak of A scan echoes used for plotting DAC can be marked &...

  • Page 8: Hardware Overview

    _____________________________________________________ 2. Hardware Overview ______________________________________________________ 2.1 Key Functions Power key Up key Down key Enter key Right key Left key Gain key Power key : Press power key for few milliseconds to On/Off the instrument. Press power key for 5sec to hard reset the instrument . 2.

  • Page 9: Side View Connections

    2.3 Side View Connections SIDE VIEW SIDE STICKER TX : Transmit / Receive transducer connector RX : Receive transducer connector 2.4 Instrument Stand To open the stand press on the sides and pull to release it from the clip. Extend the stand fully to lock into place. To close the stand gentaly push the stand black into the body till you hear a click sound.

  • Page 10: Microsd Card Installation

    2.8 PC (USB C-TYPE) USB connector for PC communication. 2.9 MicroSD Card Installation Gently loosen the two screws & open the top door to access the microSD card. Insert the microSD card into the slot lable facing front and gently push down until it clicks into place.

  • Page 11: Powering The Ds-702

    If charge status LED goes from blinkng to solid Green that indicates that the battery is completely charged. It is recommended to use only EECI supplied chargers for optimum charge time and battery life. CAUTION Do not open ,crush or perforate batteries: doing so could cause injury.Keep batteries away from fire...

  • Page 12: Power Level Indicator

    Power adapter is connected, Battery charge level, remaining operating time in hours (approx. Level) Warning: To connect the charger CAUTION If an unauthorized power supply cord is used to power the instrument, EECI cannot guarantee the electrical safety of the equipment.

  • Page 13: Software Interface

    _______________________________________________________________________ 4. Software Interface ________________________________________________________________________ Gain Setting Battery Indicator Trignometric Sub menu Parameters ASCAN Grid Main menu Alarm Indicator 4.1 Full Screen Mode Double press to Enter key to enter into the full screen mode also revert from full screen to normal mode.

  • Page 14: Menu Contents

    4.2 Menu Contents DS702 is simple in performing operations. Main menu shwon at bottom side of the screen, by using left / right arrow key we can select the main menu. Sub menus of the selected main menu are shown vertically on left side of the screen. Using up/down arrow key we can select the sub-menu's.

  • Page 15: To Change The Value Of Parameters

    4.2.a To Change The Value Of Parameters Enter key is used to modify the parameter values or acknowledge the entry. • Up/Down key use for increment/decrement parameters value. • Right/Left key use for selecting the digit to change parameters value. •...

  • Page 16: Software Features & Options

    ____________________________________________________________ 5. Software Features & Options _____________________________________________________________ Function group BASE • The function group BASE enables you to make the basic adjustment of the display range.The display on the screen must be adjusted for the material to be tested (velocity) and for the probe (probe delay) used.
  • Page 17 Function group MEASURE • When MEASURE mode is active and gate 1 is on echo,H1 (height of echo) S1 (surface distance), B1 (beam path), D1 (depth) should be mdisplayed onscreen. When angle is zero, H1 and D1 should be displayed. Same for GATE2 on echo, H2 (height of echo) S2 (surface distance), B2 (beam path), D2 (depth)should be displayed screen.
  • Page 18 Function group DISPLAY • Brightness This key can be used to vary the display brightness. Envelope Toggled between On/Off. ASCAN Freeze Freezes A-Scan display. In freeze condition, all the keys are locked Zoom Toggled between Gate 1 /2 / 3 & Off. Filled ASCAN Toggled between On/Off grid.
  • Page 19 Function group DAC/ TCG • To enable the DAC curve. DAC Type To select DAC Menu, select static or dynamic DAC. Offset 1 To set the multiple curves set at particular gain -20db to +20db or %. Offset 2 To set the multiple curves set at particular gain -20db to +20db or %. G1 Start For selection of echoes.

  • Page 20: Individual Function Description

    _____________________________________________________________ 6. Individual Function Description _____________________________________________________________ 6.1 Function Base BASE Velocity Probe zero Range Delay Setting Velocity • Select Base function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub-menu of Velocity. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value.
  • Page 21 6.2 Function Pulser PULSER Damp Probe Mode Pulser Type Frequency Impulse Energy(Volts) Setting PRF • Select Pulser function.Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub-menu of PRF. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value.
  • Page 22 Setting Impulse • Select Pulser function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub-menu of Impulse. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value. For coarse setting shift cursor on 2 digit then increase/decrease the value.
  • Page 23 6.3 Function Receiver Receiver Enhance Filter Rectification Reject,% Set Auto Auto Setting Enhance • Select Base function.Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub-menu of Enhance. Press Enter key to edit parameter. For setting the parameters press Up/Dn. It is Toggled between OFF, HIGH, MID and LOW.
  • Page 24 Setting Rectification • Select Receiver function.Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub-menu of Rectification. Press Enter key to edit parameter. For setting the parameters Up/Dn. for RF, Rectified – Full / +ve / -ve selection. RF (radio frequency) –...
  • Page 25 Setting Auto XX, % : • Select Receiver function.Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub-menu of Setting Auto %. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value. For coarse setting shift cursor on or 4 digit then increase/decrease the value.
  • Page 26 6.4 Function Measure MEASURE Angle Thickness X VALUE DIAMETER SKIP DISTANCE Setting Angle • Select Measure function.Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Angle. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value.
  • Page 27 6.5 Function Auto Cal AUTO.CAL CALIBRATION CAL.TYPE SELECT ECHO CALIBRATE START THICKNESS Setting CALIBRATION • Select Calibration function.Press Left/Right key to select main menu. By using Up/Dn arrow key select Sub-menu of Auto cal. Press Enter key to edit parameter. For setting the parameters press Up/Dn.
  • Page 28 With Auto Calibration there are 2 options in Cal Type 2. Velocity. This will calibrate Velocity & Probe • zero both. • Enter the thicknesses of the calibration block.Position the Gate1 on the 1 Calibration Echo & Press Select Echo to record the 1 calibration echo.
  • Page 29 • Position the Gate1 on the 2 Calibration Echo & Press Select Echo to record the 2 calibration echo. This will show the screen as given above.After that there is no choice to select Echo. Press Calibrate option shows below screen After pressing Calibrate, calibration process is carried •...
  • Page 30 6.6 Function Gate GATE Gate1/2/3 / IF STATUS Start Width LEVEL ALARM MODE Setting Gate • Select Gate function.Press Left/Right key to select main menu. By using Up/Dn arrow key select Sub-menu of Gate. Press Enter key to edit parameter. For setting the parameters press Up/Dn. The gate can be toggled between Gate1/ Gate2 /Gate3 &...
  • Page 31 Measurement functions are displayed when echo is on the gate. This is used for flaw measurements. Measurement functions are displayed when echo is not on the gate. This is used for decoupling measurements. – Disable With off selection, gate will disappear. WT Alarm When WT alaram is activated, a marker appears on the gate to visually indicated the current settings.

  • Page 32: Function Memory

    6.7 Function Memory MEMORY function is used to save and recall (Load) the calibration set.The recalled set will be seen when 'DISPLAY' function key is pressed.Calibrate the instrument. Do the required setting. Memory View Calset. Save Calset View Ref. Save Ref VIEW CALSET •...
  • Page 33 Setting Delete • By using Up/Dn key go to the Delete option, Screen will display to confirm the entry. Select YES and the setting will be deleted from the list. Setting Delete All • By using Up/Dn key go to the Delete All option, Screen will display to confirm the entry. Select YES and the setting will be deleted from the list.
  • Page 34 Enter calset name by using alphanumeric keypad. • View Ref. • Select Memory function.Press Left/Right key to select main menu. By using Up/Dn arrow key select Sub-menu of View Ref. Press Enter key to edit parameter. For option selections press Up/Dn. This function is used to save and recall the A scan frame, DAC with A scan frame.
  • Page 35 Click on Parameters to view all setting para's. • Select All Ref.Echos From The List & Click To Export Button .There are three option to Export the • record : Export to PDF / Export to PNG /Export to DB. SAVE REF.
  • Page 36 • Enter Reference echos name by using alphanumeric keypad.

  • Page 37: Function Display

    6.8 Function Display DISPLAY BRIGHTNESS ENVELOPE ASCAN FREEZE ZOOM FILLED ACSAN SCHEME GRATICULE GRID STATUS GRID MODE FONT Reject Line Setting Brightness • Select Display function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Brightness. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value.
  • Page 38 ENVELOPE • Select Display function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Envelope. Press Enter key to edit parameter. For setting the parameters press Up/Dn. Envelope is selected to scan maximum height and sweep of defect with echoes. This feature draws and collects the echo envelope of the signal while also drawing the live waveforms.
  • Page 39 Ascan Freeze • Select Display function.Press Enter key to enter into the Active Freeze Mode.Press the same key to come out of the Freeze function. The Freeze function holds , or freezes the information on the screen at the moment it is activated. Once the freeze function is activated, the Pulser/Receiver of flaw detector becomes inactive and does not acquire any further data.
  • Page 40 FILLED ASCAN • Select Display function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Filled ASCAN. Press Enter key to edit parameter. For setting the parameters press Up/Dn. It can be Toggled between On/Off parameter It displays live A-scan as filled SCHEME •...
  • Page 41 6.9 Function SEETINGS SETTINGS UNIT TRIGO.PARAM. SHORTCUT CLOCK ROTATE TH RES. V-R DEP. About Cal. Validation Audio, Mute Vibrate , Mute UNIT • Select Settings function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Unit. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value.
  • Page 42 TRIGP.PARAM. • Select Settings function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Trig.Para. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value. For coarse setting shift cursor on 2nd , 3rd or 4th digit then increase/decrease the value.
  • Page 43 CLOCK • Setting Date Select Settings function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of Clock. Press Enter key to edit parameter. For setting the parameters press Up/Down or Left/Right key to increase/decrease parameters value. For coarse setting shift cursor on 2nd , 3rd or 4th digit then increase/decrease the value.
  • Page 44 ABOUT • Select Settings function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of About.This option consists of the screen 'About the DS-702'. Press 'About' key. It will show ' DS-702 Software version', company details, Equipment Software Configuration. Press on Close key to unload the function.
  • Page 45 6.10 THEME THEME CHART BACKGROUND COLOUR GRID COLOUR ASCAN COLOUR COLOUR (G1/ G2/ G3) Btn.COLOUR Btn.Txt. COLOUR Focus colour CHART BACKGROUND COLOUR • Go to the Display – Scheme – set Custome to activating the Theme settings option. Select Display function.
  • Page 46 ASCAN COLOUR • Select Display function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of ASCAN colour. Press Enter key to edit parameter. For setting the ASCAN colour shade press Up/Dn . Gate COLOUR (Gate1 / Gate2 / Gate3 ) •...
  • Page 47 Btn. COLOUR • Select Display function. Press / GateLeft/Right key to select main menu.By using Up/Dn arrow key. select Sub menu of Btn.Colour. Press Enter key to edit parameter. For setting the Btn colour shade press Up/Dn. Btn. Txt. COLOUR •...
  • Page 48 Focus colour • Select Display function. Press / GateLeft/Right key to select main menu.By using Up/Dn arrow key. select Sub menu of Focues colour. Press Enter key to edit parameter. For setting the Focus colour press Up/Dn.
  • Page 49 6.11 DAC/TCG DAC/TCG DAC TYPE OFFSET 1 OFFSET 2 START ERASE CURVE DAC MODE EDIT DAC ALARM • Select DAC/TCG function. Press Left/Right key to select main menu.By using Up/Dn arrow key select Sub menu of DAC. Press Enter key to edit parameter. For setting the parameters press Up/Dn.
  • Page 50 • Select DAC/TCG function. Press Enter key to edit parameter. Operator uses this key to select the echoes to be used for DAC plotting. ERASE CURVE • Select DAC/TCG function.Press Enter key to edit parameter. Operator uses this key to Delete the plotted DAC curve DAC MODE •...
  • Page 51 Requirements: Min. 2points, Max 10points. Different colors for multiple curves.(optional) Before recording a DAC curve the instrument must be correctly calibrated. Signals obtained from a test piece of identical material can then be compared to the curve for determination of the size of the flaw in relation to the reference reflector.
  • Page 52 6.12 Flexi DGS D','G', and 'S'of the DGS Scales stands for 'Distance', 'Gain' and 'Size'. Size refers to the diameter of a disc shaped reflector, which would produce the same indication on the screen as that of an actual discontinuity of unknown size.The DGS Scales enables one to adjust the instrument gain to an appropriate value at hich the amplitude of various size of disc shaped discontinuities and their changes with respect to increasing distance from the test surface are plotted as curves.
  • Page 53 Range: • Once the DGS scale is plotted and displayed on screen, user can change the range if required. The distance range mentioned in the below column is the distance along the beam path for normal and angle probes. The minimum and maximum range for each DGS scale is listed below. Sr.No.
  • Page 54 How to Use DGS Scales • INITIAL CHECK : For the correct use of the DGS Scale, the instrument should have a valid calibration certificate. Operation: • Before loading DGS Scale, operator has to select required colour scheme. Select required scale plot DGS as given above.
  • Page 55 Through Transmission Echo From V1 • b. For 4 Mhz Angle Probes Because of the pronounced difference in attenuation between the V1 block and the test specimen for 4 MHz Angle Probes, two curve (V1 and TL) are shown on the DGS Scale. To determine the transfer loss adjust a through transmission indication peak to coincide with V1, curve (using two identical probes across 25mm of V1 block).Without changing this gain, observe the peak of a similarly obtained indication from the test specimen.
  • Page 56 To Assess the Flaw Size In actual test, when an indication from a discontinuity appears on the screen, the height of the indication is maximized. When the peak of this indication coincides with a curve on the DGS Scale, the equivalent reflector size is that given for the curve at the top of the scale. When the peak does not coincide with any curve, but lies in between two curves, the equivalent reflector size is extrapolated from the adjacent curves.
  • Page 57 6.13 Unv. DGS UNV.DGS UNV.DGS PROBE TYPE PROBE NAME REFLECTOR TYPE REFLECTOR DIA. START WIDTH RANGE PLOT Setting Unv.DGS • Click on Univ.DGS menu it will turn “On” the sub menu for Universal DGS Testing. Probe Type: Select the Probe Type to be used. •...
  • Page 58 Probe Name: Select the actual Probe to be used. • – For Straight Beam the available options are NM-4LS, N-2LS, N-1LS, N-4LS, NM-2LS. – For Angle Beam the available options are A45-2L, A60-2L, A70-2L, AM45-2L, AM60- 2L, AM70-2L, AM45-4L, AM60-4L, AM70-4L. - For Dual Probe Type the available options are TRM-2L, TRM-4LTR-2LTR-4L.
  • Page 59 Gate Start , Gate Width • Start: It is used to change the Start position of the gate. Width: It is used to change the width of the gate. Range • It is used to Increase or Decrease the range Dynamically with Curve.
  • Page 60 Reset • It is used to Reset the values. When we press Enter by selecting Reset the graph will be erased from memory and the above screen will be displayed. The DGS will be automatically turned off. Delta VT •...
  • Page 61 6.14 AWS Start Reference AUTO XX RESET AWS Setting AWS • Select AWS function.By using UP/DOWN arrow key select Sub-menu of Start. Press Enter key to edit parameter. For setting press UP/DN. The Options given are in the range 0mm to 14999mm. Reference: Absolute instrument gain with which the maximum reference echo is set.
  • Page 62 Now Couple the Probe on test block for evaluation of Flaw. It will show you the Reading of Indica, • Attenuation, Rating for the Flaw, as shown below:...
  • Page 63 6.15 License LICENSES View Table It shows the Table of the Unlicensed things for the Mentioned Sr. No. From this window Customer can Activate the required Licensed Features with the help of Sales Support.

  • Page 64: Specifications

    _____________________________________________________________ 7. Specifications _____________________________________________________________ Display Display Type 7" high brightness LCD Display Brightness 1000 nits, variable from 0% to 100% Display Update Rate 60 Hz Range 2 to 15,000 mm, in 0.1 mm steps Velocity 250 to 16,000 m/s, in 1 m/s steps Zero Offset 0 to 1000 µs, in 0.01 µs steps Display Delay...
  • Page 65 ToF Resolution Selectable 1/0.1/0.01 mm Alarms Positive and negative threshold, wall thickness Alarm Indication Audio and visual indicators with vibration Gate Width Zoom For gates 1, 2, 3 Amplitude Measurement 0% to 110% FSH, with 0.1% resolution Measurement Rate Equivalent to PRF Automated Calibration •...
  • Page 66 Curved Surface Tube, bar Correction D1.1/D1.5 Universal DGS* FlexiDGS General Overall dimensions (W x 205 mm x 130 mm x 60 mm H x D) Construction IP 65 Compact, Rugged Molded ABS, Soft Touch Weight With Battery 1 kg Operation 5 button navigation Keypad + 1 gain key, ambidextrous operation Battery Type...
