Quick TS1 Instruction Manual

automatically rise to the set temperature
before sleep.
3)In the sleep mode, if there is no action w
ithin about 3 minutes, the unit will automa
tically shut down.
6.Temperature Settings
Temperature increase/decrease
1) Press " + " or " - ": temperature
increases or decreases by 1℃,
the screen displays the set temperature.
2) Long press " + " or " - ": the set
temperature increases or decreases
rapidly.
7.Temperature Calibration
The temperature should be recalibrated
every time the soldering tip is replaced.
1） Set the temperature at 350℃. When the
temperature is stable, use the thermometer
to measure the tip temperature and write
down the readings.
2)Long press the "+" and "-" keys at the
same time until the screen displays: 350,
indicating that the unit is in temperature
calibration mode.
Press the "+" or "-" key to select the
value and input the reading valueof the the
rmometer. After the input is completed,
long press the "+" and "-" keys to save,
when the screen displays "OK" and the
temperature calibration is completed.
4) Repeat the above steps if there's any
difference between the thermometer and
soldering iron.
Note: *It is recommended to use QUICK
191/192 to measure tip temperature.

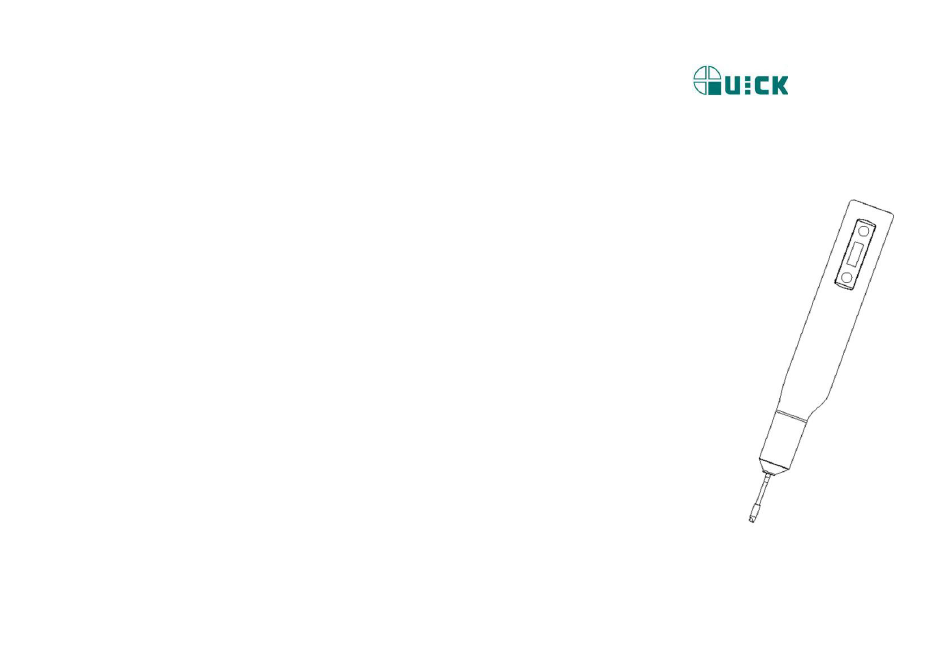

QUICK TS1
Intelligent Portable
Soldering Iron
Instruction Manual
