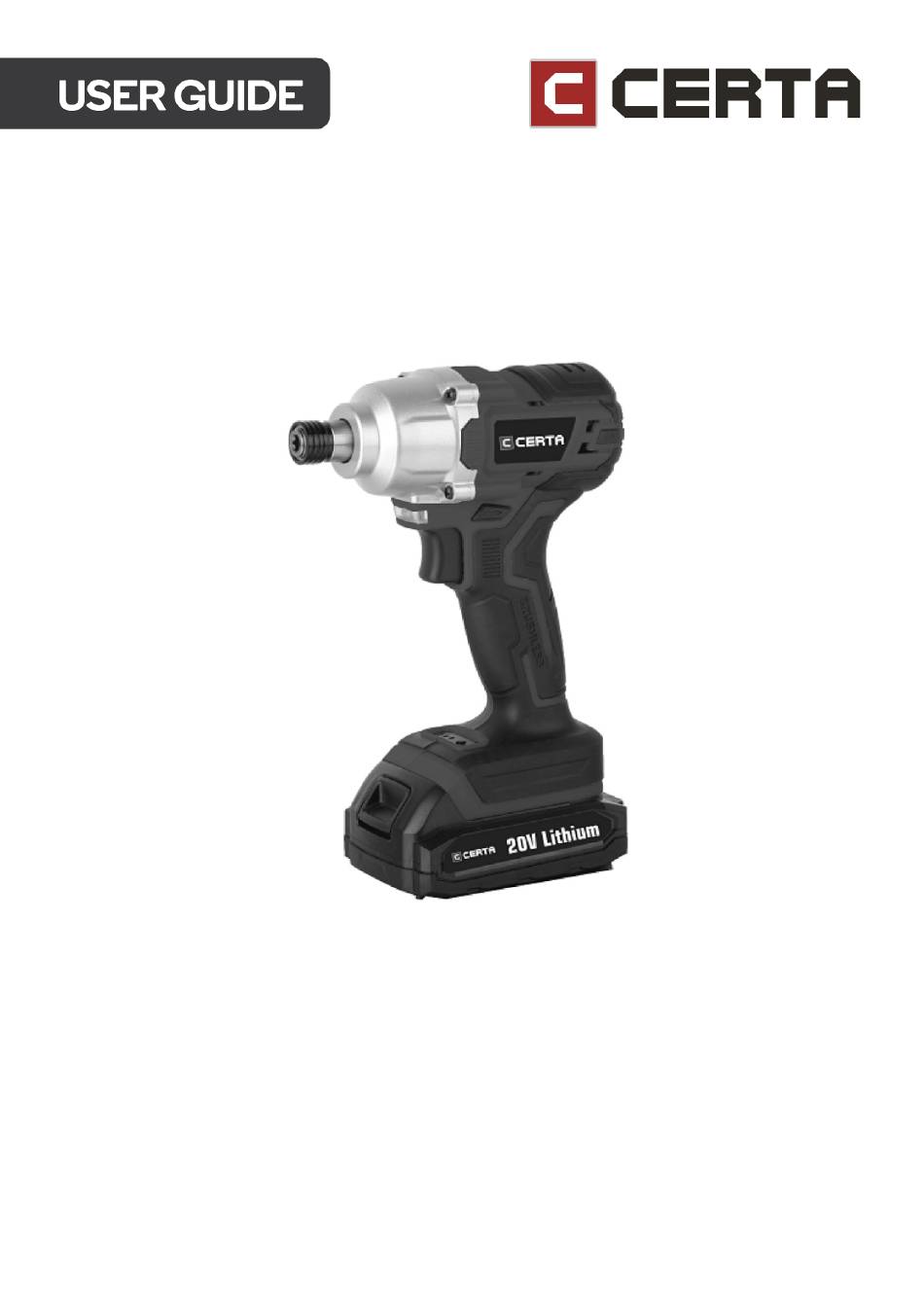

- Page 1 POWERPLUS 20V BRUSHLESS IMPACT DRIVER (SKIN ONLY) CTPIMPDRVRA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. • This cordless impact driver is designed for loosening and tightening screw connections during assembly and repairs, as well as for loosening bolts when changing tires. •... - Page 4 • Do not mistreat the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep the cord away from heat, oil, sharp edges, and moving parts as damaged cords heighten the risk of electric shock. • When using the power tool outdoors, opt for an extension cord that’s rated for outdoor use to minimise the risk of electric shock.
- Page 5 Service • Professional Maintenance: Have your power tool serviced by a qualified technician using only identical replacement parts. This ensures the tool's safety and performance integrity. • Utility Line Detection: Use suitable detectors to check for hidden utility lines in the work area or contact your local utility company for assistance.
- Page 6 Disposal and Supervision: • Dispose of used batteries promptly following local regulations. • Improper use of the battery or tool may lead to a fire, explosion, or other hazards. • Supervise the use of the battery and tool when used by children. Charging •...
- Page 7 Chart For Minimum Wire Size (AWG) Of Extension Cords Nameplate Rating Amps – 0 – 10.0 0‐25 26‐50 51‐100 101‐150 Total Extension Cord Length (ft) (0‐7.6m) (7.6‐15.2m) (15.2‐30.4m) (30.4‐45.7m) Wire Gauge WARNING: Burn hazard. Battery liquid may be flammable if exposed to spark or flame.
- Page 8 Symbols Pay attention to all the signs and symbols shown in these instructions and on your tool. Make a note of these signs and symbols. If you interpret the signs and symbols correctly, your work with the machine will be safer. Important.
- Page 9 OVERVIEW Tool holder Rotational direction switch On/off switch Handle Battery pack (sold separately) Battery charger (sold separately) Push lock button LED lamp LED battery indicator...
- Page 10 Push lock button Battery pack Battery charger Rotational direction switch LED lamp On/off switch LED battery indicator...
-
Page 11: Operation
This prevents accidental activation, which can lead to injuries. Fitting and Removing the Battery (Sold Separately) Note: This product is designed to be used with CT20VBAT20A - Certa PowerPlus 20V 2.0Ah Lithium Battery, and CT20VHTLBCHB - Certa PowerPlus 20V Rapid Charger (65W) (sold separately). - Page 12 Charging the Battery Pack (Sold Separately) Note: This product is designed to be used with CT20VBAT20A - Certa PowerPlus 20V 2.0Ah Lithium Battery, and CT20VHTLBCHB - Certa PowerPlus 20V Rapid Charger (65W) (sold separately). Remove the battery pack from the handle by pressing the push lock buttons downwards.
- Page 13 Temperature Guidelines for Charging: • Caution: Avoid charging batteries in temperatures below 4.5°C or above 40.5°C. • Optimal Conditions: Best performance and battery life are achieved when charged at an air temperature around 24°C. • Tool Temperature Limits: Charging will not occur if the tool's temperature is below 0°C or above 45°C.
- Page 14 Reversing the Rotational Direction The rotational direction switch, when not engaged by the on/off switch, is used to change the direction of the machine: • Right Rotation: For driving screws and tightening nuts, press the switch to the left stop. •...
-
Page 15: Cleaning And Care
SPECIFICATIONS Rating voltage (DC) 20 V d.c. No-load speed 0-2600 rpm Brushless Motor Max torque 280 Nm Impact rate 0-3200 b/min Rechargeable battery (LI-Ion) Nominal voltage Capacity CERTA 2.0Ah/4.0Ah Charger Rated power input Input voltage 220-240V-50/60Hz Output voltage 21V, 1.5A... - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
