DMTech D9000A SR Series Instruction Manual

Addressable Optical smoke detector D9000A SR
Type
Addressable Optical smoke detector with built isolator
D9000AI SR
Addressable Optical smoke detector
D9000A SR
D9000A SR is an addressable optical smoke fire detector, designed for use in addressable fire alarm systems that
support the DMTech communication protocol. The detector is powered by the panel and can be controlled via the
communication protocol. The D9000A SR fire detector is compatible with the B9000A base.
1. Technical data

DMTech protocol

Certified according EN 54-5, EN 54-7 and EN 54-17

LED indication 360° visibility

Built-in isolator - model D9000AI-A1R/A1S

Supply voltage from panel FP9000А

Consumption
- current consumption in Duty mode
- current consumption in, with communication

Maximum current in alarm mode - RI terminal

Connecting wires

Operating temperature

Resistance to relative humidity

Degree of protection

Joining with base B9000A

Weight (with base)

Sizes (with base)

Material (plastic) – ABS

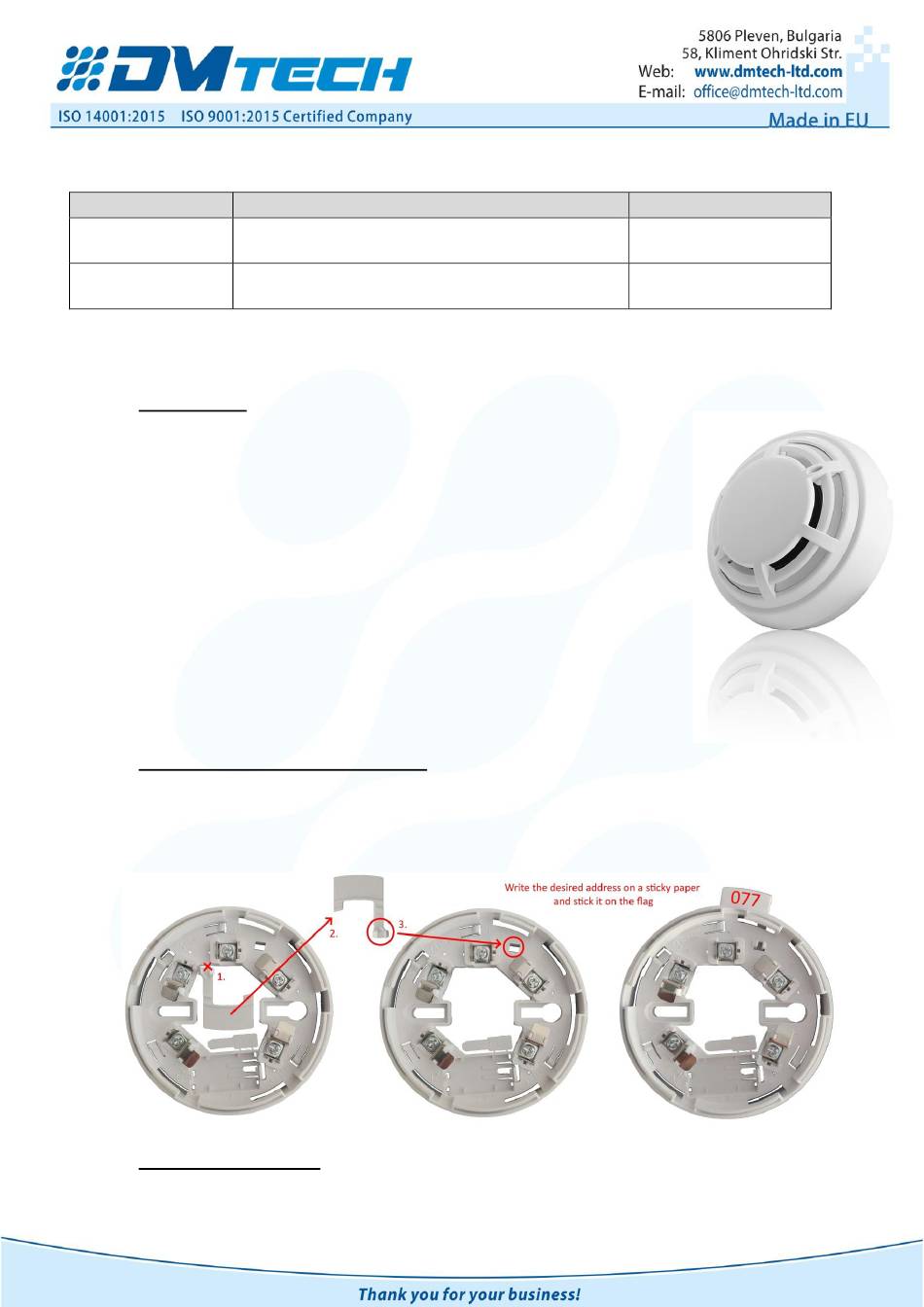

2. Mounting the flag to the base (optional)
If you would like to use the flag included in the B9000A base set, follow the instructions and
the illustrations in Fig. 1:
- detach the flag from the base (1.);
- write the desired address on a sticker and place it of the flag from the side of the plastic pins (2.);
- push the plastic pins through the designated hole (3.).
3. Mounting of the detector
- select the location (according to the project drawings) for mounting the detector;
- Install the base with suitable dowels and screws.
- connect the electrical cables according to the attached diagram (Fig. 2);
Instruction manual
Description
8-30V DC
< 500μA/28V DC
2.0mA
2.0 mA
0.5mm² - 2.0mm²
-10°C up to +65°C
(93 ± 3)% at 40°C
IP40
~100g
Ø100x52mm
Fig. 1
EN 54 Standard
EN 54-7, EN 54-17
EN 54-7
