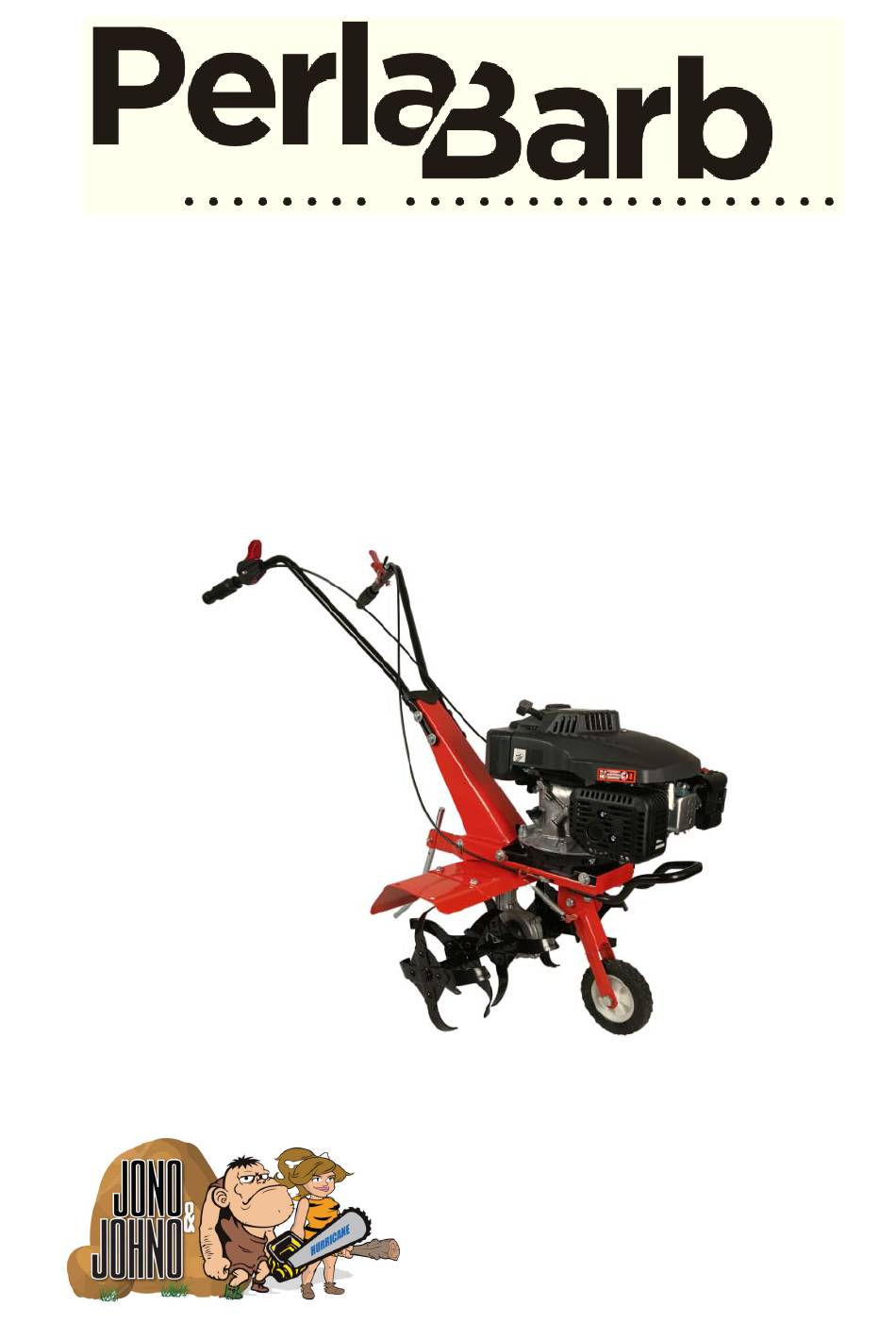

Instruction Manual
Model Description:
SKU: PBLL, 600mm Rotary Tiller with 175cc 4-stroke engine;
Note: Rotary Tiller is delivered without engine oil. Please ensure you
add SAE-10W30 engine oil before starting the engine.
PBLL
Made In China
LOCATED AT:
61 Scott St, Warracknab eal I (03) 5394 1020
I
31 Carngham Road, Delacomb e
(03) 5303 0264
OR FOR ONLINE ORDERS
I
www.chainsawspares.com.au
(03) 5303 0263
Advertisement
Table of Contents
Summary of Contents for Perla Barb PBLL
- Page 1 Instruction Manual Model Description: SKU: PBLL, 600mm Rotary Tiller with 175cc 4-stroke engine; Note: Rotary Tiller is delivered without engine oil. Please ensure you add SAE-10W30 engine oil before starting the engine. PBLL Made In China LOCATED AT: 61 Scott St, Warracknab eal I (03) 5394 1020...
-
Page 2: Table Of Contents
CONTENT 1.0 Technical Parameters..................1 2.0 Main Components..................2 3.0 Assembly......................3 4.0 Safety Standards....................6 5.0 Work on Inclined Ground................9 6.0 Oil Level Inspection..................9 7.0 Commissioning.....................10 8.0 Starting Process....................11 9.0 Operation of Clutch..................12 10.0 Normal Operation Angle................12 11.0 Maintenance....................13 12.0 Technical Data....................14 13.0 Troubleshooting..................14 14.0 Guarantee....................15 The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual. -
Page 3: Technical Parameters
1.0 Technical Parameters Model number PBLL Engine 175cc Engine Speed（rpm） 3000 Power 2.6KW Output speed（rpm） 0.8L (Unleaded) Capacity of fuel tank 0.4L (SAE10W30) Capacity of Engine Oil 4 PCS (2+1)Groups Blade type （With trimming wheel） Depth 240mm Blade Configur ation... -
Page 4: Main Components
2.0 Main Components 1、Handle 2、Clutch lever 3、Clutch cable 4、Depth bar 5、Protective device 6、Cutting knife 7、Wheel 8、Wheel support bracket 9、Engine 10、Starter 11、Fuel Tank 12、Accelerator cable 13、Accelerator... -
Page 5: Assembly
3.0 Rotary Tiller Assembly... - Page 6 Blade Assembling Cutting width 360mm Cutting width 600mm...
- Page 7 Never put your hands and feet near the rotating parts. Keep distances from the ejection opening at all time.
-
Page 8: Safety Standards
4.0 SAFETY STANDARDS Danger of burns! Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler. The unit is designed only for regular use in agriculture, forestry, and horticulture and area treatment. -
Page 9: Safety Instructions
Refuel the engine only Risk of explosion when switched off. Engine speed is fast Engine speed is slow Engine is going to be off Unleaded Fuel Engine is delivered without adding engine oil. Please ensure to add SAE-10W30 engine oil before starting the engine. Safety Instructions WARNING Read all safety warnings and all instructions, including those given in the... - Page 10 The engine must necessarily be filled with engine oil before being put into operation for the first time. Check the oil level whenever the appliance is to be put into operation. Add engine oil, if necessary. Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.
-
Page 11: Work On Inclined Ground
5.0 Work on Inclined Ground Do not work on the ground with more than 10 degree gradient. The fuel tank should stay half-filled to avoid leaking. Move the machine horizontally, do not move it up and down. Look out when changing the direction. 6.0 Oil Level Inspection Engine shipped without adding oil. -
Page 12: Commissioning
WARNING: Engine oil is a major factor affecting engine performance and service life. Additive-free and 2-stroke engine oil will damage the engine. NOTICE: For environment protecting, please properly handle with the used oil. Running with insufficient engine oil will damage the engine and void your warranty. -
Page 13: Starting Process
8.0 Starting Process Preparatory steps before starting: Before starting the engine, check all the components to see if any component becomes loose. Start the engine: 1 .Check if there is enough engine oil and fuel. Use high-quality engine oil and fuel. This is helpful for increasing the service life of the engine. -
Page 14: Operation Of Clutch
9.0 Operation of Clutch The clutch connects or cuts off the power from the engine to the Tiller Blades. When closing upon the clutch lever, the blade system starts, and the cutting tools begin to operate. When loosening the clutch, the cutting tools stop. Drawing 10 Drawing 10 10.0 Normal Operation Angle Gently press the handle, so as to make the front part of the machine rise 6 to 8". -
Page 15: Maintenance
11.0 Maintenance Keep the machine clean. Do not use chemical solvent to clean it. Eliminate the pasture or remnant of other materials. Clean the air filter every 8 working hours. Increase the cleaning frequency for places with more dust. ... -
Page 16: Technical Data
12.0 Technical Data Tiller Model: SKU: PBLL Rated Power: 2.7 kW Rated Speed: 3000RPM Displacement: 175cc Starting: Recoil Engine Oil Capacity: 0.4L, SAE 10W-30 Fuel Tank Volume: 0.8L, unleaded Gasoline Blade Diameter: 260mm Cutting Path: 360 / 600mm Declared Sound Power Level: 93.0dB(A) -
Page 17: Guarantee
14.0 Guarantee The manufacturer warrants the product 12 months from the date of purchasing, from all fabrication faults. The warranty cannot be claimed in case of normal wear. The warranty does not cover: Insufficient maintenance. An abnormal use or damage due to shocks. The mounting, adjustment and preparation of the machine.
