Mounting

JLT provided Mounting Kits: RAM®

RAM® Mount -> Computer: Use included screws and washers.

RAM® Mount + "JLT Communication Box" -> Computer:

Use included screws and washers.

Usage of thread locking products like Loctite® is recommended.

Mounting with other brands

When mounting a JLT unit to a VESA bracket, use M6 screws with correct length.

The inserting part of the screw should be minimum 5mm and must NOT exceed

6.5mm (that is 5 complete turns on the screw).

If screws are too long, build up with washers to adjust the inserting part of screw.

If this is not done and the screws are too long, they will deform the aluminum case

inwardly when applying great force.

Torque: maximum 6Nm

NOTE

Always mount strain reliefs on all cables unless Roxtec Sealing Kit is used.

If neglected, the connectors and cables will eventually fail.

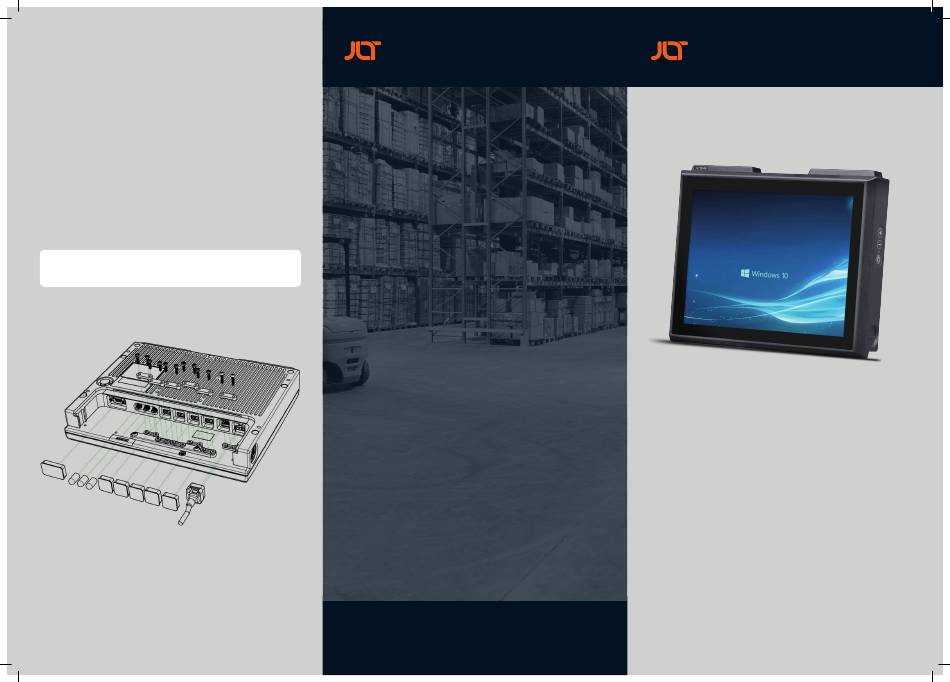

Supplied within the computers box are also:

• Cable Strain Relief (Use Torx T10 / T20 screwdriver)

• Rubber Sealing Plugs – for all unused ports

For additional accessories such as the Roxtec Sealing KIT, Keyboard + keyboard

bracket, antennas and others. Please contact your JLT Sales representative

for more information or visit jltmobile.com.

jlt_1214P_manual_A3_20200206_klar.indd 1

For further support or guidance, visit:

jltmobile.com/support

jltmobile.com

Quick Start Guide

JLT1214P

P/N 101436-4

2020-02-06 16:33
