Locker Installation & Assembly Instructions

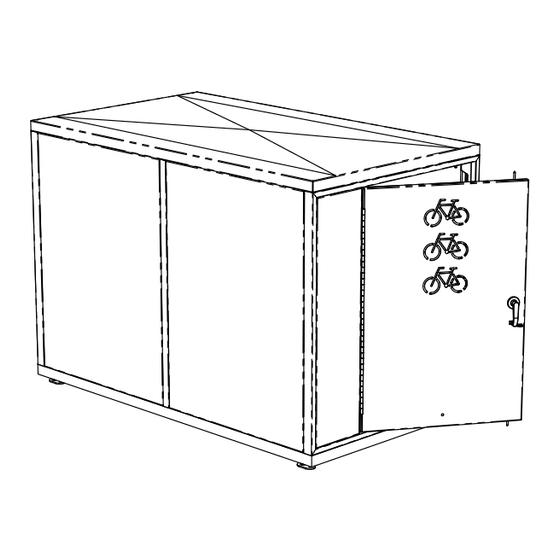

Cora Bike Rack - Double Door Bike Locker (CBL2-HD)
Cora - Double Door Bike Locker - Heavy Duty

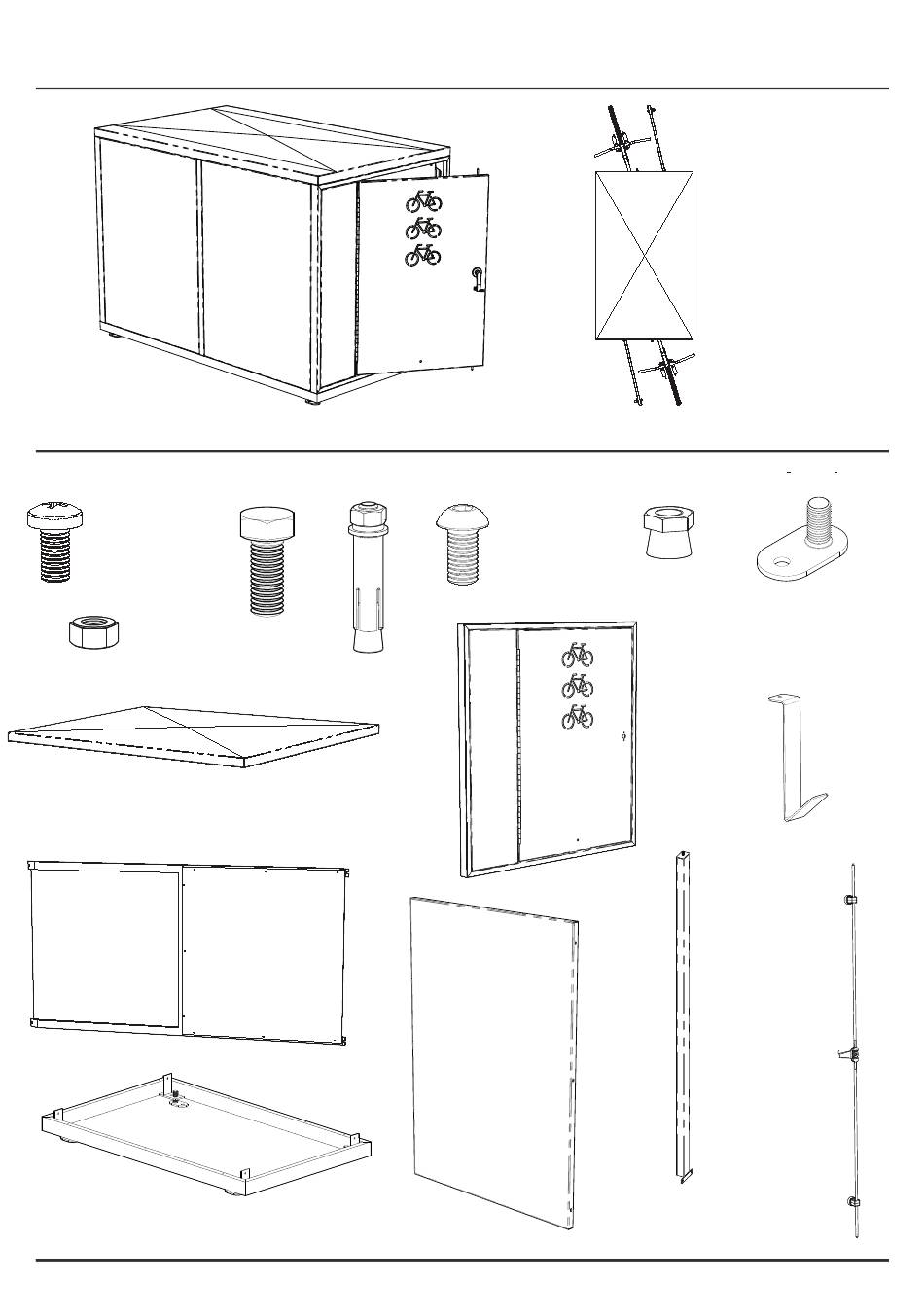

Components for Double Bike Locker used in assembly
M5 Phillip pan head
fasteners (used for
all fastening
unless noted
in instructions)
Hex Head Nut
(X2)
Locker internal
divider frame and panels
(X1 per locker)
Locker base frame
(x1) per locker, may
or may not have
levelling feet installed)
Cora Bike Rack - Australia's Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878
Hex Head Bolts
(x4)
M10 Anchor Bolts
(X4)
Locker Roof
(X1 per locker)
Locker half wall
assembly (x4)
M8 security
screws x 4
per locker for
central divider
M10 Shear nuts
(X4)
Locker door
frame assembly
(X2 one for each
end of locker)
Halfwall post x2
(x1 for left side,
x1 for right side)
Adjustable levelling foot
(x4 per base frame, may
already be installed in
base frame)
Helmet/ bag
hook (x2)
may or may
not be
included
Three point
locking mechanism
assembly and
plastic mounts
Rev 5.00 May 2023 ©
Advertisement
Summary of Contents for CORA CBL2-HD
- Page 1 Locker half wall (x1 for left side, levelling feet installed) assembly (x4) x1 for right side) Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 5.00 May 2023 ©...
- Page 2 NOTE: Ensure all feet contact with ground firmly after levelling, frame cannot rock or lean at any corner, or when fastened with anchor bolts, frame will be warped and not level and will e ect assembly of locker. Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 5.00 May 2023...
- Page 3 • After anchor bolt nut is tightened fully, install supplied shear nuts (x4 one per anchor bolt) onto top of thread • Tighten shear nuts until head snaps o Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 5.00 May 2023 ©...
- Page 4 - Side panels to roof - M5 pan head screws - Door assembly to roof - M5 CSK head screws - Hallfwall posts to roof - Hex head bolts Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 5.00 May 2023 ©...
- Page 5 • Two (x2) rod guides should also be screwed to inside face of each door • Ensure rod guides are positioned to allow lock rods to travel freely without hitting inside or edges of door Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 5.00 May 2023...
- Page 6 12. Attach helmet/ bag hook. One at each end (if supplied) Installation of the Cora Double door locker is complete PH 1800 249 878 sales@cora.com.au www.cora.com.au Cora Bike Rack - Australia’s Bike Parking Experts - WWW.CORA.COM.AU - PH 1800 249 878 Rev 5.00 May 2023 ©...
