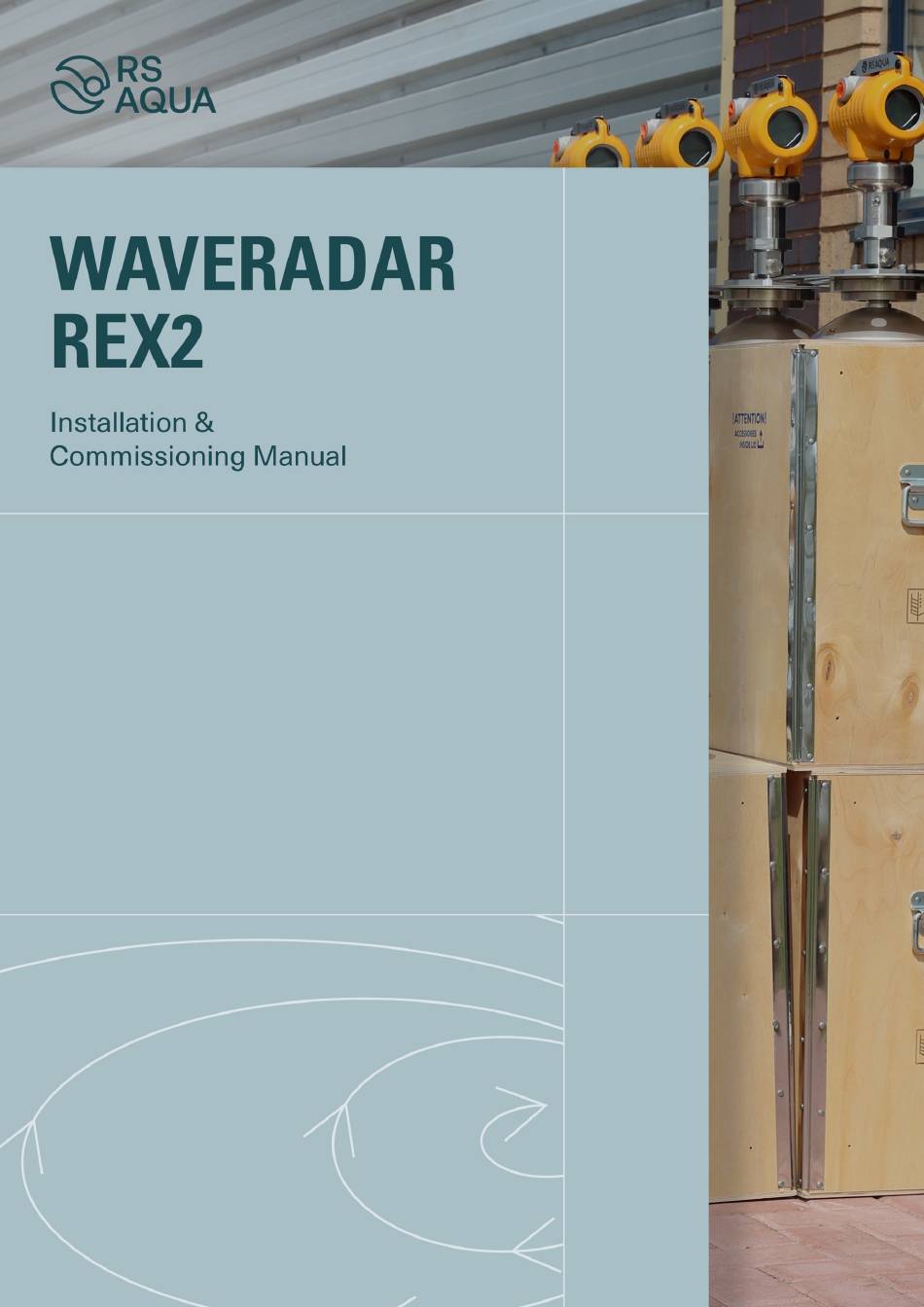

RS Aqua WAVERADAR REX2 Installation & Commissioning Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RS Aqua Ltd
WaveRadar REX
Operating Manual Issue A – May 2020
2
Page 1 of 38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WAVERADAR REX2 and is the answer not in the manual?

Questions and answers

Related Manuals for RS Aqua WAVERADAR REX2

Summary of Contents for RS Aqua WAVERADAR REX2

  • Page 1 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Page 1 of 38...

  • Page 2: Table Of Contents

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Contents INTRODUCTION ............................4 General ..............................4 Features / System Architecture ....................4 WARNING! ............................5 Applicability of Rosemount Tank Radar Certification to WaveRadar REX ....6 SPECIFICATION ............................6 UNPACKING ..............................
  • Page 3 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 6.5.1 Cable Selection ........................... 23 6.5.2 Gland Selection .......................... 23 6.5.3 Use of Conduit ..........................23 6.5.4 Electrical Connection ....................... 23 6.5.5 Grounding ............................. 26 6.5.6 Cable Shielding ........................... 26 6.5.7...

  • Page 4: Introduction

    The WaveRadar REX² is the fourth generation, non-contact wave, tide and air-gap measurement instrument to be developed by the partnership of RS Aqua and Rosemount Tank Gauging. The REX² builds on a quarter century of development and continues the reputation for build quality, accuracy and reliability.

  • Page 5: Warning

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 1.3 WARNING! ⚠ Failure to follow safe installation and service guidelines could result in death or serious injury. Make sure the transmitter is installed by qualified personnel and in accordance with •...

  • Page 6: Applicability Of Rosemount Tank Radar Certification To Waveradar Rex

    RS Aqua’s WaveRadar REX is a variant of the Rosemount™ 5408 Level Transmitter (Modbus), manufactured by Rosemount Tank Radar AB under exclusive license for RS Aqua Ltd. This transmitter has been subject to various third-party approvals including FM-US/FM- C/ATEX/IECEx, EMC, CE, Radio Equipment Directive, FCC and IC approvals with respect to radio (USA and Canada).
  • Page 7 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Measurement datum Lower surface of threaded flange mount Materials (external) Stainless steel 316 grade PTFE (Teflon) Materials (WeatherShield) ABS with Trimite ESD Coating Vibration resistance 2 g at 10-180 Hz Ref: IEC 61298-3, level “field...

  • Page 8: Unpacking

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 3. UNPACKING The WaveRadar REX is supplied pre-assembled in a plywood transit case, treated to standard ISPM15. 1. Remove lid by first removing 6 marked screws. In the underside lid storage, you will find accessories and documentation.

  • Page 9: System Description

    The data output is MODBUS RS-485. System integration will depend on the data processing / data logging architecture. If required, RS Aqua supply an Advantech RS-485 to USB converter. Many types of signal converter are available and can be used at the user’s discretion.

  • Page 10: Measurement Method

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Figure 2: LCD Display Typical start up sequence is shown below: Figure 3: Typical Start-Up Sequence 4.3 Measurement method The WaveRadar REX is a two / three-wire transmitter for continuous level measurements over water.

  • Page 11: Data Output Rate And Measurement Synchronisation

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 The frequency of the reflected signal is subtracted from the frequency of the signal transmitted at that moment, resulting in a low frequency signal which is proportional to the distance to the product surface.

  • Page 12: Data Communications

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Illustrated over time: Faster data rates of up to 10 output bursts per second can be configured, but there may be some timing offsets incurred within each 1 second period.

  • Page 13: Waveradar Rex

    0000. This is the only status indication. In the event of any permanent or regular change of the status word from normal, please contact RS Aqua Ltd. * The REX message string has 2 null bytes appended to the end of each string, sometimes known as dribble bytes.

  • Page 14: Using Waveconfigurator

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 The following diagram demonstrates hold off and reference height: Figure 5: Measurement Parameters Each WaveRadar REX is supplied with a setup application, WaveConfigurator. This can be used to set the range, burst output rate, hold off distance and has a diagnostics function.

  • Page 15: Connection

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 5.1.1 Connection 1. Check comm port and baud rate are correct. If you are not sure, baud rate and comms settings display on WaveRadar REX² LCD during start up. The configurator and Rex 4800 by default.

  • Page 16: Device Information

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 3. Sampling Frequency is the output rate from the WaveRadar REX² and can be configured between 2-10Hz. Up to 5Hz, the output is synchronised with the range measurement and this is the recommended operating mode.

  • Page 17: Spectra Graph

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 5.1.5 Spectra Graph 1. The Spectra Graph is useful for diagnostics and allows the user to visualise the returns from the radar. 2. The hold off distance is shown as a blue dotted line.

  • Page 18: Transferring Datum

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 The WaveRadar REX should be mounted directly over the water mass being measured with a clear view of the water. Any obstructions have the potential to be detected by the WaveRadar which may lead to invalid measurements.

  • Page 19: Fit The Waveradar To A Frame

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 If the WaveRadar REX needs to have the datum match that of a standard legacy WaveRadar REX, the calibration offset should be set to -0.102. This effectively moves the datum upwards by 102mm.

  • Page 20: Adjusting The Horizontal Alignment

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 6.3 Adjusting the Horizontal Alignment Loosen the M8 screws until the antenna can pivot. Rotate the antenna so the air purge connection is directed toward the host platform/structure.
  • Page 21 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Gradually tighten the M8 screws, then remove the level Mount the transmitter head. Align the marking on the sensor module with purge connection. Plug and seal the entry with the supplied blind plug and bonded seal.

  • Page 22: Mounting Frames

    WaveRadar REX. The mounting plate is thinner and has only 4 holes due to the reduced weight of the instrument. The RS Aqua GR1 frame is available for use with the WaveRadar REX². 6.5 Electrical Installation ⚠ WARNING: Failure to follow safe installation and service guidelines could result in death or serious injury.

  • Page 23: Cable Selection

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 6.5.1 Cable Selection For the signal RS-485 bus, use shielded twisted pair wiring with a characteristic impedance of 120 Ω (typically 24 AWG). For the power supply, use 24-14 AWG wire. Twisted pairs and shielded wiring are recommended for environments with high EMI (electromagnetic interference).
  • Page 24 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Remove the plastic plugs. If only one gland is being used, the other should be blanked appropriate to local regulations. Pull the cable through the cable gland/conduit. (2) Identification of...
  • Page 25 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Tighten the cable gland. Apply PTFE tape or other sealant to the threads. Make sure to arrange the wiring with a drip loop. Attach and tighten the cover. Verify the cover jam screw housing is completely threaded into the housing.

  • Page 26: Grounding

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 For explosion-proof/flameproof installations only, turn the jam screw counterclockwise until it contacts the cover. Turn the jam screw an additional ½ turn counterclockwise to secure the cover Connect the power supply.

  • Page 27: Common Signal Reference Ground For Rs-485

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 A. Insulate shield and drain wire B. Minimize distance C. Trim shield and insulate exposed drain wire D. Connect drain wire to the power supply ground D. Connect drain wire to the power supply ground Note: Do not ground the shield and its drain wire at the transmitter.

  • Page 28: Fitting The Weathershield

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 A. "A" line B. "B" line C. RS-485 Bus D. Common signal reference ground E. Power supply F. Modbus RS-485 MA - (RX/TX+) *** G. Modbus RS-485 MB - (RX/TX-) *** H.
  • Page 29 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 After completing the cable termination and ensuring the terminal cover is secure, fit the 2 shells to the housing Fit the top clip: slide on from the top and line up fixing holes.

  • Page 30: Maintenance

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 The screw and barrel combination should be tightened but must not be over tightened - you will hear the thread click as it reaches full extent. 7. MAINTENANCE 7.1 Parabolic Antenna...
  • Page 31 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Remove the lock nut (if applicable). Mount the O-ring. Mount the antenna adapter on flange. Ensure antenna adapter fits tightly to the flange. Page 31 of 38...
  • Page 32 RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 The M20 adaptor (D) will be fitted to the antenna feeder when supplied. Remove this item. Push the antenna / feeder through the adaptor. It will be a firm fit if the O rings are new, apply a steady firm pressure.

  • Page 33: Replacing The Lcd Display

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Tighten the locking grub screw. 7.2 Replacing the LCD Display *BEFORE OPENING THE HOUSING, ENSURE POWER IS REMOVED* Screw in the locking hex screw. Unscrew and remove the cover.

  • Page 34: Replacing The Terminal Block

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 Release and remove the display. To replace, gently but firmly place the new display in the recess and ensure tabs click home. 7.3 Replacing the Terminal Block *BEFORE OPENING THE HOUSING, ENSURE POWER IS REMOVED* Remove the terminal cover.

  • Page 35: Routine Maintenance

    RS Aqua Ltd WaveRadar REX Operating Manual Issue A – May 2020 7.4 Routine Maintenance The WaveRadar REX requires little maintenance and does not require any periodic calibration due to the design, construction and operation of the microwave module. We recommend that the instrument is inspected monthly and the following items are checked for damage, corrosion and security: •...

  • Page 36: Further Troubleshooting

    Data is static or flat topped or has Check installation incorrect gaps Check status word Check signal converter No LCD Display Data being transmitted, but no Check LCD module is seated display correctly *Please contact RS Aqua for further assistance if required. Page 36 of 38...

  • Page 37: Warranty

    “Goods” means the goods (including any software and documentation) described in the order acknowledgement supplied to the buyer by RS Aqua Ltd; “Contract” means the RS Aqua’s standard terms and conditions of sale.

  • Page 38: Drawings

    Upgrading the original Goods with new software does not extend the warranty period from the original expiry date. DRAWINGS Schedule of Drawings: 10.1 WaveRadar Rex2 Overall Dimensions 10.2 Mounting Plate Dimensions 10.3 Emerson System Control Drawings Page 38 of 38...
