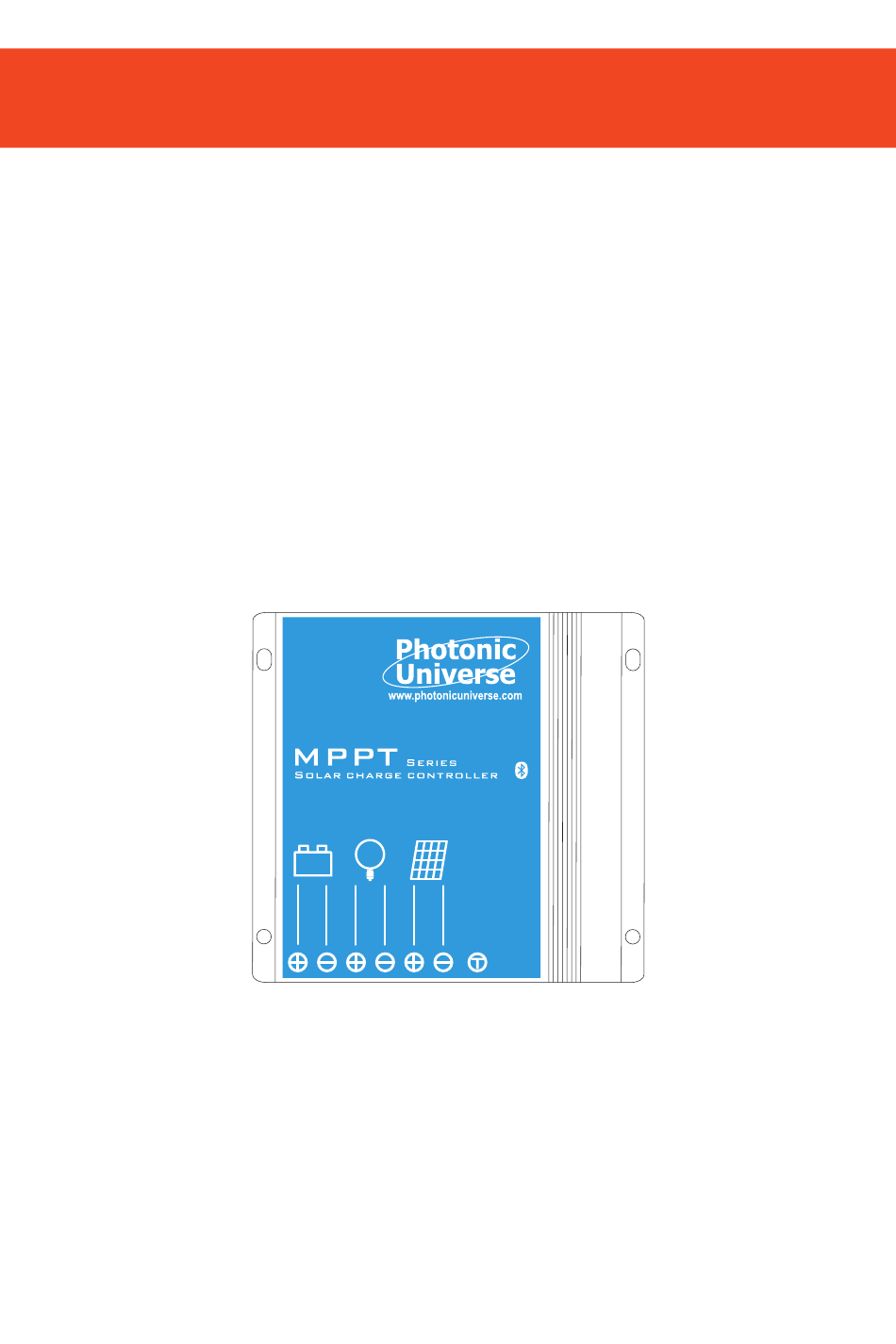

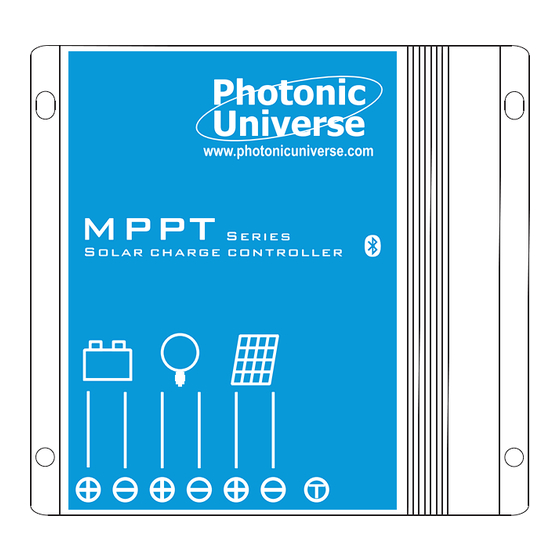

- Page 1 LUX WP series Bluetooth Communication MPPT solar charge controller 10A/15A/20A User Manual CE, UKCA, Rohs, ISO9001:2015 Subject to change without notice...
-
Page 2: Installation
Dear Clients, Thank you for selecting the LUX WP series solar controller. Please take time to familiarise yourself with this user manual, as it will help you take full advantage of the controller's features. This manual provides important information for installing, using, and programming the solar controller. -
Page 3: App Installation
Solar charge controller LUX WP series User Manual 5.App installation 6 BlueTooth Search for "solarlife BT" in Google play or "solarlife" in The controller has Bluetooth communication function, Apple store and download and install it. For detailed the Bluetooth module of the controller can be connected to a mobile phone after installing the APP. - Page 4 Solar charge controller LUX WP series User Manual 7. Load Output Timer Modes b. Battery capacity control Low voltage disconnect setting range: Soc1~Soc5 LUX WP series controller has advanced day/night Low voltage protection range time control functions. The modes of lighting can be 11.0~11.6V...
-
Page 5: Safety Features
Solar charge controller LUX WP series User Manual 9. Safety Features 8.LED indicators, Faults & Alarms Solar terminal Battery terminal Load terminal Reverse Protected Protected Protected polarity Short Switches off Protected Protected circuit immediately Green Over Switches off Yellow current... -
Page 6: 11.Technical Data
Solar charge controller LUX WP series User Manual 11.Technical Data Item LUX1012WP-BT LUX1524WP-BT LUX2024WP-BT Max Charging Current System Voltage 12V/24V automatic recognition Max Input Solar Power 130W 200W/400W 260W/520W Max Voltage on Batt. Terminals Battery Type Lithium, Liquid, Gel, AGM（Programmable, default: Gel）...
