Eagle Eye EC01 Installation And Quick Start Manual

Eagle Eye EC01 Encoder
Installation and Quick Start Guide (Version 1.0 16 July 2024)
The Eagle Eye EC01 Encoder is a 16 channel
HD over coax (HDoC) encoder that supports
CVBS, TVI, CVI, and AHD. It has audio (RCA)
and physical I/Os (16/4) with 4K local HDMI
output and 2MP maximum input for HD signals.
The EC01 supports the most popular versions of
HDoC but requires that the cable be copper core
RG59 or RG6.
.
1. Packing List
Table 1-1: Packing List
Component
HD Network Video Codec
Quick Start Guide
Mouse
Power Adapter
Power Cord
Terminal Block
2. Device Structure
2.1 Device Ports
Note: Different devices may have different ports
and multi-headed cables. Please refer to the
actual product.

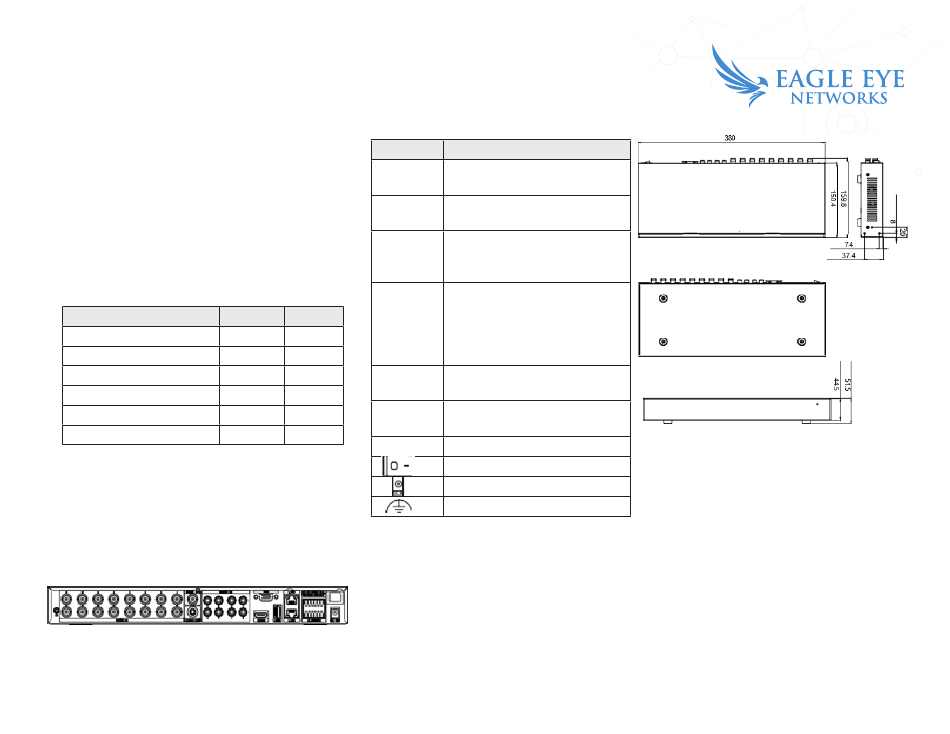

Figure 2-1: Rear Panel
•
Refer to Table 2-1 for descriptions of the rear
panel parts.
Table 2-1: Rear Panel Description
Name
VIDEO IN
Port
CVBS
OUT
AUDIO
OUT/AU-
DIO IN
LAN1/
LAN2
Quantity Remark
1
1
1 HDMI/
VGA
1 Optional
USB
1
2 Optional
Alarm I/O
2.2 Device Dimensions
Note: Different devices may have different
dimension. Please refer to the actual product.
Description
Plug in analog camera by coax-
ial line.
Output analog video signal.
Audio output/Audio input.
RJ 45 100/1000 Mbps adap-
tive Ethernet interface. LAN1 is
the default gateway and used
for external networks. LAN2 is
used for internal networks.
Video output interface
USB 2.0 port for USB flash
drive or mouse
Alarm input/ Alarm output
Power switch
DC12V
Ground
Figure 2-2: Dimensions (unit: mm)
3. Device Operation
3.1 Before Starting up the Encoder
Before starting the encoder, ensure that it is
properly connected to a power supply and
that a monitor is connected to the HDMI or
VGA interface of the encoder.
