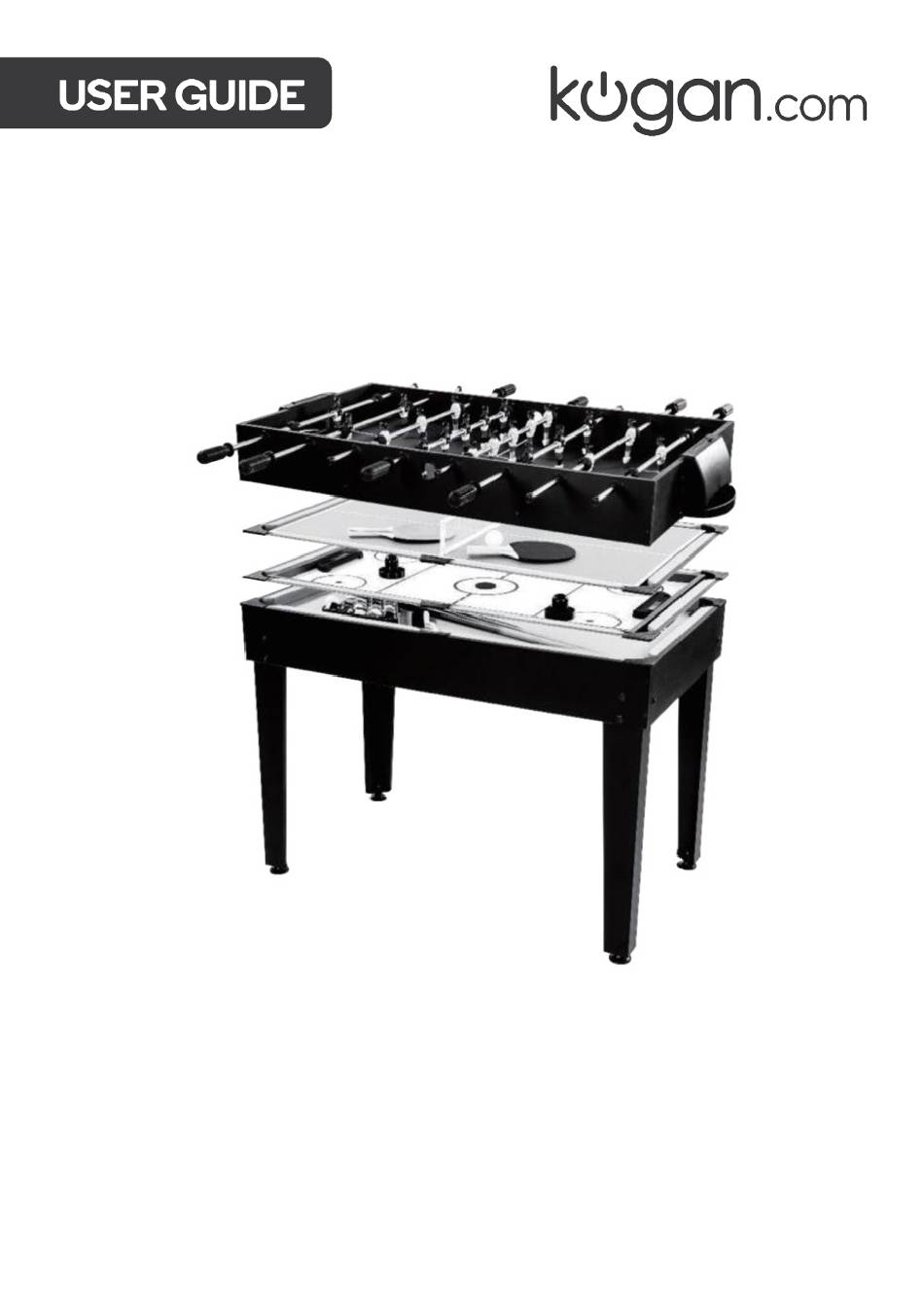

- Page 1 4-IN-1 GAMES TABLE NB151GAMETA...
-
Page 3: Safety And Warnings
SAFETY & WARNINGS Warning: • This product is not suitable for children under 3 years old. • Choking hazard - this product contains small parts that can be swallowed. • Read all instructions carefully before use and retain this user guide for future reference. •... - Page 4 COMPONENTS 1 Side Panel (x2) 2 Headboard (x2) 3 Soccer Surface 4 Support Struts (x2) 5 Air Hockey Surface 6 Legs (x4) 7 Screw (x12) 8 Washer (x12) 9 Screw (x8) 10 Screw (x8) 11 Screw (x4) 12 Allen Key 13 Screw (x26) 14 Spacer (x4) 15 Rubber Buffer (x16)
- Page 5 23 Height-adjustable Feet 22 Pool Surface 24 Goal (x2) (x4) 25 Pool Set 26 Table Tennis Set 27 Table Tennis Surface...
- Page 6 ASSEMBLY Open the box on a clean and level surface. It is recommended that two adults assist with the assembly. It is suggested to use the bottom of the cardboard as a base for the assembly. Carefully cut or tear open the four corners of the cardboard to create a flat base. Remove all parts from the box and ensure all components are included.
- Page 7 Attach a headboard (2) between the side panels and secure it with x2 screws (10) per side. Note: Do not fully tighten the screws yet. Slide the playing field (3) with the printed side down into the groove as shown in the image below.
- Page 8 10. Attach the handles (19) and rod end caps (20) to the player rods in the correct arrangement as shown in the image below. Note: To make it easier to attach the handles to the rods, gently tap them into place with a hammer. Attach the goals (24) to the headboards using x4 screws (9) each.
- Page 9 14. With two adults, lift the assembled table, turn it over, and position it in the desired location. Finally, ensure that all screws are tightened securely.
- Page 10 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
