Summary of Contents for Kogan KASWCONTRLR

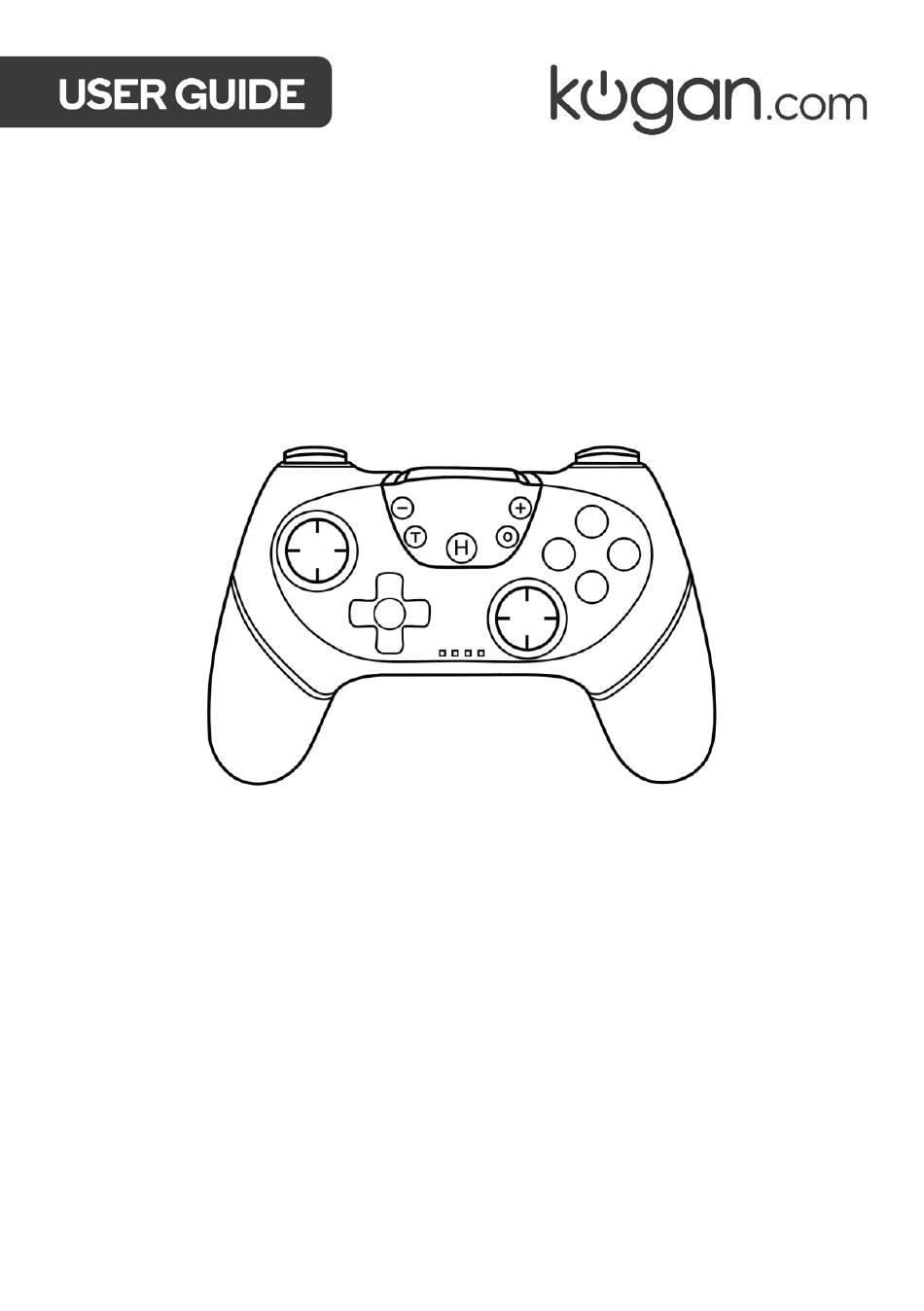

- Page 1 KOGAN WIRELESS SWITCH CONTROLLER COMPATIBLE WITH NINTENDO SWITCH/LITE/OLED KASWCONTRLR...
-
Page 3: Components List
COMPONENTS LIST • Controller • USB to USB-C Charging Cable • User Guide OVERVIEW R Button L Button ZR Button ZL Button USB-C Charging Port Home Button Button - Button + Turbo Button ABXY Buttons Screenshot Button Direction Pad Indicators Left Joystick Right Joystick... -
Page 4: Operation
OPERATION Charging • When the controller is off and connected to the adapter, the indicators will flash. • Once fully charged, the indicators will turn off. • When the controller is online and plugged into a USB port, the corresponding channel indicator will flash slowly and turn solid when fully charged. - Page 5 Bluetooth Connection Turn on the console and click the ‘System Settings’ menu button on the home page. In the next menu, click the ‘Airplane Mode’ option. Click the ‘Controller Connection (Bluetooth)’ option. Turn on the Bluetooth function.
- Page 6 Enter Bluetooth device searching mode by clicking the ‘Controllers’ button on the homepage. In the next menu, click the ‘Change Grip/Order’ option. The console will automatically search for paired controllers. Press and hold the ‘Home’ button on the controller for 3-5 seconds to enter Bluetooth pairing mode.
- Page 7 Console Mode Wired Connection Place the console into the console base and connect the controller using the USB cable. The controller will automatically connect to the console. After the USB cable is removed, the controller will automatically reconnect to the console via Bluetooth.
- Page 8 Controller Vibration • The controller has a vibration function with a pressure-sensitive motor. • The console allows manual control to turn the controller vibration function on or off. • The motor intensity can be adjusted on the Nintendo Switch platform. Adjust the motor intensity: •...
-
Page 9: Specifications
SPECIFICATIONS Voltage DC 5V Charging Time Approx. 3.5 hours Working Current <20mA Vibration Current 70-120mA Sleep Current Charging Current Approx. 180mA Battery Capacity 600mAh Cable Length 70cm/2.30 ft Battery Capacity Approx. 10 hours Bluetooth Transmission Distance <10m... - Page 10 NOTES...
- Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
