Summary of Contents for AirMobi Swiftlink S1400-P33

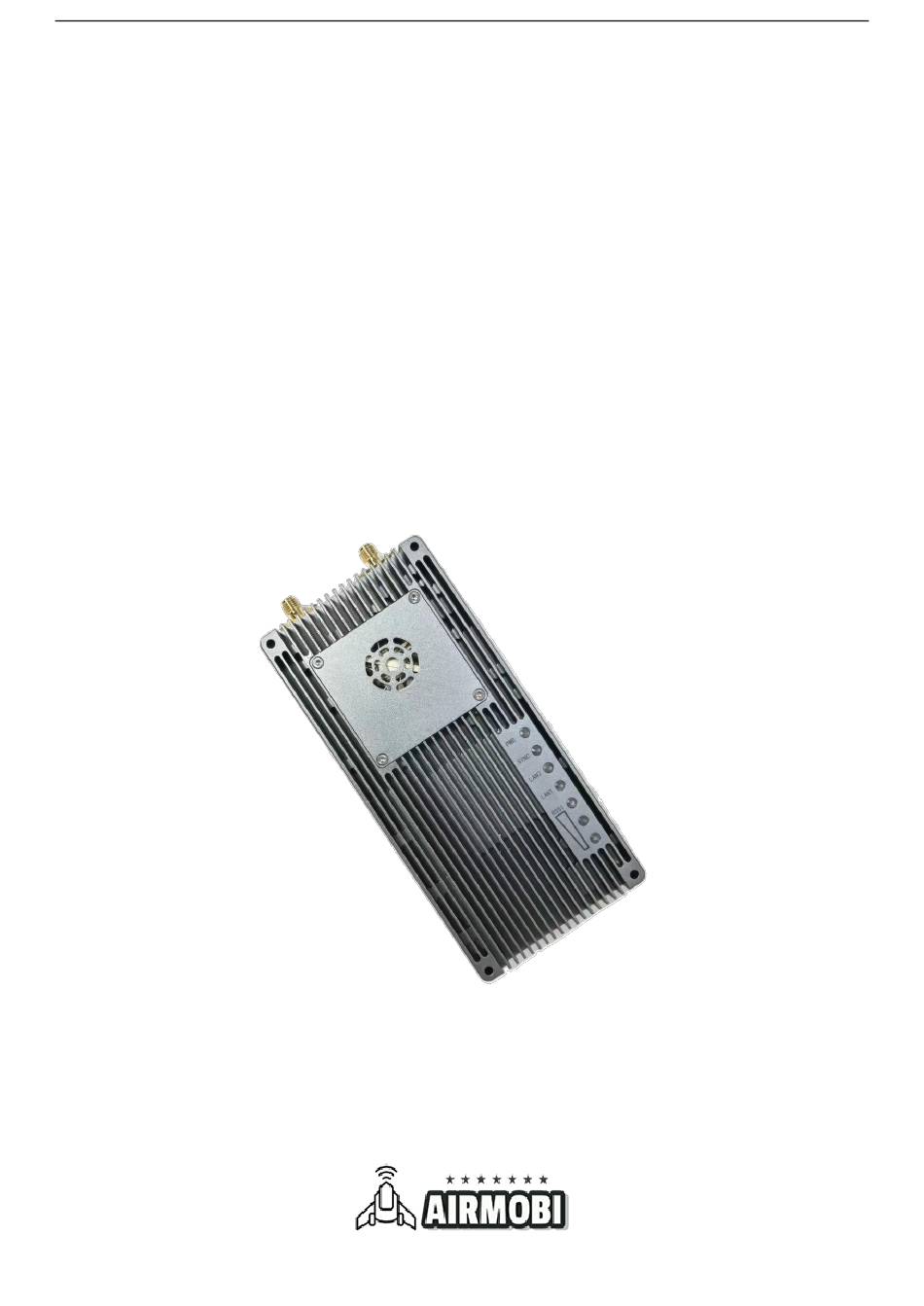

- Page 1 Airmobi Limited Swiftlink S1400-P33 1.4Ghz 60km Wireless Data/Video Transmission System User Manual Version：20240315V6 Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265...
-
Page 2: Version History
No modification. Consistent with the use guide version 20231031 V4.0 Modify product features 3: Equipment weight, add SBUS function. 20231204 V5.0 Product Features Add automatic repeater. 20240315 V6.0 Modify power consumption and data quantity Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265... - Page 3 4.1 Dimension diagram ......................6 4.2 Dimension and weight ......................6 5 Product interface definition ......................7 5.1 Interface diagram ........................7 5.2 Interface definition ........................ 7 6 Product indicator meaning ......................8 Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265...
-
Page 4: Product Overview
⚫ Supports automatic power control: Close range automatic adjustment of transmission power, reduce power consumption. ⚫ Supports automatic antenna selection: According to the occlusion situation, the optimal antenna transmission is selected in real time. Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265... -
Page 5: Product Index
Weight 208g Working voltage DC 9~26V,Typical value: +12V@3A Working temperature -40℃~+75℃ MCS & Sensitivity（10MHz） Total uplink and downlink Sensitivity (dBm) throughput (Mbps) QPSK1/3 QPSK1/2 QPSK2/3 QPSK3/4 16QAM1/3 16QAM1/2 12.0 16QAM2/3 14.6 16QAM3/4 16.8 Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265... -
Page 6: Dimension Diagram
Airmobi Limited 4 Product dimension and weight 4.1 Dimension diagram 4.2 Dimension and weight ◆ Dimension (L*W*H) : 148mm x 65mm x 17mm（including SMA 10mm） ◆ Weight : 208g Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265... -
Page 7: Interface Diagram
Receiving data RX- Notes1: Signal direction I indicates radio input and direction O indicates radio output. Notes2: Please confirm whether it is TTL level or RS232 level when using device serial port 1/2. Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265... - Page 8 The RSSI light represents the strength of the received signal Number of RSSI energy lights on Received energy dBm 3 RSSI lights on about -55dBm 2 RSSI lights on about -80dBm 1 RSSI light on about -95dBm Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265...
- Page 9 The master-slave RSSI lamp displays the received signal energy intensity. When the network port is sending or receiving data, the master and slave devices correspond to LAN1, LAN2 indicator blinks. Airmobi Limited www.airmobi.com E-mail: info@airmobi.com Tel: +86-189-50170265...
