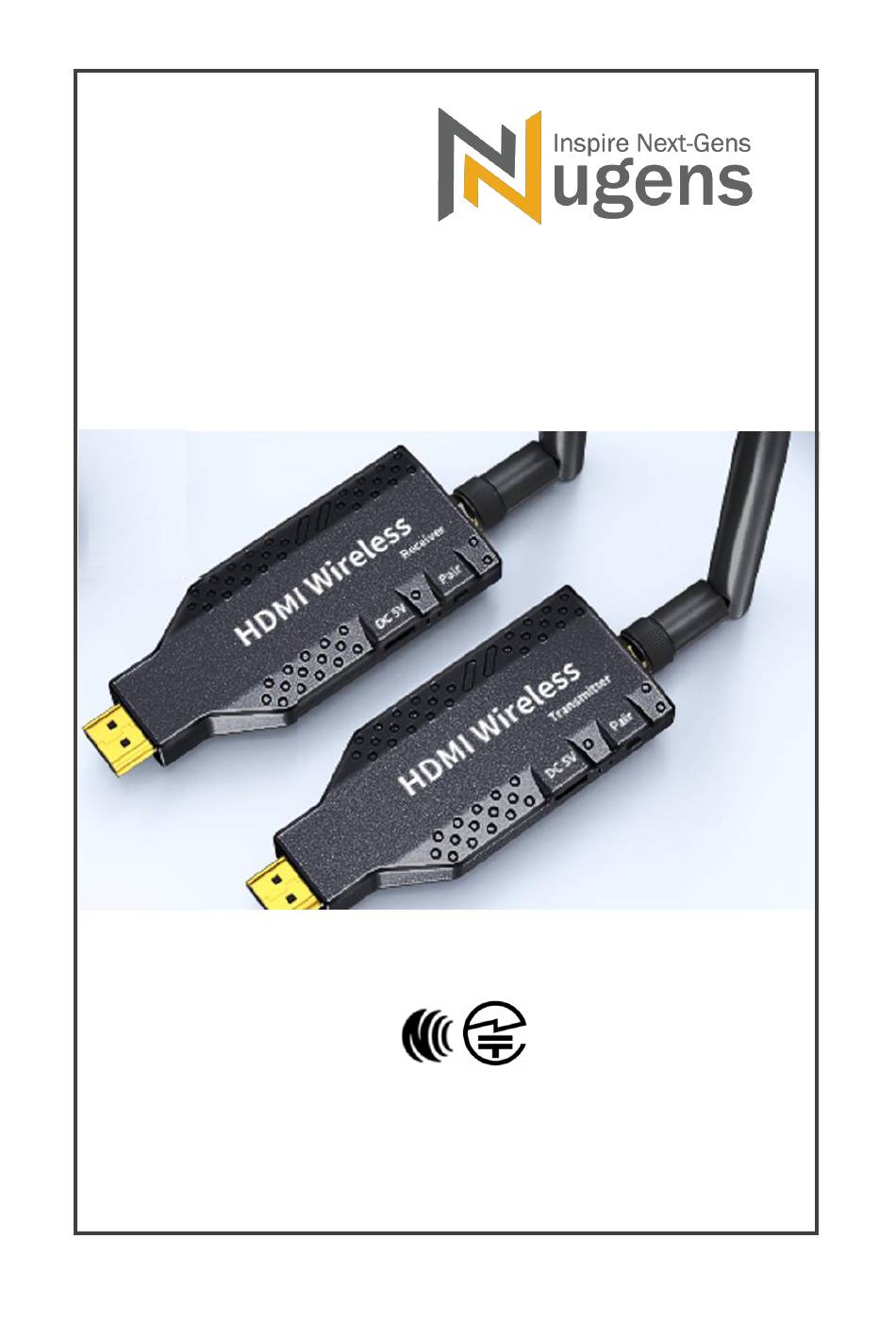

- Page 1 Quick Installation Guide HDMI Dongle Wireless Extender NW-200TR-50 Please keep this manual properly. V.240531 - 1 -...
-
Page 2: Warnings And Precautions
• Nugens reserves the right to update this disclaimer at any time and shall not be liable for any damage or compensation caused by issues beyond our control or improper use. - Page 3 • Use the original charging cable provided by Nugens to avoid damage to the product. • Do not use the charging cable if it is damaged, as this may cause a hazard. • Do not attempt to repair or disassemble any components of this product yourself, as this may lead to product damage or personal injury and will void the product warranty.
- Page 4 Impedance 100Ω Recommended 1920X1080 @60Hz, <3m HDMI Max. in/out range Wi-Fi Wireless 13dbm transmission max. power Wireless 802.11ac transmission standard Signal direction Unidirectional Wireless 5.8GHz transmission frequency band Transmission distance Antenna type Omnidirectional antenna Ports Transmitter HDMI In x 1 Power In DC 5V x 1 Antenna x 1 Receiver...
- Page 5 HDMI female to female adapter x 1 Quick installation guide x 1 Instructions Thank you for purchasing the Nugens NW-200TR HDMI Wireless Extender. • This product can connect to 4 receivers with 1 transmitter, and a total can be displayed up to 4 displays.
- Page 6 Transmitter Connection 1. Connect the antenna to the rear end of the transmitter. 2. Insert the power cord into the power input of the transmitter and connect the other end to the USB power supply. 3. When the power indicator light comes on, the power is successfully on. 4.
-
Page 7: Frequently Asked Questions
4. Unplug the transmitter and receiver, remove the HDMI female-to-female adapter, wait a few seconds (about 5 to 10 seconds) and connect the power again. The working status indicators of the transmitter and receiver will appear. When the green light flashes, pairing is successful. 1-to-many Pairing (1 TX + multiple RXs) Follow the above 1-to-1 pairing steps to complete the pairing of the transmitter and the first receiver, and then complete the pairing of the transmitter and... - Page 8 - 8 -...
- Page 9 Official website: https://www.nugenstech.com Email: sales@nugenstech.com - 9 -...
