·Mini PC replacement

Applicable for Product:

Applicable for Product Version:

Applicable for Product Serial No.:

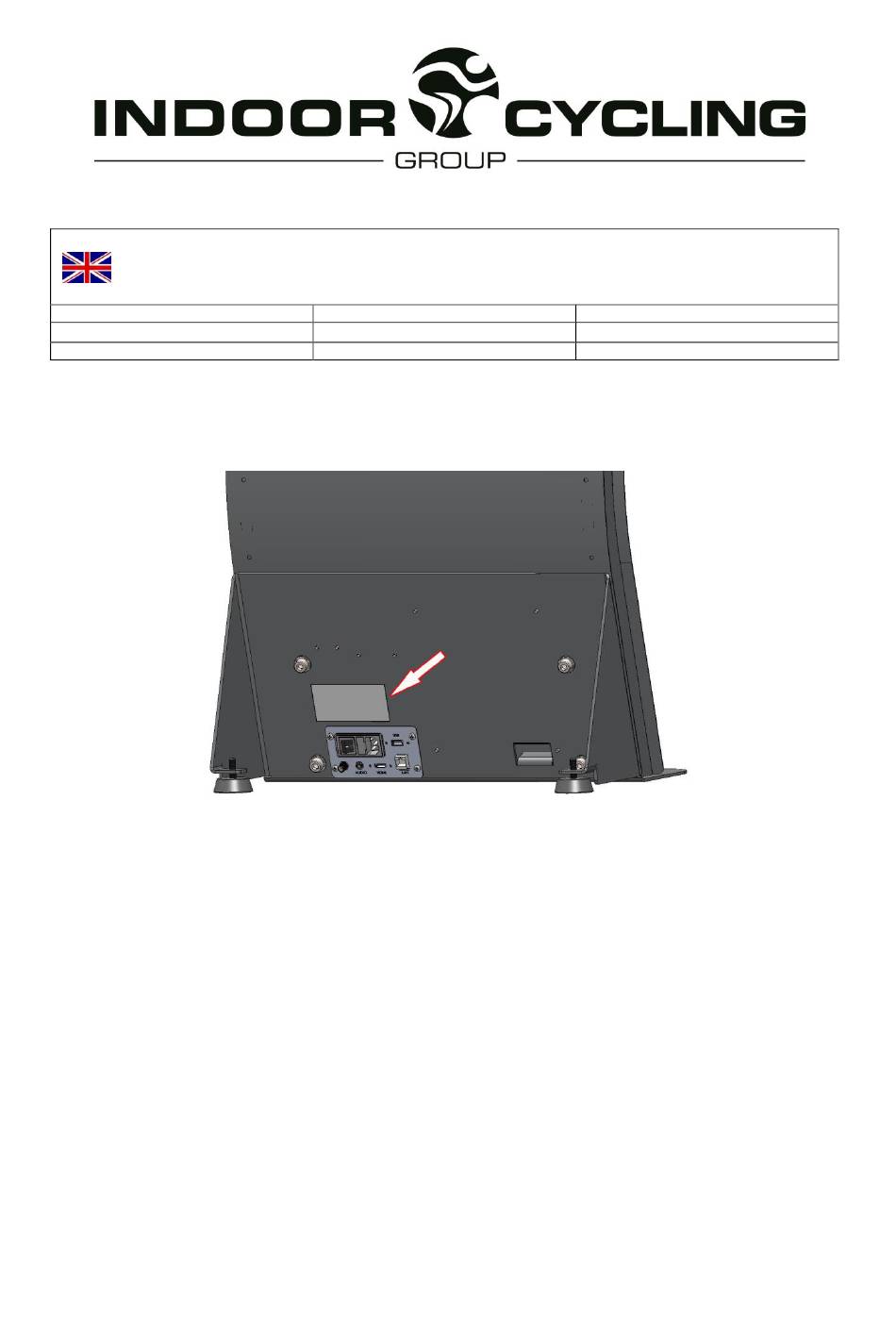

The HDD number and Product Serial Number information can be found on the tag plate label positioned on the lower part of the rear

side of the Myride VX bottom plate. Please make sure to identify the product prior to performing any repair job.

_________________________________________________________________________________

FB TS PCX 01

ICG® Standard Operating Procedure | released by ICG® Service Department

TASK DESCRIPTION

Myride VX

VAC90000001B-13G

> ...

01.04.2014 (release date and version)

Need help?

Do you have a question about the Myride VX and is the answer not in the manual?

Questions and answers

Summary of Contents for Indoor Cycling Myride VX

Page 1 The HDD number and Product Serial Number information can be found on the tag plate label positioned on the lower part of the rear side of the Myride VX bottom plate. Please make sure to identify the product prior to performing any repair job.
Page 2: Required Tools
01.04.2014 (release date and version) AFFECTED PARTS: PART PART DESCRIPTION COMMENTS NO. OF ICG ARTICEL NUMBER PARTS MYRIDE Mini PC 410-10-00001-01 REQUIRED TOOLS: TOOLS SIZE mm QUANTITY Allen key Torx key Cutting pliers Plastic tie 150mm _________________________________________________________________________________ FB TS PCX 01 ICG®...
Page 3 01.04.2014 (release date and version) Warning! Please ensure that the Myride VX wave stand is in stable position and properly secured while repair work is being performed. 1) Select a safe workplace to ensure a correct and safe working process with the following steps: CAUTION: Be sure to turn off and unplug the Myride VX from the power supply.
Page 4 01.04.2014 (release date and version) 2) Remove the Mini-PC a) Carefully cut the plastic tie that attaches all cables and place the bottom plate as shown on the picture. b) Unplug all cables from the Mini-PC. 3) Exchange of Mini-PC a) Unscrew the 4x M5 x 6 x 0.8P Torx screws attaching the Mini-PC to the bottom plate.
Page 5 Use a small plastic tie to hold and secure all the cables of the Mini-PC. Cut the remaining unnecessary plastic tie with the cutting pliers. b) Carefully place the bottom plate with all its components and cables correctly in the Myride VX wave stand.
Page 6: Bottom Plate Assembly
Tighten the 4x M10 x 25 x 1,5P Allen bolts by using the 8mm Allen key. 7) End of operation a) Connect the power cable and turn on the Myride VX. b) Check if the Myride VX is working properly.
