Charging specifications
1. Input Voltage and Current: 12V 4A Max.
2. Charging Current:
Rapid charging current: 600mA
3. Charging process:
LED is red when charging
LED turns green when the battery voltage reaches 8.4V (+ 1%)
4. The unit has short circuit protection for charger pins.
5. The unit can charge up to 6 DTX600/ULTRA550 UHF Radios or standalone battery packs at the same time.
Important:
1. Please use the power supply and AC power cable provided.
2. Do not use the product near heat / fire source.
3. Do not use the product under direct sunlight.
Pack includes:
6-Way Charger unit x 1
Power supply x 1
Power supply cable x 1

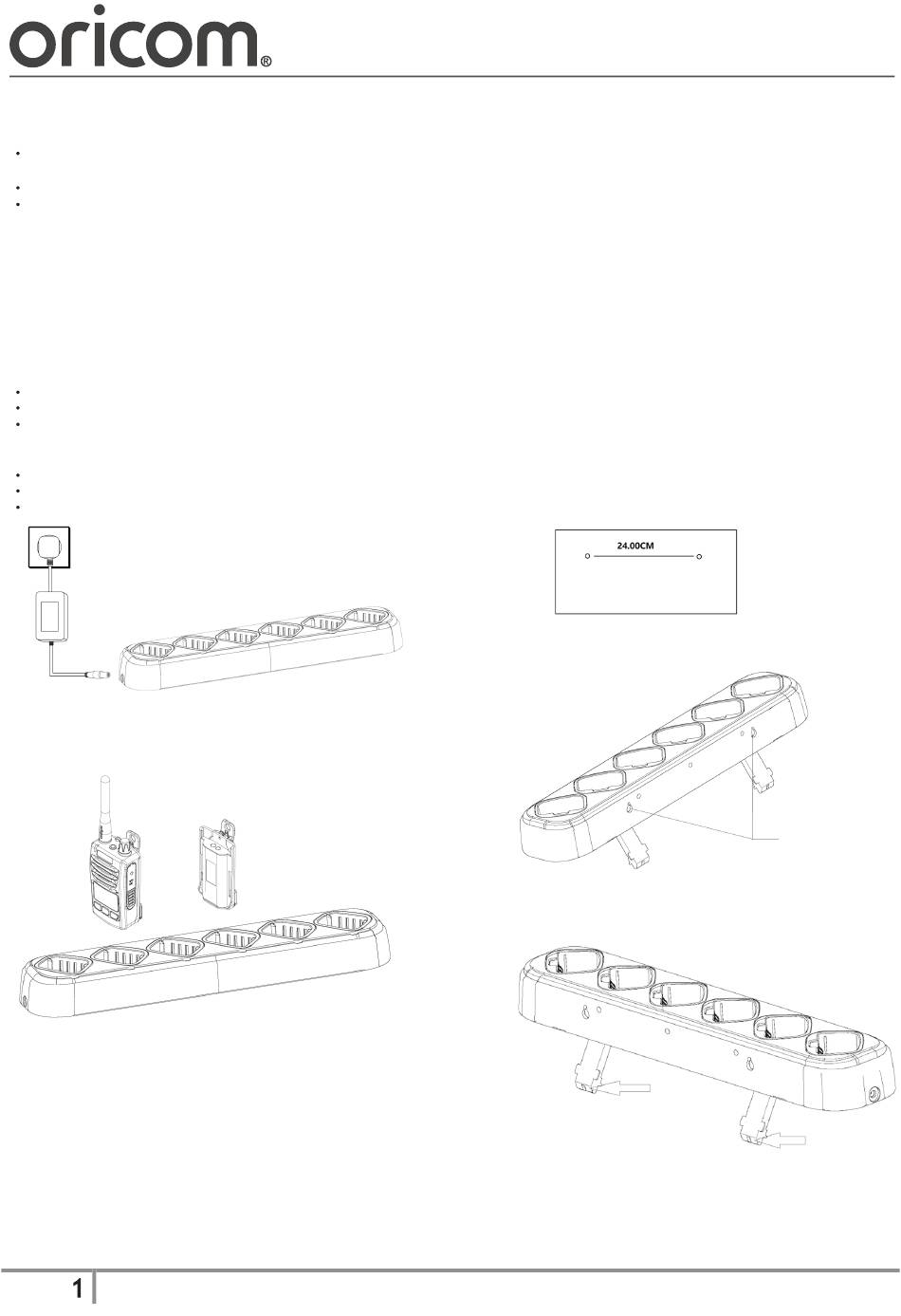

Installation
Connect the power supply cable to the power supply.
Plug the round DC plug into the charger.
Plug the AC plug into the wall socket.
Operation

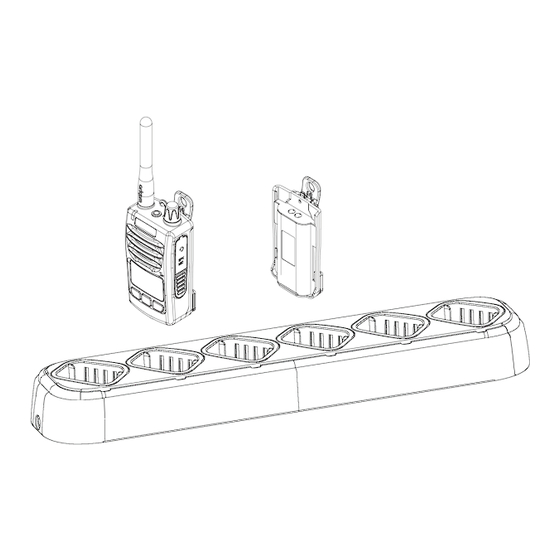

Insert DTX600/ULTRA550 radios or battery packs into charging dock. LED will
indicate RED when charging and GREEN when fully charged.
NOTE: Suits Oricom DTX600 and ULTRA550 radios only.
2U0328 6-Way Charger to Suit Oricom
DTX600/ULTRA550 UHF CB Radios
Wall installation
Fix two screws 24CM apart to the wall, we recommend ST4.0x16 self
tapping screws.
Note: Screw type is dependent on installation material.
Hang the charger on the wall using the keyhole holes as shown below
Release the supports from the bottom of the charger and fix with screws
as shown below:
2U0328 6-Way Charger to Suit Oricom DTX600/ULTRA550 UHF CB Radios User Guide 20240719
