Please read this booklet and keep for future reference for the safe installation and

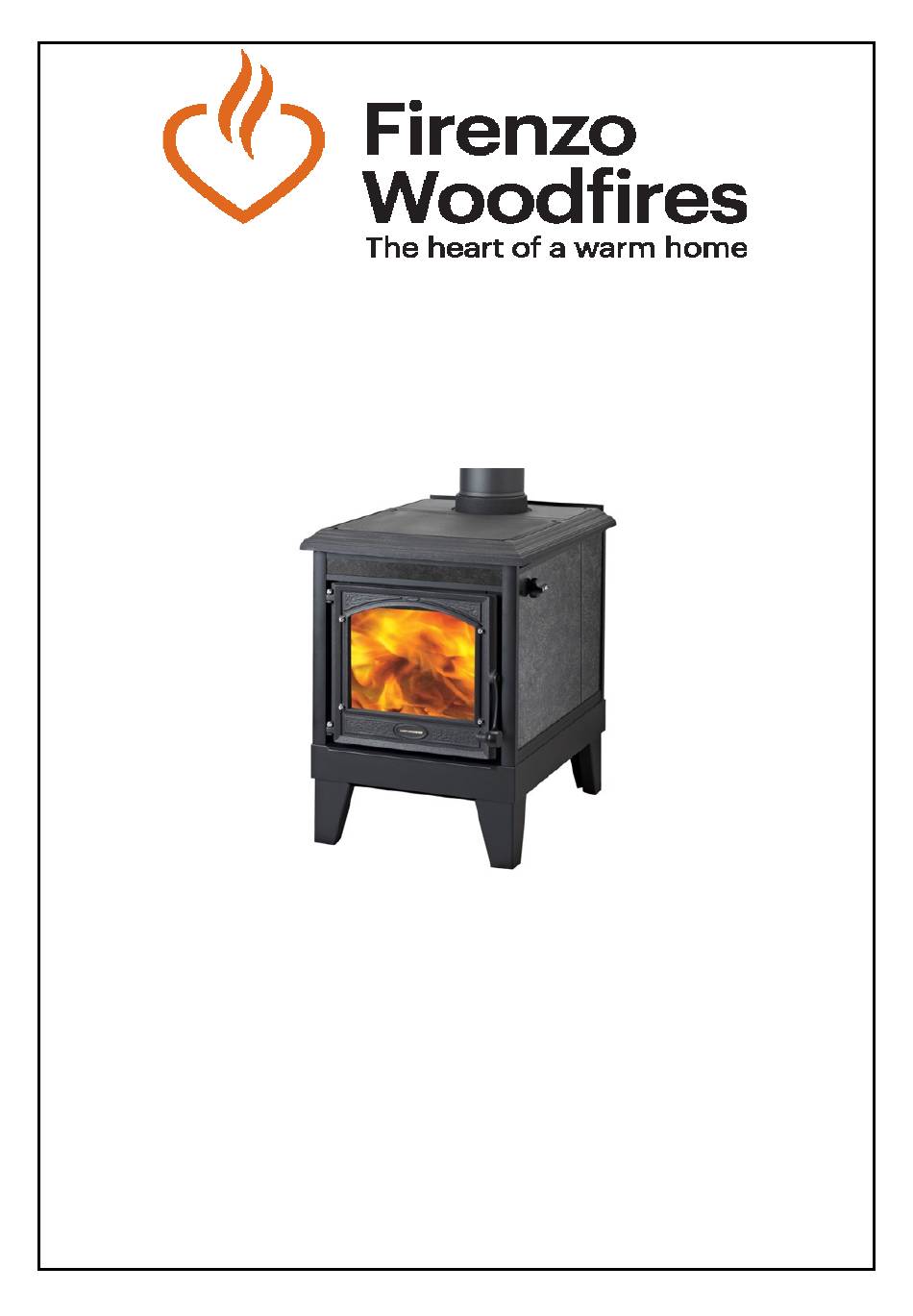

LADY KITCHENER ULEB
INSTALLATION AND OPERATION GUIDE
This Lady Kitchener ULEB Fire can be installed on properties of less than 2 hectares of land
and meets with ECAN standards of 4012/4013 plus CM1
This Fire must be installed by someone competent to do so, Firenzo recommend the use of a
NZ Home Heating Association, solid fuel appliance installation technician (SFAIT), or other
suitably qualified person. The Fire and Flue System must be installed in accordance with
AS/NZS2918. All installations must be in accordance with these instructions. Consult with the
building authority having jurisdiction to determine the need for a permit prior to commencing
the installation. Failure to follow these instructions may also void your fire insurance and
warranty.
This Fire has been tested to Appendix E & B of the joint Australia/New Zealand Standard
2918:2001.
This Fire conforms with ECAN Requirements.
Lady Kitchener ULEB Installation - December 2020
operation of your:
Advertisement
Table of Contents
Summary of Contents for Firenzo Woodfires LADY KITCHENER ULEB
- Page 1 LADY KITCHENER ULEB INSTALLATION AND OPERATION GUIDE This Lady Kitchener ULEB Fire can be installed on properties of less than 2 hectares of land and meets with ECAN standards of 4012/4013 plus CM1 This Fire must be installed by someone competent to do so, Firenzo recommend the use of a NZ Home Heating Association, solid fuel appliance installation technician (SFAIT), or other suitably qualified person.
- Page 2 Warranties Warranties Your Warranties Registration Card is enclosed, please complete and return to us. Under our policy of continuous product improvement, Firenzo reserves the right to alter specifications or product from that shown. Lady Kitchener ULEB Installation - December 2020...
- Page 3 This Fire should be maintained and operated at all times in accordance with these instructions. The Lady Kitchener ULEB is tested to N.Z. Standards 4012/4013 plus CM 1. If this Fire is incorrectly installed a house fire may result. For your safety follow the installation instructions carefully.
-
Page 4: Installation Responsibilities
FLOOR PROTECTOR DIMENSIONS: Refer to drawings under 4.Installation Clearances. The standard front clearance from the front of the door glass can be reduced by increasing the insulated floor protector height, as tabled below: Lady Kitchener ULEB Installation - December 2020... -
Page 5: Installation Clearances
4. INSTALLATION CLEARANCES When installing the Lady Kitchener ULEB on a Leg or Platform Base ADD 70mm to vertical measurements shown here. Flue Size 150mm Internal Firebox Size: Height - 320mm Width - 320mm Depth - 520mm Clearances are in mm and are shown with an ash floor protector using 6mm ceramic tiles. - Page 6 7. Secure the Fire to the floor by using 6-8mm Dyna Bolt fastenings through the holes provided in the rear of the base plate. This is a New Zealand Standard 2918 requirement due to NZ being earthquake prone. Lady Kitchener ULEB Installation - December 2020...
- Page 7 FITTING SEISMIC RESTRAINT BRACKETS ON LADY KITCHENER ULEB PEDESTAL or DRAWER BASE MODELS Remove bolts at rear of fire box. Fit Seismic Restraint Brackets. Secure both the floor protector and the fire to the floor using a 6mm Dyna Bolt.
- Page 8 CAUTION: Mixing of fire or flue system components from different sources or modifying the dimensional specifications of components using more than 1 metre of extra flue may result in hazardous conditions. Where such action is considered the manufacturer should be consulted in the first instance. Lady Kitchener ULEB Installation - December 2020...
- Page 9 1 metre above the roof penetration if more than 3 metres from the ridge. No part of the building, or any adjacent building may be in or above a circular area of a horizontal radius of 3 metres from the flue exit. Lady Kitchener ULEB Installation - December 2020...
- Page 10 OUTSIDE AIR KIT EXPLODED VIEW LADY KITCHENER ULEB The part of the Duct that goes through the wall is 90mm wide and 70mm deep. All work carried out must meet the New Zealand Building Code or Codes. Lady Kitchener ULEB Installation - December 2020...
- Page 11 7. Place the external cover over the duct and fix with the 4 screws provided. 8. Slide interior flange against lining and secure to duct. 9. Outside Air Kit must be fitted to relevant Building Code or Codes. Lady Kitchener ULEB Installation - December 2020...
- Page 12 1.5kg front to back, ensure there are gaps or crossed stacked. MAIN BURN: 3.Thirty (30) minutes after intermediate load, place normal size firewood (approximately 3kg). AIR CONTROL KNOB L = LOW H = HIGH Lady Kitchener ULEB Installation - December 2020...
-
Page 13: Flammable Liquids
WARNING: DO NOT REMOVE EXCESS ASH FROM THE FIREBOX BY VACUUM UNLESS THE FIRE HAS BEEN OUT FOR 5 OR MORE DAYS—EMBERS WILL SMOULDER FOR SEVERAL DAYS AND WILL IGNITE VACUUM CLEANER BAGS. Lady Kitchener ULEB Installation - December 2020... -
Page 14: Door Glass
(take care it will be heavy and dirty underneath), take out the remaining baffles. Lady Kitchener ULEB Installation - December 2020... - Page 15 10. SAFETY All surfaces on the Lady Kitchener ULEB Dry will get hot and cause burning if touched by bare hands. We rec- ommend using a fireguard. The heat from the fire will effectively dry laundry and other wet articles; however such materials should be kept well clear of the Fire to prevent accidental fires.
- Page 16 Warranty Registration Card for validating warranty claims. 9. The warranties may be assigned to other consumers (as defined in the Consumer Guarantees Act 1993) on any sale of the residential property where a Firenzo wood fire has been installed. Lady Kitchener ULEB Installation - December 2020...
- Page 17 Firenzo wood fire. In the event of any inconsistency between the warranties and any other written Firenzo material, including a manual, the warranties shall prevail to the extent of the inconsistency. Lady Kitchener ULEB Installation - December 2020...
- Page 18 Purchased from: Please complete for your reference NB: The Warranties Registration Card is located in the information pack that accompanied your new wood fire, it MUST be filled out and returned to Firenzo. Lady Kitchener ULEB Installation - December 2020...
- Page 19 Lady Kitchener ULEB Installation - December 2020...
- Page 20 Forte Bay & Flush Kompact Athena Kompact Deco Kompact Diva Kompact Forte Kompact Plaza Kompact Serenity Topaz 98 Niven Street PO Box 3231 HB Mail Centre Napier 4142 Phone: 06 843 8260 Website: www.firenzo.co.nz email: firenzo@firenzo.co.nz Lady Kitchener ULEB Installation - December 2020...
