Harman JBL MA510 Command Manual

IP control interface and commands for
JBL MA510/MA710/MA7100HP/MA9100HP
20240924 V1.5
Controlling via Network
Set-up
The unit's IP control is always ready to use, through port 50000 of its IP address. To identify the
connected client/server that is using this protocol, an initialization command should be sent by the client
just after connection is established, and the unit will respond to this command. For more details about the
commands please refer to the command description part of this document.
IP Control is disabled for minimum standby power consumption when the AVR is in "Green" mode
or when the AVR is disconnected from the local network.

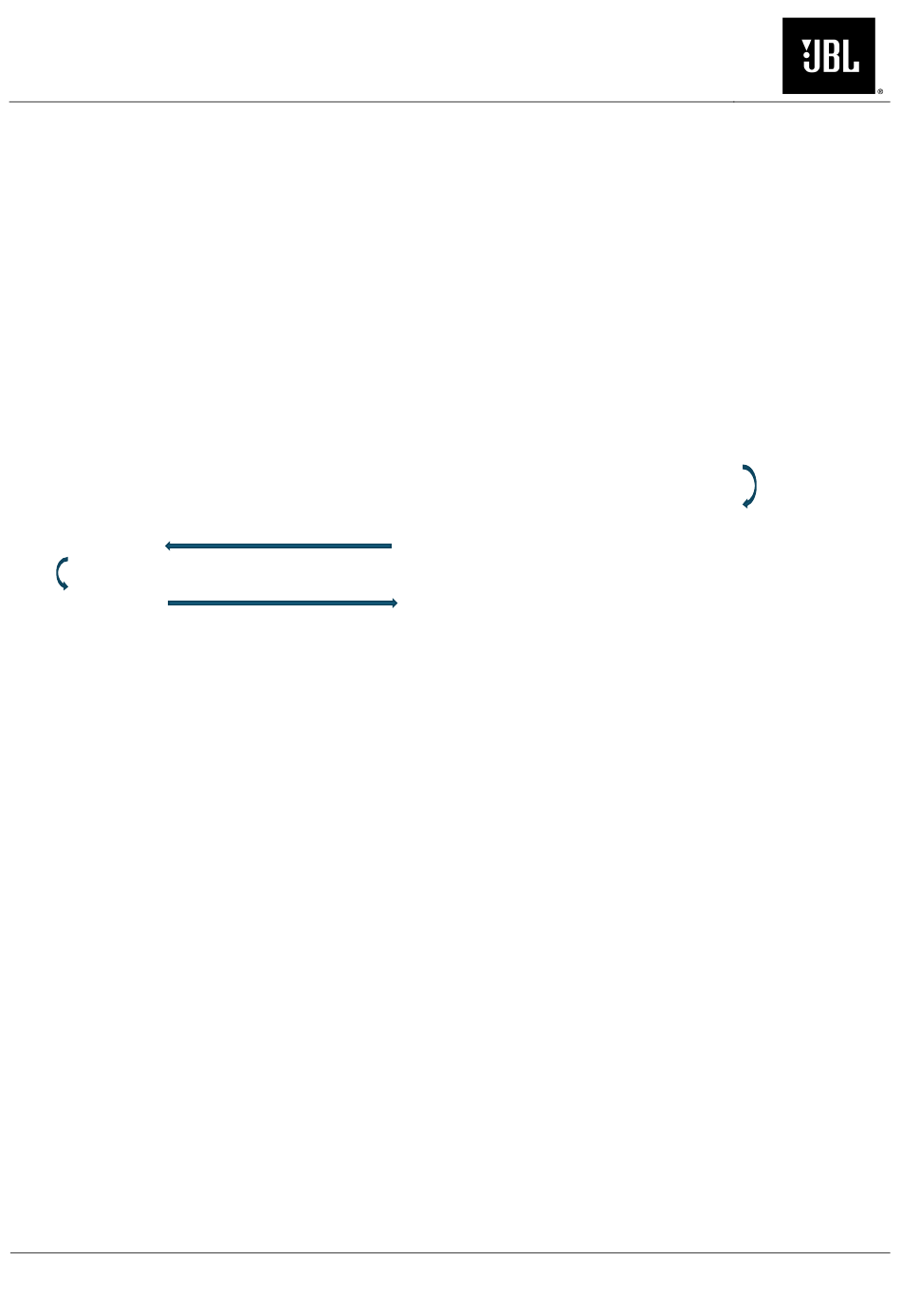

Unit (Sever)
Registration
Ready to use
OK to Send/Receive any CMD
Conventions
All hexadecimal numbers begin 0x.
Any character in single quotes gives the ASCII equivalent of a hex value.
<n> represents an unknown or variable number.
Command and response formats
Communication between the controller and the AVR takes the form of sequences of bytes, with all
commands and responses having the same basic format. The AVR shall always respond to a received
command, but may also send messages at other times.
© Harman International | Confidential and Proprietary
Send < Initialization Request>
Send < Initialized Report>
Connect to Unit's IP.
... ...
OK to send any CMD to Sever.
Client (Controller)
Pg 1 of 17
