Summary of Contents for Morskate DV 030 PFK

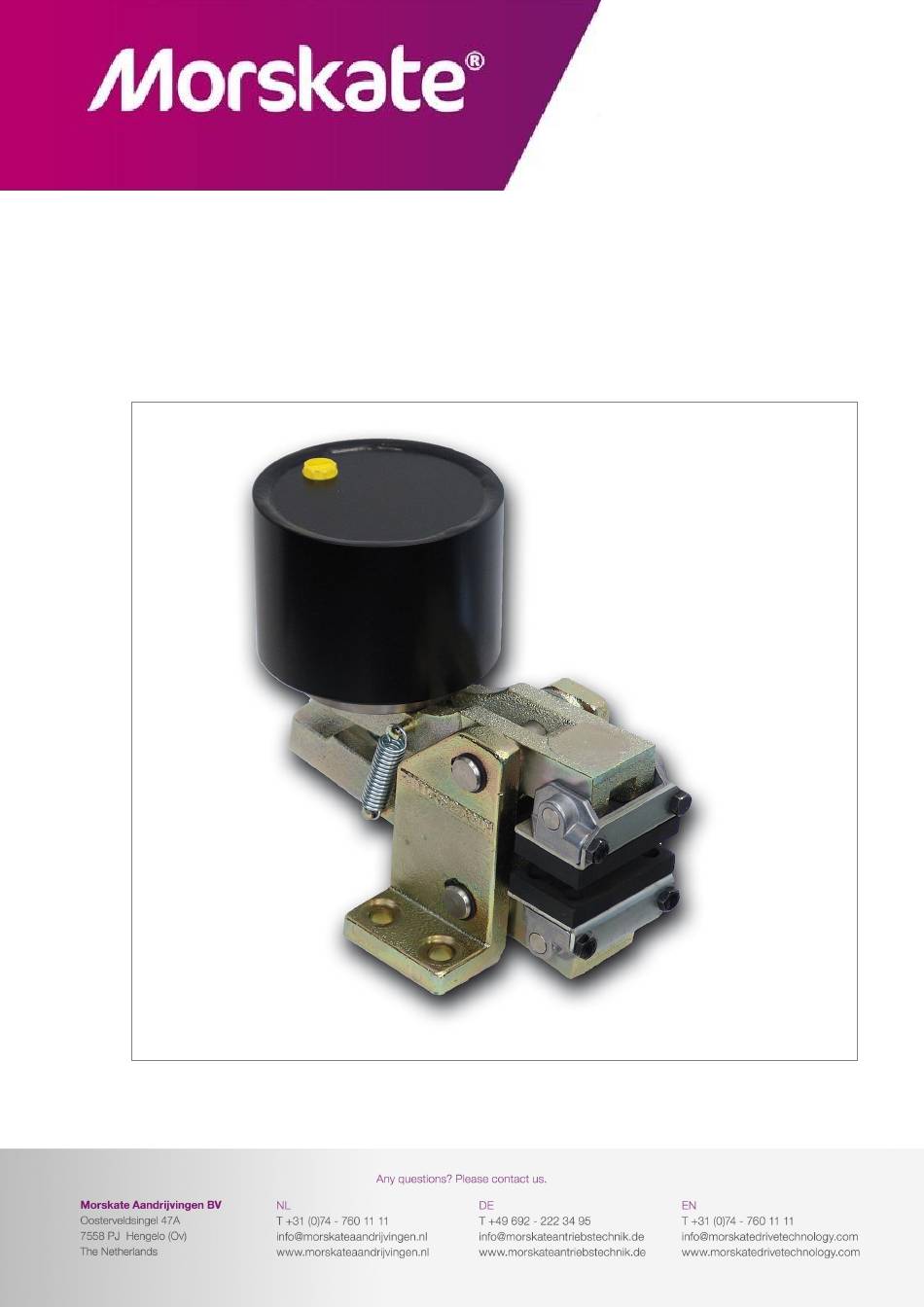

- Page 1 Installation and Operating Instructions for Brake Caliper DV / DH 030 PFK E 09.649e...
-
Page 2: Safety Notice
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 2 IMPORTANT Please read these instructions carefully before installing and operating the product. Your particular attention is drawn to the notes on safety. -
Page 3: Table Of Contents
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 3 Contents General information Configuration and function Drawing and parts list Condition on delivery Installing the RINGSPANN brake caliper 5.1 Installation... -
Page 4: General Information
the DV / DH 030 PFK, with either a 640, 650 or 653 brake chamber the DV 030 PFK, brake caliper mounted parallel to the brake disc (frame construction V, see Fig. 3.1 in Section 3); brake chamber mounted on the right. -
Page 5: Drawing And Parts List
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 5 Drawing and parts list Brake Caliper DV 30 Brake Caliper DH 30 Fig. -
Page 6: Condition On Delivery
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 6 Part Nomenclature Quantity Part number Brake pad from BK 8006 for brake calipers: 4457-300110-000000 2472-005013-A00109*... -
Page 7: Installation
Mobil VAC HLP 9 25,2 Maximum air consumption per braking operations is: for DV 030 PFK 650 and DH 030 PFK 650 approx. 490 cm³ for DV 030 PFK 640 and DH 030 PFK 640 approx. 313 cm³ ... -
Page 8: Adjusting The Brake Caliper
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 8 5.3 Adjusting the brake caliper The brake chamber must not be pressurized. The gap between the brake pads (9) and the brake disc has been set by the manufacturer to 0.5 mm on each side. -
Page 9: Running-In Procedure
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 9 5.4 Running-in procedure Optimum braking effect is achieved only when both brake pads (9) are in full contact with the brake disc and the brake pads have attained a temperature of approx. -
Page 10: Maintenance
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 10 Procedure for installing or replacing the proximity switch: The following instructions apply to the proximity switch listed above, with 2-mm switching distance. -
Page 11: Checking And Adjusting The Brake Gap
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 11 Check the following for proper seal / leaks: hose connection (leaks can be detected quickly and easily using e.g., "Güpoflex LECKSUCHER", manufactured by GÜPO GmbH, 77694 Kehl, telephone ++49/7851/4044-45, or equivalent products). -
Page 12: Removal And Replacement Of Worn Parts In The Brake Chamber
Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 12 Removal and replacement of worn parts in the brake chamber Caution! Secure the brake for disassembly. - Page 13 Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 13 7.11 Disassembling, assembling brake chamber Size 650; replacing worn parts Remove the brake chamber from the brake caliper lever be loosening the screws.
- Page 14 Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 14 7.21 Disassembling, assembling brake chamber Size 640; replacing worn parts Remove the brake chamber from the caliper lever by loosening the screws.
- Page 15 Installation and Operating Instructions for E 09.649 e Brake Caliper DV / DH 30 PFK pneumatically activated, spring released Issue: 03.04.2014 Version :8 drawn: Su checked.: Su pages: 15 page: 15 7.31 Disassembling, assembling brake chamber Size Gr. 653; replacing worn parts Remove the brake chamber from the brake caliper lever be loosening the screws.
