Single Unit Standoff
Bracket Part Number
Compatible Rinnai
Tankless Water Heaters
The single unit standoff bracket anchors the tankless water
heater (applicable models above) to the wall with 1.5 inches
(38 mm) of clearance between the water heater and wall.
Figure 1 illustrates an installation with piping located behind the
water heater and standoff bracket.
Before installation, please make sure all parts are located inside
the product box. If any items are missing or damaged, contact your
local dealer/distributor or contact Rinnai.
Item #
Item
Standoff Bracket
❶
(Top and Bottom)
Bolt 10-24
❷
Lock-Washer Nut
❸
❶
Tools/Materials (Field-Supplied):
•
Drill
•
Level
•
5/16" Nut Driver
•
3/8" Wrench
109001376
For use with the following tankless water heater model series: RE, RU, RX, RXP, CX, CXP,
and RUCS (Indoor units only)
Qty
2
9
5
❷
•
Optional: Wall Hanging Bracket (supplied with tankless water heater).
•
Optional: Eight (8) screws for wall hanging bracket installation. Use
appropriate screw for type of wall construction.
❸

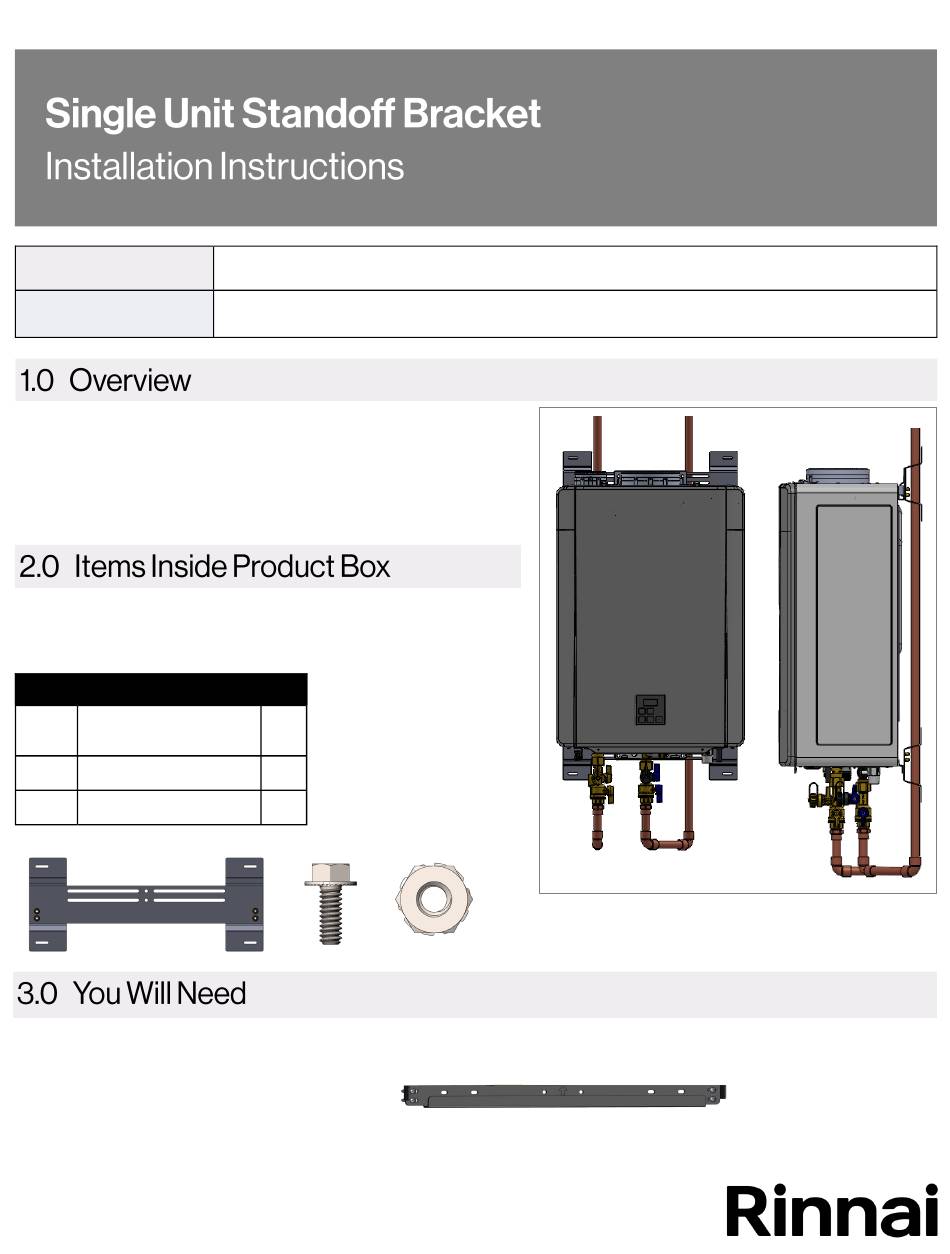

Figure 1: Installation with piping behind water
heater and standoff bracket
Advertisement
Summary of Contents for Rinnai 109001376
- Page 1 Figure 1 illustrates an installation with piping located behind the water heater and standoff bracket. Before installation, please make sure all parts are located inside the product box. If any items are missing or damaged, contact your local dealer/distributor or contact Rinnai. Item # Item Standoff Bracket ❶...
- Page 2 IMPORTANT • For instructions on mounting the standoff bracket with a wall hanging bracket, see section 4.1. • For instructions on mounting the standoff bracket without a wall hanging bracket, see section 4.2. 2. Hold the standoff bracket up against the wall and use a level to make sure the bracket is even.
- Page 3 Make sure the wall mounting bracket is attached to the wall and can hold the weight You Will Need: of the water heater before you fully let go. • Rinnai Tankless Water Heater (purchased separately) • Four (4) bolts and (4) nuts (supplied) •...
- Page 4 3. Secure the top bracket of the tankless water 4. Use two screws (field-supplied) to secure the heater to the top standoff bracket using two of lower standoff bracket to the wall (one screw the supplied nuts and bolts. on the left side and one screw on the right side).
- Page 5 2. Use four screws to secure the standoff bracket to the wall (two screws on the left side and two screws on the right side). Use the appropriate screws for the wall construction to secure the standoff bracket to the wall between two studs. Mount the Upper Standoff IMPORTANT: Mounting hole locations are Bracket to the Wall...
- Page 6 Hang the Tankless Water Heater 2. Align middle slot on the upper tankless water heater bracket with the secured bolt attached to the standoff bracket. You Will Need: • Rinnai Tankless Water Heater (purchased separately) • Four (4) bolts and nuts (supplied) Field-Supplied: •...
