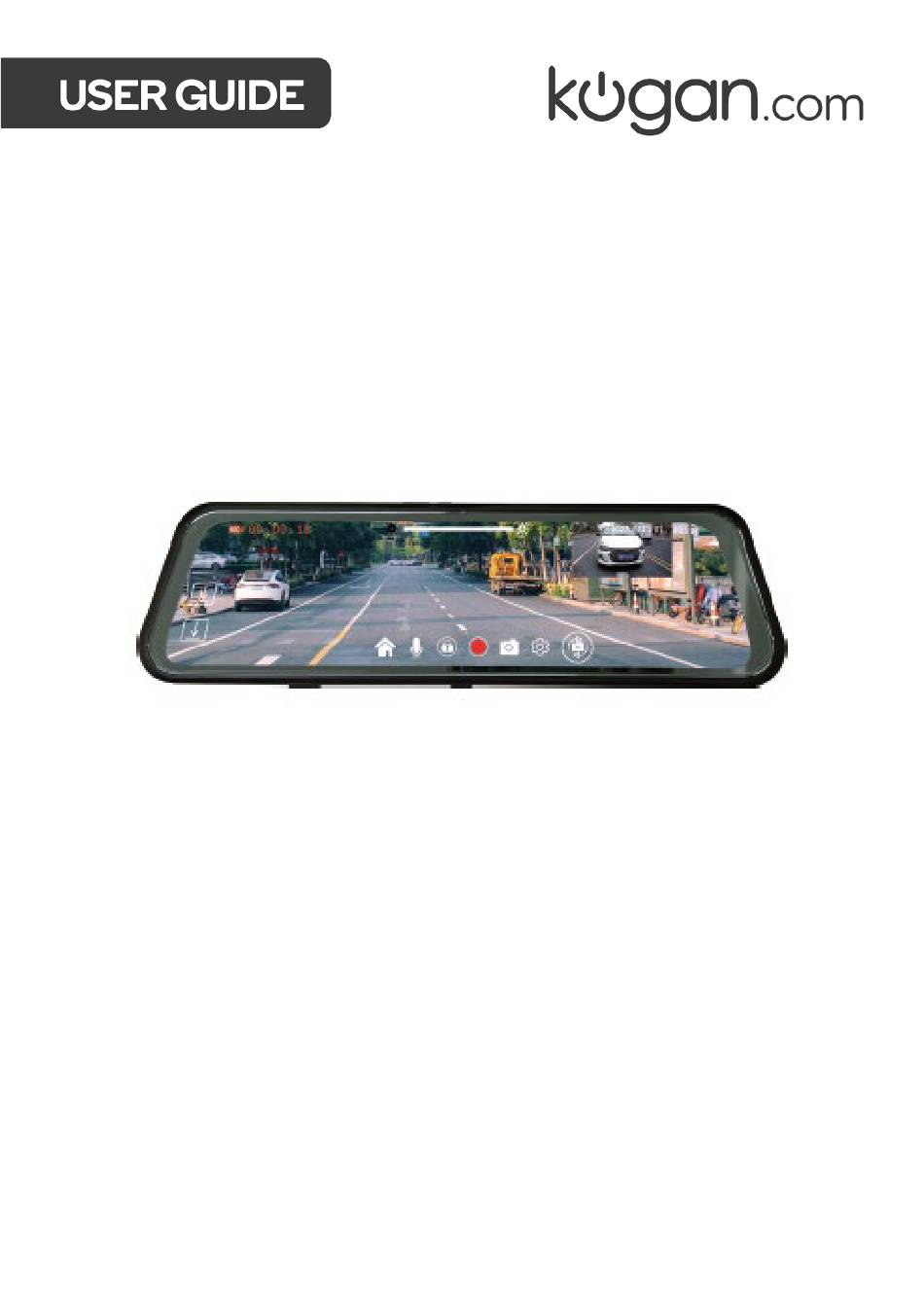

- Page 1 KOGAN 9.66" MIRROR DUAL DASH CAMERA FRONT AND REAR KADCAML101A...
-
Page 3: Safety And Warnings
• Do not disassemble or repair the dash camera yourself. If the dash camera is damaged, stop use immediately and contact help.Kogan.com for assistance. • This dash camera is intended for use in a motor vehicle only. Do not install the camera where it might block the driver’s view of the road (including the mirrors) or the... - Page 4 COMPONENTS Dash camera Hardware kit Car charger Rear camera Rear camera cable User guide...
- Page 5 OVERVIEW Function Description Press and hold for 3 seconds to manually turn the dash camera on/off. Power Press to turn the backlight on/off (this does not impact video recording). Use a pin to press the reset button to reset and Reset power off the dash camera.
-
Page 6: Installation
INSTALLATION Install the dash camera Option 1: Car charger Mount the dash camera over the original rearview mirror. When the camera is in place, fasten to the mirror using the included rubber rings. Adjust the mirror angle according to your driving position to ensure you have a clear view. - Page 7 Option 2: hardware kit For a more integrated option, install the dash camera using the included hardwire kit. Step 1: Open the fuse box. Step 2: Locate the ACC+ Step 3: Connect the red The location of the fuse and BAT+ fuse slots. wire to the ACC+ fuse box will differ depending on slot.
- Page 8 Install the rear camera Install the rear camera above the number plate with the bracket facing upward. Connect the red wire to the positive reverse signal wire. Route the camera cable to the front of the car. Connect the black wire from the rear camera into the AV-IN port on the mirror. Note: The rear camera must be installed by a licensed auto electrician.
-
Page 9: Operation
OPERATION Main menu Record Enter the camera menu. Format Format the SD card. Playback • Playback videos and photos. • Unlock or delete recorded files. Settings Enter the settings menu. Record video shortcut Tap to begin recording. Record audio/mute Tap to record audio or mute. shortcut... - Page 10 Camera menu Home Tap to enter the main menu. Audio Tap to mute. Lock the video while recording. Note: a locked Lock video cannot be overridden. It must be deleted manually. Video Tap to start/stop recording footage. Photo • When recording, tap to take a photo. •...
- Page 11 Video recording Resolution Choose between 1440P, 1296P and 1080P. Display mode Display front camera, rear camera, or split screen (front and back cameras displayed at the same time). Loop recording • On: Continuously loop over old videos to prevent the SD card from getting full.
- Page 12 Recording settings Auto screen off When the selected duration is reached without the camera being operated, the screen will automatically turn off. The camera will continue to record as normal. Frequency 50Hz/60Hz. Key sound Turn the key sound on/off. Language Change the language.
- Page 13 Photos Photo quality Adjust the photo quality to suit the photo size. Take photo Take a normal or timer photo. Continuous shooting When enabled, photos will be taken in bursts of 3. Watermark A ‘Day-Month-Year’ watermark will display on the photo.
-
Page 14: Specifications
SPECIFICATIONS Display 9.66 inch HD screen Lens Full glass and grade high resolution multi-layer filter and wide-angle lens. Front camera resolution 2304x1296P Rear camera resolution 1280x720P Lens perspective 170 degrees Languages English Storage SD card up to 64GB (not included) Photo resolution 12M/8M/5M/2MHD 1.3M/VGA Video format... -
Page 15: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Solution The dash camera The SD card is full. • Replace the SD card. automatically stops • Enable the loop recording when recording. function. The SD card is Ensure the SD card is high speed incompatible. (above C10). - Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
