Summary of Contents for Ashland I-130-XL

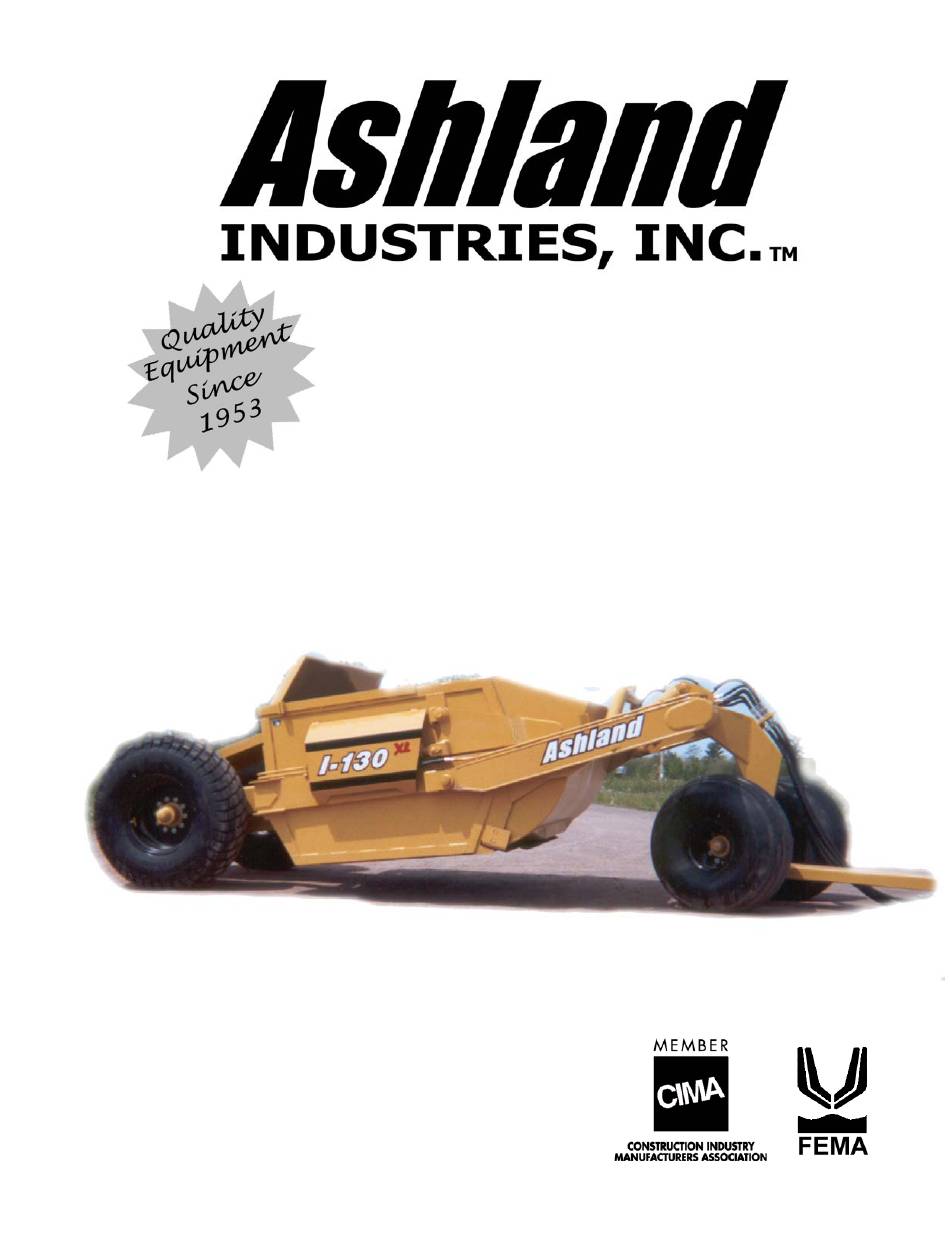

- Page 1 I-130-XL PARTS MANUAL I-130XL ver 120903 Ashland Industries Inc. 1115 Rail Drive P.O. Box 717 Ashland, WI. 54806 Ph: 877-634-4622 Toll Free Ph: 715-682-4622 Fx: 715-682-9717 www.ashlandind.com...
-
Page 2: How To Order Parts
Be sure to state MODEL and SERIAL NUMBER of your machine, PART NUMBER, DESCRIPTION and QUANTITY needed. Unless this is done, we cannot provide prompt service or assure shipment of the correct parts. Ashland Industries weldable replacement parts are availabe to rebuild, modify or update your scraper to current factory specifications. INDEX Page 3. -
Page 3: Safety Signal Words
SAFETY SIGNAL WORDS Note the use of the signal words DANGER, WARNING and CAUTION with the safety mes- sages. The appropriate signal word for each has been selected using the following guide- lines: DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. - Page 4 OPERATORS AND MAINTENANCE INSTRUCTIONS This scraper is a durable piece of equipment and with proper care will yield many years of trouble free operation. The scraper requires a power source with TWO 4 way (double acting) hydraulic control valves. The scraper should be greased at all points where grease fittings are provided. Connect hydraulic hoses to the tractor and retract lift cylinders to REMOVE TRANSPORT LOCK PINS (point A), then extend and retract all cylinders several times to force out any air from the hydraulic cylinders and lines.
- Page 6 KEY NO. PART NO. DESCRIPTION A13011 Gooseneck frame AFB-00054 Bolt, 1/2" NC x 3-1/2" w/ 7500 nut 14505 Grease zerk, straight A10152A Pin, Frame attachment, 2” OD x 8-1/16” Long AFP-00004 Hair pin A10153 Pin, Transport lock AFB-00025 Bolt, 7/8" NC x 5" AFN-00019 Nut, 7/8"...
- Page 7 I-130XL APRON ASSEMBLY KEY NO. PART NO. DESCRIPTION A123341 Apron A123343 Bushing: 2” OD X 1-1/2” ID x 1-3/4” Long AFB-00038 Bolt, 1-1/2” NF x 5-1/2” long AFN-00018 Nut, Self lock 1-1/2” NF 14505 Grease fitting...
- Page 8 BOWL AND FRAME ASSEMBLY KEY NO. PART NO. DESCRIPTION Bowl and Frame I-130 XL 6835 Bolt, 3/8” NC x 1” gr. 5 A10157 Left hand cylinder guard A10158 Right hand cylinder guard 14505 Grease fitting 7450 Nut, 3/8” NC gr. 5 A123332L Left cutting edge, 8"...
- Page 9 I-130XL PUSHOFF GATE KEY NO. PART NO. DESCRIPTION A13004 Brace AFN-00006 Nut: 3/4” NC AFB-00037 Bolt: 3/4” NC x 2” Lg. AFW-00002 Lockwasher: 3/4” 8100 Lockwasher: 1/2” 7500 Nut: 1/2” NC A10171 Dirt Shield AFB-00015 Bolt: 1/2” x 1-1/2” NC A16024 Pushoff Gate: Model I-130 A123353-K...
- Page 10 I-130 POLE AND AXLE ASSEMBLY KEY NO. PART NO. DESCRIPTION AFB-00018 Bolt,1" NC x 3” lg. A14017 Ball swivel A14021 Spindle (weld on) A13006 Pole AFB-00056 Bolt, 5/16” NC x 2-1/2” A14019 Pin, 1-3/4" x 7-3/8" lg. A14020 Swivel hitch, double lip (optional) A14020A Swivel hitch, single lip 14505...
- Page 11 KEY NO. PART NO. DESCRIPTION A14004 Hub cap AFB-00080 Bolt, 5/16 NC x 1/2s lg. A13007 Wheel, 18 x 16.1 A14015 Bearing cone ( Timken 644 ) A14014 Bearing cup ( Timken 632 ) A14010 A14013 Bearing cup ( Timken 742 ) A14012 Bearing cone ( Timken 749 ) A14011...
- Page 12 KEY NO. PART NO. DESCRIPTION A14004 Hub cap AFB-00080 Bolt, 5/16 NC x 1/2 lg. A10039 Wheel, 16 x 26 Drop Center A14015 Bearing cone ( Timken 644 ) A14014 Bearing cup ( Timken 632 ) A14010 A14013 Bearing cup ( Timken 742 ) A14012 Bearing cone ( Timken 749 ) A14011...
- Page 13 If you have 3 capscrew headcap refer to the next page. ITEM PART ITEM DESCRIPTION A125050-01 Rod 1-3/4” with welded eye A125050-02 Piston A125050-03 Gland, Threaded A125050-04 Lock Nut, 1-1/8” NF A125050-05 Seal Kit, a-f A125050-05a Nylon Wear Ring A125050-05b FSP Seal A125050-05c O-Ring...
- Page 14 IMPORTANT Some units prior to this serial number were upgraded to a H.D. Apron Cylinder by the customer Please determine if the cylinder pins are 1-1/ 2”diameter. If pins are 1” or 1-1/ 4” and is inserted into a thread block ear on the rod end please refer to page next page MODEL I-155 TS...
- Page 15 LEFT & RIGHT SIDE APRON CYLINDER 4 X 13 IMPORTANT PART NO. A123319 Some units prior to this serial number were upgraded to a H.D. KEY NO. PART NO. DESCRIPTION Apron Cylinder by the customer Please determine if the cylinder pins A175H01 Cylinder Barrel are 1-1/2”diameter (page 20) If...
- Page 16 CYLINDER PART NO. A516H114A KEY NO. PART NO. DESCRIPTION A400H17 Lock nut, 1-1/4" NF A400H04 Cast iron ring, 5" OD A400H05 Backup washer, 5" OD A400H06 O-ring, 5" OD x 1/4" A400H07 Piston, 5" OD A60H52 O-ring, 1-1/4" ID x 1/8" A130H28 Shaft, 2"...
- Page 17 KEY NO. PART NO. DESCRIPTION A175H10 Collar A130H30 2 1/2" Rod A130H29 Barrel weldment A140H13 Lock nut (2" - 12) A175H12 Piston A17506 Spacer A175H09 Head A140H07 Rod seal A140H08 Rod wiper A175H07 Wear ring A175H05 Piston seal A175H03 O-ring A175H04 Backup ring A140H14...
- Page 18 HYDRAULIC VALVE IDENTIFICATION Old Valve New Valve Visually there are several thing you can check to ensure you have the correct valve. The new valve (shown on the left) is 6” wide whereas the older valve (shown below) was 5” wide. The new valve utilizes a unload cartridge that sticks outward on the side of the valve.
- Page 19 IMPORTANT This Hyd. Manifold was intergrated into production Nov. 2003 It replaces t A125055 valve which was used S.N. 20750 to 20853 To confirm what valve you have confirm with earlier valve I.D. page HYDRAULIC MANIFOLD ASSEMBLY A125070 S.N. 20853 & above A125070 HYDRAULIC MANIFOLD ITEM # PART NO.
- Page 20 IMPORTANT This Hyd. Manifold has been replaced by A125070 on Nov 2003. To confirm what valve you have confirm with earlier valve I.D. page HYDRAULIC MANIFOLD ASSEMBLY A125055 S.N. 20750 to 20853 COUNTER BALANCE SEQUENCE ITEM NO. PART NO. DESCRIPTION A125055-01 DIRECTIONAL CONTROL VALVE A125055-02...
- Page 21 SETTING THE APRON AND PUSHOFF VALVE The manifold block containing the pushoff sequence valve cartridge and apron sequence valve cartridge is used to control two hydraulic circuits with one hydraulic re- mote. when the tractor hydraulic remote is activated, oil flows first to the apron cylinders until they are fully extended.
-
Page 22: Maintenance Checklist
AINTENANCE HECKLIST 1. Grease all zerks. Every 8 hours of operation. See Lubrication Points section on following page. 2. Greasing the hubs. Re-pack wheel bearings after 600 hrs of operation. Completely clean grease out of hub and bearings every 1200 hours of opera- tion. -
Page 23: Torque Specifications
ORQUE PECIFICATIONS UBRICATION 1. Grease all zerks every 8 hrs of operation with high quality, general-purpose grease. Grease until grease flows from around pin. Lubrication Points (see Ill. on next page) 1. Hitch – Horizontal and vertical pins. 2. Lift Cylinders – Rod end &Trunion; Both left & right sides. 3. -
Page 24: Grease Locations
Grease Locations Grease Twice a Day... -
Page 25: Hydraulic System
YDRAULIC YSTEM Standard Two-Circuit Hydraulic Plumbing The apron cylinders and the push-off cylinder are controlled on the same circuit with the sequence of the operation controlled by a sequence valve. The other hydraulic circuit controls the lift cylinders on the earthmover. *To adjust the sequence valve, see Troubleshooting section. - Page 26 ARTHMOVER The I-130XL was designed to be pushed when equipped with the optional push-bar. How- ever, Ashland Industries, Inc. STRONGLY recommends using extreme caution when pushing the I-130XL earthmover to prevent any unnecessary damage. CAUTION! The I-130XL earthmover must be pushed in a straight line with a maximum of a 100 hp dozer.
-
Page 27: Troubleshooting
ROUBLESHOOTING Introduction With proper care and maintenance, the I-130XL will give many years of reliable service. When a situation arises where the earthmover performance is not satisfactory, this section will give some pointers on finding and correcting the problem. Grease zerk will not take grease. 1. -
Page 28: Limited Warranty Statement
Ashland Industries product to the purchaser, or the date the product is first put into service via a rental agreement or other means, whichever occurs first.
