INSTALLATION INSTRUCTION
VERTICASA CRIMP SET

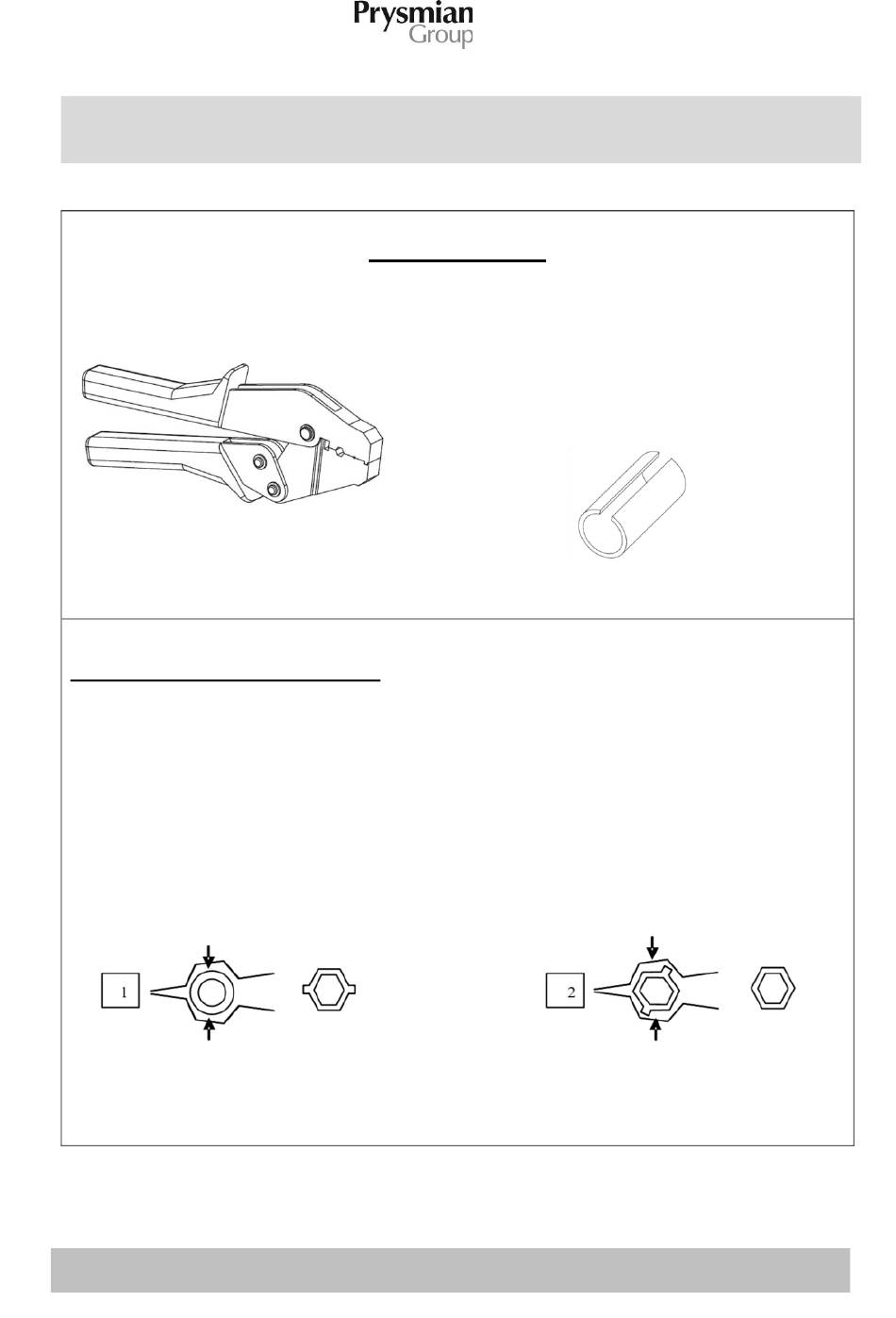

KIT CONTENTS
CRIMP MICRO TUBE
CRIMP PLIERS
METAL CRIMP RING 5 mm :
THE CRIMP PLIERS ARE USED TO CRIMP 5 mm TUBE.
THE CRIMP PROCESS HAS TO BE PERFORMED IN TWO STEPS LIKE
SHOWN IN THE PICTURE FOR AVOIDING THE WING CREATION.
Page 1 of 10
th
IP115
Issue Number: 03
Date: 13
January 2023
Advertisement
Summary of Contents for Prysmian VERTICASA CRIMP SET
- Page 1 INSTALLATION INSTRUCTION VERTICASA CRIMP SET KIT CONTENTS CRIMP MICRO TUBE CRIMP PLIERS METAL CRIMP RING 5 mm : THE CRIMP PLIERS ARE USED TO CRIMP 5 mm TUBE. THE CRIMP PROCESS HAS TO BE PERFORMED IN TWO STEPS LIKE SHOWN IN THE PICTURE FOR AVOIDING THE WING CREATION.
- Page 2 INSTALLATION INSTRUCTION VERTICASA CRIMP SET 1 ESFU CRIMPING PREPARATION: THE CRIMP PLIERS ARE USED TO CRIMP A MICRO TUBE ONTO THE PULLING ROPE PLACED INSIDE THE VERTICASA DROP TUBE AND TO ONE OR TWO FIBRE MODULE(S). THE CRIMP PLIERS ARE SUPPLIED ALREADY EQUIPPED WITH 50 MICRO TUBES.
- Page 3 INSTALLATION INSTRUCTION VERTICASA CRIMP SET SLIDE THE CRIMP MICRO TUBE TO THE ZONE WHERE IT COULD ENVELOPE BOTH THE PULLING ROPE AND THE FIBRE MODULE. TO HAVE AN OPTIMAL STRENGTH IT IS REQUIRED THAT THE CRIMP MICRO TUBE BE DISTANT 30 / 40 MM FROM THE PULLING ROPE BUTT.
- Page 4 INSTALLATION INSTRUCTION VERTICASA CRIMP SET PRESS BY HAND THE CRIMP MICRO TUBE FOR CLOSING THE OPENING LIKE SHOWN IN THE PICTURE. Page 4 of 10 IP115 Issue Number: 03 Date: 13 January 2023...
- Page 5 INSTALLATION INSTRUCTION VERTICASA CRIMP SET PUT THE CRIMP MICRO TUBE INSIDE THE SLOTTED POSITION OF THE CRIMP PLIERS: IT’S RECCOMENDED THAT THE MICRO TUBE CUT IS POSITIONATED UPWARD LIKE SHOWN IN THE PICTURE. IF THE CRIMP PLIER HAS MORE THAN ONE CRIMPING POSITION USE THE 1.2 MM POSITION...
- Page 6 INSTALLATION INSTRUCTION VERTICASA CRIMP SET 2 ESFU CRIMPING PREPARATION: FEED THE FIBRE MODULES INTO THE PULLING ROPE LIKE SHOWN IN THE PICTURE. IT’S RECOMENDED NOT TO ALIGN THE TWO BUTTS OF THE FIBRE MODULES BUT MAINTAIN 2/3 MM BETWEEN THE TWO BUTTS.
- Page 7 INSTALLATION INSTRUCTION VERTICASA CRIMP SET ENLARGE WITH THE TIP OF A SCREWDRIVER ONE SIDE OF THE CRIMP MICRO TUBE. THIS DEFORMATION WILL HELP WHEN THE CRIMP MICRO TUBE WILL BE POSITIONATED ON THE PULLING ROPE. CRIMP MICRO TUBE SCREW DRIVER TIP...
- Page 8 INSTALLATION INSTRUCTION VERTICASA CRIMP SET INSERT THE PULLING ROPE INSIDE THE CRIMP MICRO TUBE ACROSS ITS LONGITUDINAL OPENING. Page 8 of 10 IP115 Issue Number: 03 Date: 13 January 2023...
- Page 9 INSTALLATION INSTRUCTION VERTICASA CRIMP SET SLIDE THE CRIMP MICRO TUBE TO THE ZONE WHERE IT COULD ENVELOPE BOTH THE PULLING ROPE AND THE FIBRE MODULE. Page 9 of 10 IP115 Issue Number: 03 Date: 13 January 2023...
- Page 10 Prysmian Group: any modification or alteration afterwards of product may give different result. The information is believed to be correct at the time of issue. Prysmian Group reserves the right to amend the information within this Installation Guide without prior notice. This Installation Guide may include inaccuracies,...
