Askari NANO Operator's Manual

To send a Panic signal from the Nano
8) Copy the master code from another Nano
Copy Panic Code
1 Enter programming mode and select menu 8(press button 8).
2 The Nano will emit 2 double beeps with a low tone. lights 1—4 will light up.
3 Select menu 1 (Push Button 1).
4 Press 'panic' on the master Nano (press LEFT and RIGHT buttons
simultaneously).
5 The slave Nano will emit 2 double beeps and a low tone to confirm copying.
Nano audible tones
When the Nano receives intruder signals the corresponding zone light will flash and
the zone will beep as follows:
Zone 1 – 1 beep
Zone 2 – 2 beeps
Zone 3 – 3 beeps
Zone 4 – 2 double beeps
Zone 5 – 1 beep with a low tone
Zone 6 – 2 beeps with a low tone
Zone 7 – 3 beeps with a low tone
Zone 8 – 2 double beeps with a low tone
If there is a Tamper condition on any of the Zones the zone trigger tone will be
followed by a high tone
Press Left and Right buttons simultaneously, on release of both buttons a Panic
signal is sent to other components of the system.
Charging the Nano
1 The Nano is supplied with a 5 volt DC docking station.
2 Approximate charging time for an empty battery is 3 hours.
3 Approximate fully charged battery life is 48 hours.
The Nano is splash proof, but not immersible.
NANO
NANO

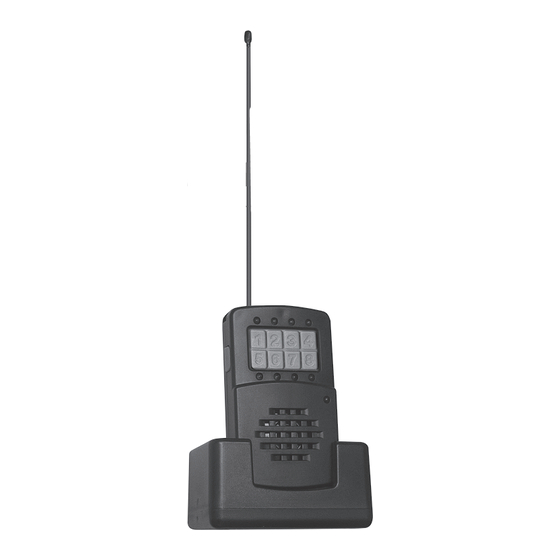

ASKARI NANO
Receiver
• Monitors up to 8 Scouts.
• Gives audible and visual indication of the activated Scout
• Stealth mode function
• In its learning format it will receive programming data
from a Scout, or another Nano.
Transmitter
• Transmits 11different instructions to
Scout, Relays, Lights or Alarm I/O.
• For programming purposes, it can
transmit any programmed Scouts to
another Nano, Alarm I/O Interface
or Relay.
• It can transmit configuration, sensitivity
and other instructions to a
programmed Scout.
• Transmits its own master code
to enable the cloning in of
other Nanos.
www.askaribeams.co.za
