M2200 Bluetooth Module Installation Guide
M2200
To install the Bluetooth module in the M2200, first ensure that the
M2200 is unplugged from the power supply.

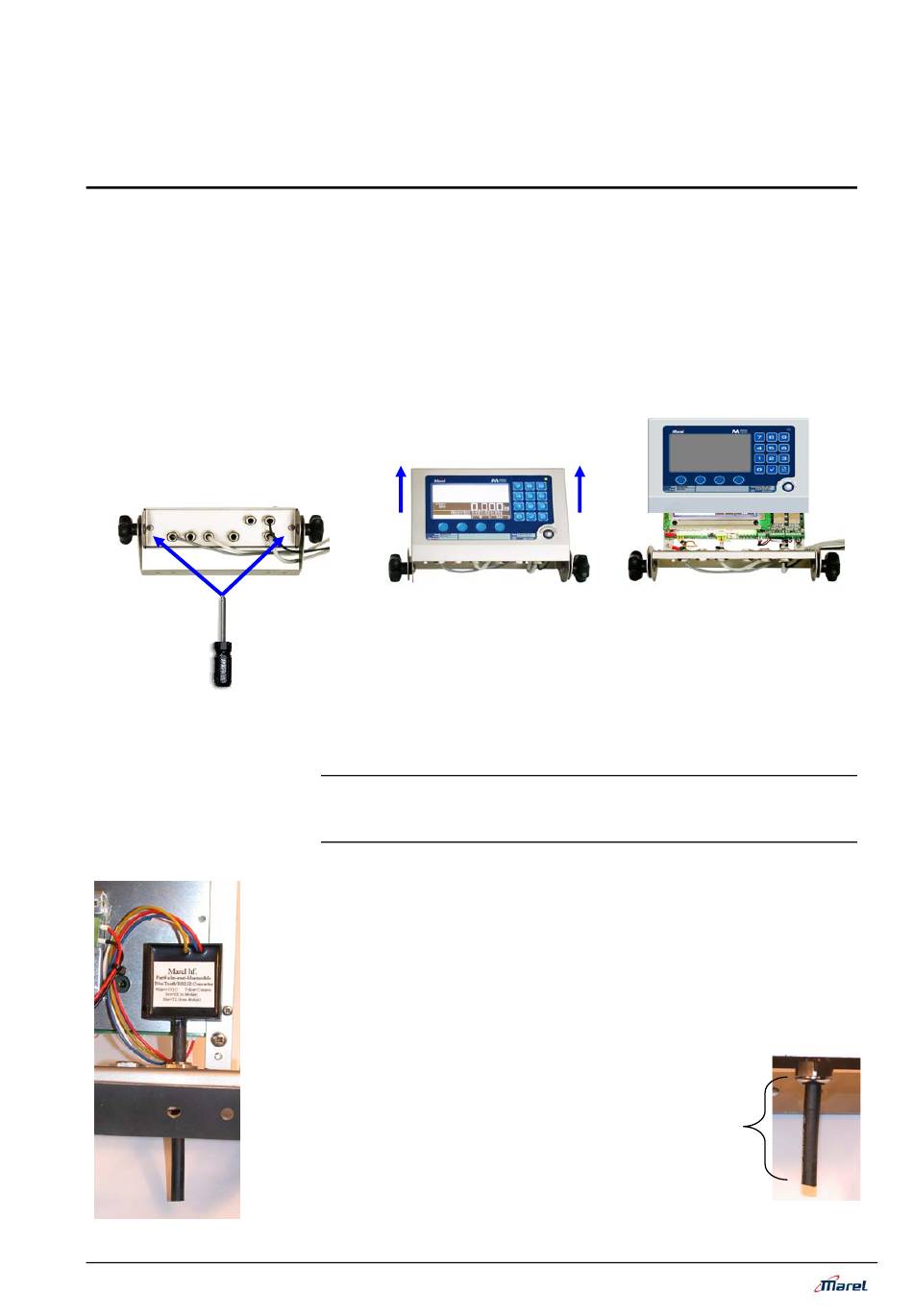

Step 1
Remove the top cover from the M2200.
When removing the top cover, note that the keyboard is connected to the
electronics card on the top right-hand side. Disconnect the keyboard
connectors in order to completely remove the cover.
Step 2
Install the Bluetooth module on the rear side of the M2200 structure. Put
the antenna through a cable gland, and keep in mind that the antenna
must extend at least 35 mm from of the M2200 housing. Remember to
tighten the cable gland.
Minimum
35 mm
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Marel M2200
Summary of Contents for Marel M2200
- Page 1 Step 2 Install the Bluetooth module on the rear side of the M2200 structure. Put the antenna through a cable gland, and keep in mind that the antenna must extend at least 35 mm from of the M2200 housing. Remember to tighten the cable gland.
- Page 2 Yellow, GND, Connect to RS-232 Common White, +VIN, Connect to +5V Power Step 4 Return the cover to the M2200 bottom plate, and make sure you reconnect the keyboard connectors to the V2200 board. Thighten the screws, and finally reconnect the power.
