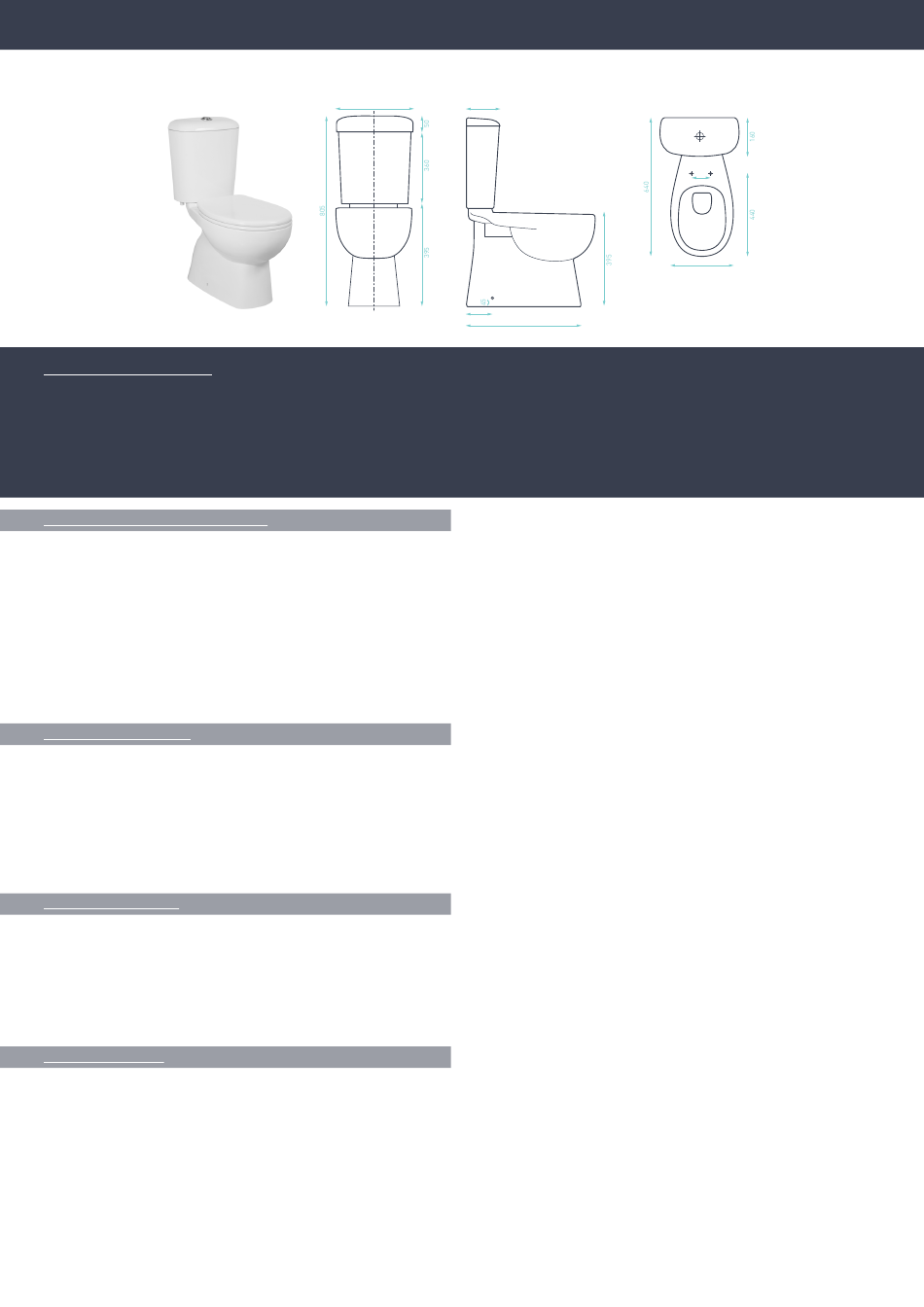

decina NOVARA NOTSCCS Installation Instructions Care And Maintenance

INSTALLATION INSTRUCTIONS & CARE & MAINTENANCE
NOVARA
RIMLESS CLOSE COUPLED TOILET SUITE
IMPORTANT INFORMATION
• Installation must be undertaken by a licensed plumber and must be installed in compliance with AS/NZS 3500.1 and AS/NZS 3500.2.
• If the product has not been installed in accordance with AS/NZS 3500.1 and AS/NZS 3500.2 instructions the warranty will be
invalidated and service will be charged for.
• Do not use cement or cement mix to bed pan as this will void the warranty.
• Before installation please check all components and inspect for damage. Any damage claims after installation WILL NOT BE ACCEPTED.
PAN PREPARATION & INSTALLATION
1) Fit the cistern fixing lugs to the cistern fixing holes.
2) Measure the position of the sewer connection from the wall (it should be 140mm).
3) Install a suitable approved outlet connector (not supplied).
4) Fit the pan into the connector and with a pencil mark the outline of the foot and the center position of pan fixing holes. Loosely fit the
cistern onto the pan and ensure it fits back to the wall.
5) Remove the cistern. Remove the pan and measuring in 25mm from the foot line position the fixing brackets. Mark and drill the fixing
bolt holes and drill.
6) Screw the fixing brackets to the floor.
7) Fit the pan back into the pan connector and screw the fixing screws into the floor brackets.
CISTERN INSTALLATION
1) Place the cistern in position on top of the pan, against the wall and from the inside of the cistern, screw the cistern fixing screws
through the cistern into the pre-fitted lugs in the pan and tighten, using a long-handled screw driver.
2) Connect a flexible hose (not supplied) from the stop cock. Flush a substantial amount of water into the pan to ensure no grit is in the
water lines. Turn off the water at the stop cock.
3) Connect the flexible hose to the inlet valve, protruding from the bottom of the cistern.
4) Turn on the water supply and fill the cistern, and flush a few times to ensure correct operation and no leaks.
5) Fit the cistern lid, and again flush to ensure correct operation.
INSTALLING THE SEAT
1) Remove the seat and fittings from the packaging. Insert the top fixing plugs into the seat bolt holes. Place the hinge blocks over the
holes and loosely fit the screws.
2) Fit the seat onto the hinge pins and slowly allow the seat and cover to lower to the closed position (DO NOT Force the Seat Down).
3) Adjust the position of the seat to line up with the rim of the pan and tighten the seat fixing screws.
4) Lift the seat and cover to the open position and remove the seat from the hinge pins by depressing the two chrome buttons.
5) Place the stainless-steel covers over the hinge blocks and refit the seat to the hinge pins. Allow the seat to lower to the closed position.
CLEAN UP & FINISH
1) Clean up all pencil lines and run a bead of Silicone around the foot of the pan.
2) Fit the cistern lid to the top of the cistern.
3) Wipe down the entire installation with warm soapy water and rinse with clean water.
PLUMBERS, PLEASE ENSURE A COPY OF THE INSTALLATION INSTRUCTIONS IS LEFT WITH THE END USER FOR FUTURE REFERENCE.
NOTSCCS
365 365
365 160
285
160 160
10
Ø 10 10
Ø Ø
285
285
535
535 535
Ø50 Ø50
Ø50
Ø15 Ø15
Ø15
155 155 155
365
365
365
