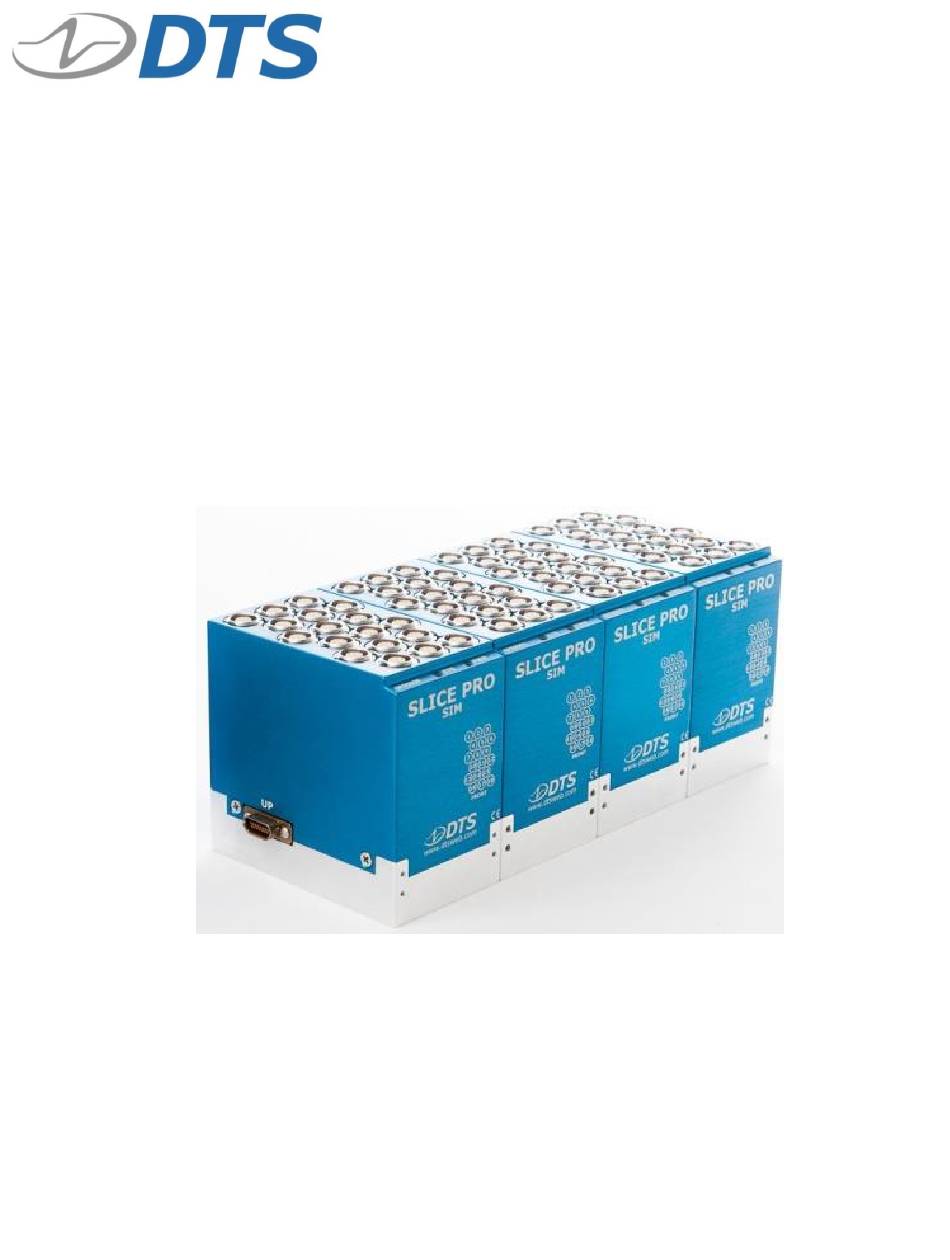

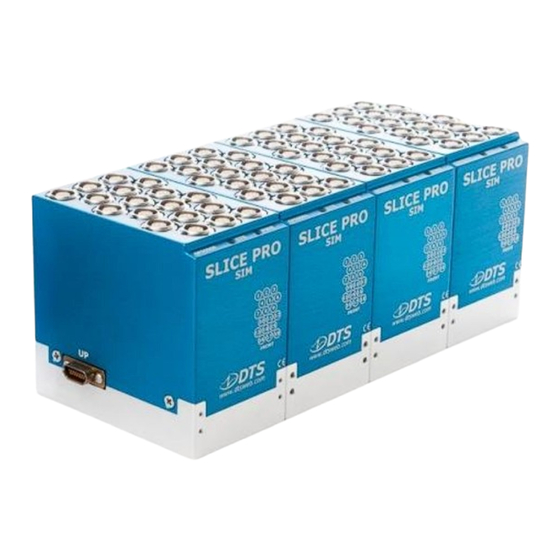

- Page 1 SLICE PRO SIM (Gen2.5) User’s Manual April 2020 13000-72121-MAN (Rev. 5) © Diversified Technical Systems, Inc. - All Rights Reserved...
-
Page 2: Table Of Contents
April 2020 Table of Contents DTS Support ....................4 Introducing the SLICE PRO SIM ..............5 Overview of SLICE PRO SIM Features ............. 5 Sensor Connectors ..................5 Supported Sensor Types ................6 Input Range .................... 6 Excitation Sources ..................7 Bridge Completion .................. - Page 3 SLICE PRO SIM (Gen2.5) User’s Manual April 2020 Appendix B: Mechanical Specifications ............18 Appendix C: SLICE PRO SIM Sensor Connections ......... 19 Appendix D: How to Calculate Data Storage Duration ........21 Appendix E: Declaration of CE Conformity ............ 22 support.dtsweb.com...
-
Page 4: Dts Support
DTS has support engineers worldwide with extensive product knowledge and test experience to help via telephone, e-mail or on-site visits. The best way to contact a DTS support engineer is to submit a request through the DTS Help Center portal (support.dtsweb.com). -
Page 5: Introducing The Slice Pro Sim
Appendix D provides information on how to calculate data storage duration. Sensor Connectors The SLICE PRO SIM is available with LEMO 1B or Tajimi 7-pin sensor input connectors. See Appendix C for pin assignments and detailed sensor connection information. -
Page 6: Supported Sensor Types
April 2020 Supported Sensor Types The SLICE PRO SIM supplies 2 V and 5 V excitation up to 20 mA and supports many types of sensors including accelerometers, load cells and pressure sensors. The following general sensor types are supported: •... -
Page 7: Excitation Sources
Shunt Emulation SLICE PRO SIM channels contain a shunt emulation circuit, effectively eliminating the need for conventional shunt resistors to perform shunt checks. When “Emulation” is chosen as the shunt calibration method within SLICEWare, the software injects a precisely-calculated current into the sensor to create an expected deflection of the sensor's output. -
Page 8: Sampling Rates
0.39-2500 mV Memory Size With 16 GB of flash memory (15 GB available for data storage), the SLICE PRO SIM can record ~14 minutes of data at the maximum sampling rate (9 channels at 1 Msps or 18 channels at 500 ksps). Since the recording capacity is very large, it is generally best to limit sampling rates and event durations to the minimum necessary to avoid large and cumbersome data files. -
Page 9: Leds
SLICE PRO SIM (Gen2.5) User’s Manual April 2020 LEDs The SLICE PRO SIM has two LEDs. At system power up, the red-green-blue LED initialization sequence is performed by the status LED followed by the power LED. LED behavior is summarized in the tables below. - Page 10 SLICE PRO SIM (Gen2.5) User’s Manual April 2020 Firmware version A1R4 or higher Battery Charge Power up Status Charging Discharging ..(0.4 Hz) (1 Hz) >90% 50% - <90% 20% - <50% <20% or FAULT Firmware version A1Q1 or lower...
-
Page 11: Basic Care And Handling
Shock Rating The SLICE PRO SIM is rated for 100 g, 12 ms half-sine duration, in all axes. Mounting Considerations The unit should be securely bolted to the test article or dynamic testing device to provide the best shock protection. -
Page 12: Power Management
Power-up and Power-down Procedures The SLICE PRO SIM is powered up when the proper signal is connected at the UP interface connector. This is typically accomplished via a SLICE PRO Controller. Power- up of the module takes 5 seconds to 2 minutes (this depends greatly on the type of support.dtsweb.com... - Page 13 SLICE PRO SIM (Gen2.5) User’s Manual April 2020 Controller in use), after which communication is enabled. To restart, turn off the system and wait ~30 seconds before reinitializing. If a system is armed for data collection, it will remain on until it is disarmed or power reserves are exhausted. An incomplete power-down/power-up cycle can result in errors, so be certain to follow proper procedures.
-
Page 14: Communication Features
April 2020 Communication Features Communications with the SLICE PRO SIM is accomplished via 1) a SLICE PRO USB Controller and USB comm cable (USB A to USB B) or a SLICE PRO Ethernet Controller and Ethernet (REC) comm cable (P/N 10700-0015x), and 2) a PC running SLICEWare version 1.08 or higher. -
Page 15: Data Collection Concepts
200 g. Using level trigger, and Circular Buffer mode, the SLICE PRO SIM can support this or any level-trigger signal on any channel. Finally, if the SLICE PRO SIM remains connected to the PC during data collection, the control software can be used to begin data collection. - Page 16 SLICE PRO SIM (Gen2.5) User’s Manual April 2020 The table below summarizes the data collection modes and event/triggering options. Supports T=0 T=0 methods Data record window Start Record supported Hardware (CC), User-defined pre- and post- T=0 Circular Buffer software (PC) or...
-
Page 17: Appendix A: Connector Information
SLICE PRO SIM (Gen2.5) User’s Manual April 2020 Appendix A: Connector Information UP interface connector* DOWN interface connector (Omnetics A99077-015; (Omnetics A98000-015; MMDS-015-N06-SS) MMDP-015-N00-SS) (panel view) (panel view) Function 12.6 VDC in (UP)/out (DOWN) 12.6 VDC in (UP)/out (DOWN) Ground... -
Page 18: Appendix B: Mechanical Specifications
SLICE PRO SIM (Gen2.5) User’s Manual April 2020 Appendix B: Mechanical Specifications Weight: ~726 g (26 oz) Units in mm (inches) Torque spec: 84 in-lb (M6) support.dtsweb.com 13000-72121-MAN (Rev. 5) -
Page 19: Appendix C: Slice Pro Sim Sensor Connections
* IEPE not supported with this option. SLICE PRO SIM EEG.1B.308.CLL (panel view) (Suggested cable connector P/N: FGG.1B.308.CLAD42) Pin assignments: Option 39* Case -Sig +Sig -IEPE +IEPE Shield * Compatible with legacy TDAS DTS standard sensors (option 01). support.dtsweb.com 13000-72121-MAN (Rev. 5) - Page 20 SLICE PRO SIM (Gen2.5) User’s Manual April 2020 SLICE PRO SIM EEG.1B.307.CLL (panel view) (Suggested cable connector P/N: FGG.1B.307.CLAD42) Pin assignments: Option 42* Case -IEPE/-ID +Sig -Sig +IEPE -ID/Shield * Compatible with legacy TDAS option A sensors if external shunt resistors are not installed.
-
Page 21: Appendix D: How To Calculate Data Storage Duration
With 15 GB available for data storage, there are a total of 7,500 M samples available in each SLICE PRO SIM (1 sample = 2 bytes). All data channels are recorded even if they are not needed for your test. - Page 23 Updated sensor connector option 39 (Appendix C).Pin 5 was –ID/Shield; pin 7 was –IEPE/Shield. Also updated page 4. (Rev 3) 12 May 2014 Updated LED tables and DTS Support boilerplate. Corrected weight. (Rev 2) 13 Jan 2014 Revised IEPE input range (under Sampling Rates) and Appendix D. (Rev 1)
