XFCAM1080PHD Auto Focus HDMI Camera User Manual
1 XFCAM1080PHD's Basic Characteristic
XFCAM1080PHD is a multiple interfaces (HDMI+WiFi+SD card, so
CMOS camera with autofocus function
sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or
computer.
For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the
HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image,
play the video ital.
In HDMI output, the camera embedded Auto/Manual focus function can obtain the clear image at ease.
No hand rotation of the microscope Coarse/Fine knob is needed.
For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the
camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView,
you can control the camera, process the image as ToupTek's other USB series camera.
The XFCAM1080PHD's basic characteristic is as follows:
All in 1( HDMI+WiFi) C-mount camera with Sony high sensitivity CMOS sensor;
Auto/Manual focus with the movement of the sensor;
For HDMI application, with built-in multiple-language XCamView software. The camera characteristic
can be controlled by XCamView through the USB mouse. The other basic processing and control can
also be realized by the XCamView;
XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera
(F
means autofocus) and it adopts ultra-high performance Sony CMOS

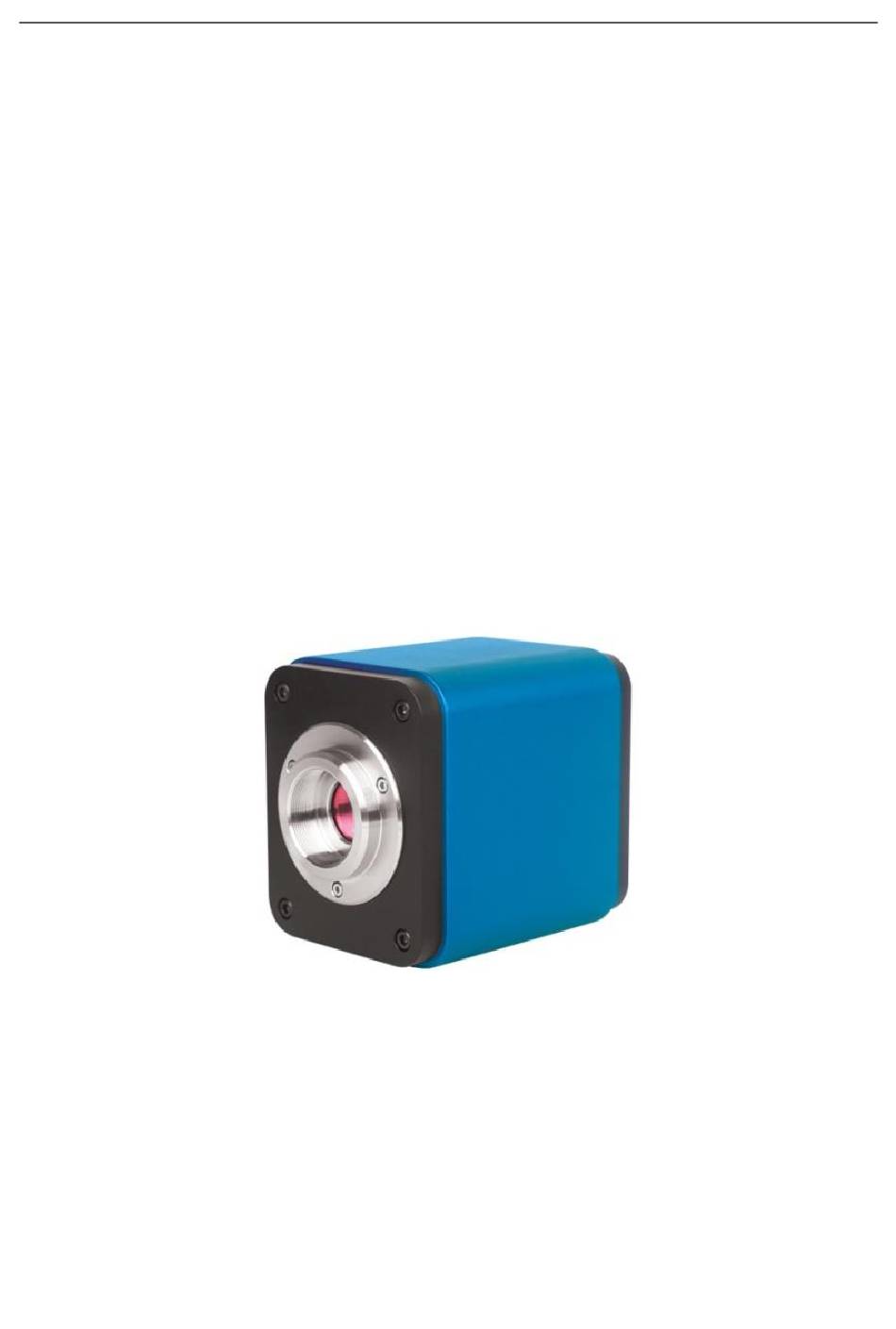

Figure 1 XFCAM1080PHD
1 / 20
X
here means multiple interfaces)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ToupCam XFCAM1080PHD and is the answer not in the manual?

Questions and answers

Summary of Contents for ToupTek ToupCam XFCAM1080PHD

  • Page 1 For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other USB series camera. Figure 1 XFCAM1080PHD The XFCAM1080PHD’s basic characteristic is as follows:...
  • Page 2 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera ⚫ 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application; ⚫ For HDMI application, 2.0M resolution image(1920*1080 XFCAM1080PHD) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved; ⚫...
  • Page 3 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera 1.1 XFCAM1080PHD Datasheet(1) Sensor & G Sensitivity Order Code Pixel(μm) FPS/Resolution Binning Exposure Size(mm) Dark Signal 1120mv with 60/1920*1080 1080P/2M/Sony 1/30s (HDMI) XFCAM1080PHD IMX185(C) 3.75x3.75 0.06ms~918ms 0.15mv with 25/1920x1080 XF1080D 1/1.9"(7.20x4.05) 1/30s (WiFi) C: Color;...
  • Page 4 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Operating Environment Operating Temperature(in -10~ 50 Centidegree) Storage Temperature(in -20~ 60 Centidegree) Operating Humidity 30~80%RH Storage Humidity 10~60%RH Power Supply DC 12V/1A Adapter 4 / 20...
  • Page 5 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera 1.2 XFCAM1080PHD and Microscope Figure 2 XFCAM1080PHD and Its Back Panel Figure 3 Different Views of XFCAM1080PHD Figure 4 XFCAM1080PHD and Microscope 5 / 20...
  • Page 6 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera 1.1.1 Dimension of XFCAM1080PHD Figure 5 Dimension of XFCAM1080PHD 6 / 20...
  • Page 7 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Packing Information for XFCAM1080PHD 1.1.2 Figure 6 Packing Information of XFCAM1080PHD Standard Packing List A Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box) B XFCAM1080PHD Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338...
  • Page 8 108013/FTA075 Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; 108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube 108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube...
  • Page 9 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Extension of XFCAM1080PHD with Microscope or Telescope Adapter 1.1.3 Extension Picture Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; C-mount Camera Web camera and security video; Microscope imaging; Microscope Camera Telescope Camera 9 / 20...
  • Page 10 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera The XFCAM Camera Rear Cover Function Figure 7 The Layout of XFCAM1080PHD Camera Rear Cover XFCAM1080PHD is a HDMI camera with auto focus function. Through the precise control of the sensor position, the image can be focused automatically for the stereo or biological microscope. However, this autofocus principle will destruct the microscope’s imaging conjugate principle and we think only a minor focus adjustment can be made to keep the image with high quality.
  • Page 11: Wifi Mode

    XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Quick Instructions for XFCAM1080PHD camera Before starting the camera please connect the standard XFCAM1080PHD C-mount camera to camera adapter and connect it to the microscope’s 3 tube which will relay microscope object’s middle image to the camera sensor. WiFi Mode Plug power cable into...
  • Page 12 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Brief Introduction of XFCAM1080KPD UI and Functions XCAM1080KPD UI shown in Fig. 8 includes the Camera Control Panel on the left side of the video window, the Measurement Toolbar on the upper side of the video window, the Synthesis Camera Control Toolbar on the bottom of the video window and the Auto Focus Control Panel...
  • Page 13 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera The Camera Control Panel on the Left Side of the Video Window 3.3.1 Camera Control Panel Function Function Description Capture or Snap image from the current video window Snap Record video from the current video window Record When Automatic Exposure...
  • Page 14: Horizontal Flip

    XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Icons and Functions of the Synthesis Camera Control Toolbar at the Bottom of the 3.3.2 Video Window Icon Function Icon Function Zoom In the Video Window Zoom Out the Video Window Horizontal Flip Vertical Flip Display Video Freeze...
  • Page 15 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Global: Used for setting digits behind the decimal point for measurement results; Calibration Line Width: Used for defining width of the lines in measurement and calibration; Color: Used for defining color of the lines in measurement and calibration; EndPoint Type: Used for defining shape of the endpoints of lines in measurement and calibration: Null means no endpoints, rectangle means rectangle type of endpoints.
  • Page 16 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Figure 13 Comprehensive Setting of Video Encode Setting Page MJPEG: Save recorded videos in MJPEG coded format; H264: Save recorded videos in H264 coded format; Figure 14 Comprehensive Setting of SD Card Setting Page Current File System: The maximum file FAT32...
  • Page 17 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Simplified Chinese: Set language of the whole software into Simplified Chinese; Traditional Chinese: Set language of the whole software into Traditional Chinese; Korean: Set language of the whole software into Korean; Thailand: Set language of the whole software into Thailand; The Measurement Toolbar on the Upper Side of the Video Window 3.3.3 Measurement Toolbar...
  • Page 18 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera switch of the Float/ Fix Measurement Toolbar Define measuring object in mode Show up/ Hide Select the desired Measurement Unit Choose the same as the microscope to ensure accuracy of measurement Magnification result when measurement unit is not in Pixel unite Object Select Point Angle...
  • Page 19 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera sure the video is clear. Make sure the magnification in the software stays in accordance with microscope magnification, and then select the corresponding Measurement Unit doing the measurement. Export the measurement information to file (*.csv) Delete All the Measurement Objects Setting...
  • Page 20 XFCAM1080PHD Auto Focus HDMI C-mount CMOS Camera Auto Focus Control Panel on the Right Side of the Video Window 3.3.4 With Auto Focus button checked, the system will start autofocus according Auto Focus to status of the specimen till it stays in focus; With Manual Focus checked, users should reset position of the camera sensor...
