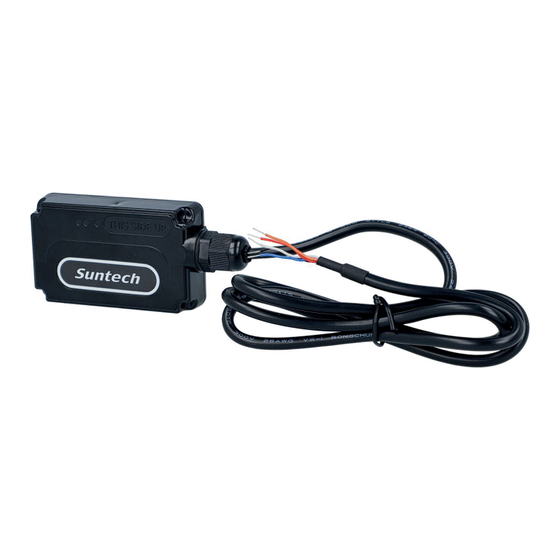

Americaloc Suntech ST4345 Series Manual

Welcome to AMERICALOC
IMPORTANT:
detect ignition by motion.
If you have any questions or need help, please contact us at support@americaloc.com. Our
helpful, experienced customer service agents are here to answer your questions, explain our
services, and help you get the most of your GPS monitoring service. Your complete
satisfaction is our main priority!
at https://us.americaloc.com/legal_info.html
Appearance:
Activate your account and Americaloc ST4340 Series (ST4345) device:
Go to www.americaloc.com, select
1
"Activate"
button.
Go to www.americaloc.com and
log in with the username and
password established in the
previous step.
Your device already comes with a SIM card installed.
Fill in the required information. The IMEI
2
code can be found below the bar code
that is printed on the back of your device.
Your account will now be ready to use.
Purchase one of our service plans by
4 clicking the "Click to pay service" button.
A window will open to provide you with
payment instructions.
Please do not remove the SIM card.
LED behavior:
Device Status
Connected
CEL
No network
(blue)
Weak mobile
network signal
No SIM card
Connected
GPS
(red)
No GPS signal
Installation Diagram:
Recommendation: For the best results, we recommend the installation is done by an auto electrician.
Best place: Under front dashboard
-
8 V-32V
GROUND
Ignition Positions
1 st
th
4
2 ) Accesories
nd rd
3
3 ) Run (Use this one) rd nd
2
st
4 ) Start th
1
Note: Cables that are not used in this installation must be individually cut and covered with
black/electrical tape to avoid short circuit.
The blue wire is used for ignition detection. It is strongly recommended to connect this wire to the
ignition module at the "RUN" position as shown above. If you do not want to use this cable, please
Blink Count
1
4
6
7
1
4
Device Vin
PINOUT
IGNITION
1. Vin, Red
2. GND, Black
3. IGN, Blue
