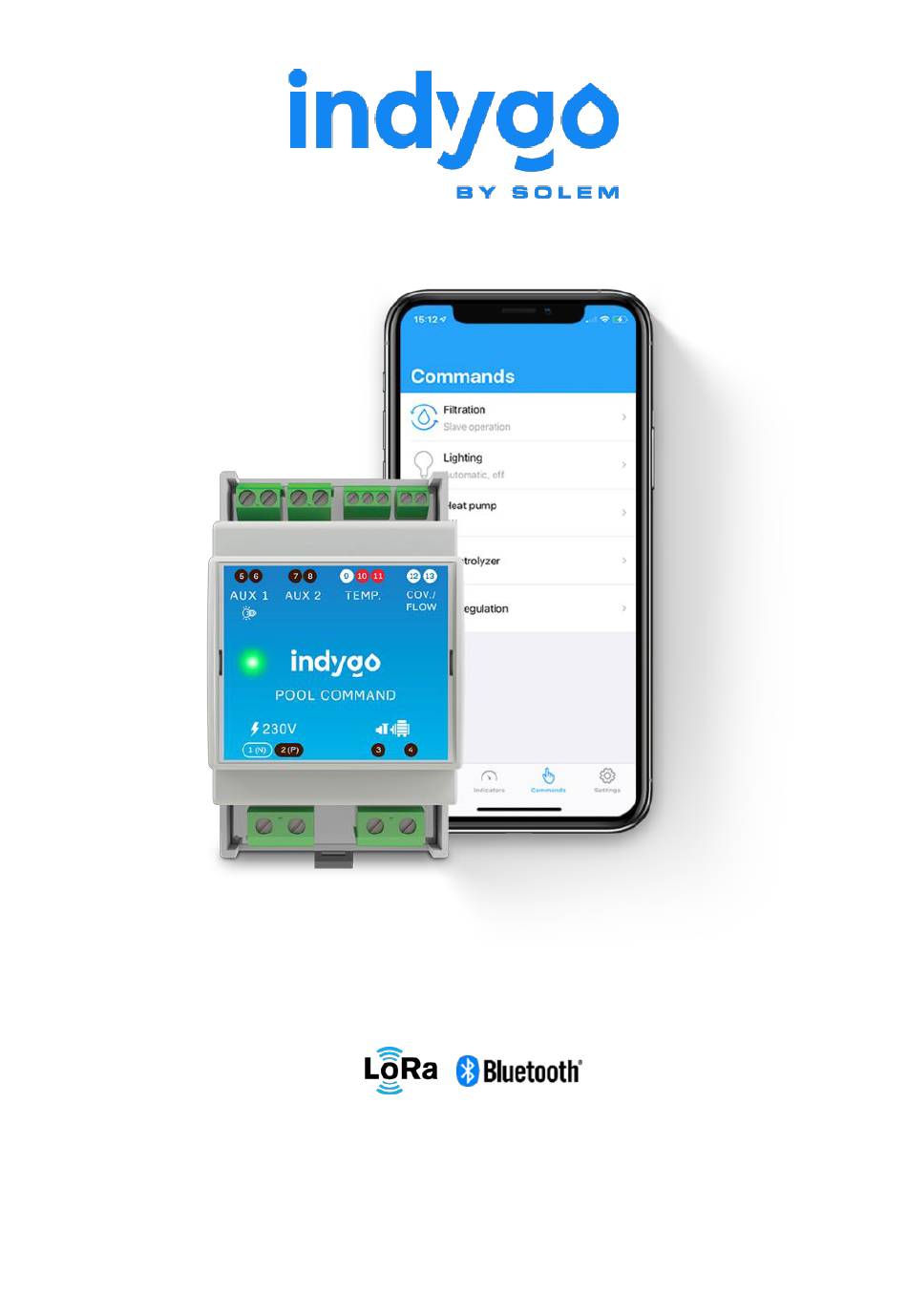

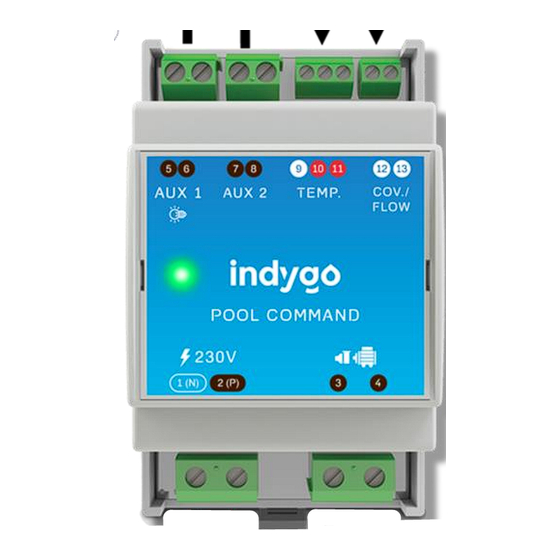

- Page 1 Smart Connected Pool Timer POOL COMMAND Installation & User Manual POOL COMMAND-USER MANUAL-EN-V3.2-211021...
-
Page 2: Table Of Contents
Table of contents IMPORTANT INSTRUCTIONS AND REMINDERS ........................3 GENERAL PRESENTATION ..............................3 PACKAGE CONTENTS ................................. 4 POOL COMMAND SPECIFICATIONS............................ 4 PRECAUTIONS FOR USE ..............................5 MODULE CONNECTION ..............................5 .............................. 5 ONNECTING THE FILTRATION PUMP ............................6 ONNECTING THE TEMPERATURE PROBE ............................ -
Page 3: Important Instructions And Reminders
1 - Important Instructions and Reminders IMPORTANT! The installation of the POOL COMMAND module must be carried out by an authorized professional in accordance with the standards in force in the country of installation. During its installation, as well as during any technical intervention on it, the electrical installation of the swimming pool must be switched off. -
Page 4: Package Contents
3 - Package contents • The POOL COMMAND box • 1 water temperature probe (type PT100) • 1 ½ probe holder • 1 support collar Ø50-½ (products manufactured from 01/02/21) • A quick start guide 4 - POOL COMMAND specifications The POOL COMMAND timer has: •... -
Page 5: Precautions For Use
5 - Precautions for Use IMPORTANT! When installing the module, as well as during any technical intervention on it, the electrical installation of the swimming pool must be switched off. Only a qualified person can intervene on the device in the event of a breakdown or to ensure maintenance. -
Page 6: B/ Connecting The Temperature Probe
Finally, you can also install the POOL COMMAND module instead of the pool timer, respecting the following connection diagram : B/ Connecting the temperature probe The temperature probe must be installed on a paddle clamp positioned in line after the filter and before any treatment system (salt chlorination cell, heat pump). -
Page 7: C/ Connecting The Automatic Cover
C/ Connecting the automatic cover Connect the cover limit switch to the cover input. The connection direction can be done indifferently. If your limit switch is connected to a salt chlorinator, you can make the following connection: D/ Connecting auxiliaries 1 & 2 POOL COMMAND enables controlling two auxiliary equipment such as: •... -
Page 8: A - Connecting A Projector
a - Connecting a projector If the projector is connected to a switch, it is possible to keep it and connect the projector to the POOL COMMAND by bypassing the phase connecting the light switch to the transformer as shown below. In this way, it is still possible to turn on the lighting manually. - Page 9 The connection of POOL COMMAND to a heat pump can be done in two different ways. • HEAT PUMP WITH ON / OFF REMOTE CONTROL INPUT If main board of the heat pump has an ON/OFF remote-control input (dry contact type), connect the AUX1 or AUX2 terminal block as follows :...
- Page 10 • HEAT PUMP WITHOUT ON / OFF REMOTE CONTROL INPUT If the heat pump does not have an ON/OFF remote-control input, then use the heat pump flowswitch by connecting it in series to the AUX 1 or AUX2 terminal block of the POOL COMMAND as follows:...
-
Page 11: C - Connecting A Salt Chlorinator
c - Connecting a salt chlorinator : WARNING! Salt chlorinators should only operate when there is flow through the chlorination cell. Also, the electrical connection of a salt chlorinator must always be made in such a way as to guarantee the operation of the filtration pump during the operation of the salt chlorinator. -
Page 12: D - Connecting A Hydraulic Robot
d - Connecting a hydraulic robot: WARNING! Hydraulic robots (with booster pump) should only operate when the filtration pump is running. Also, the electrical connection of a hydraulic robot to the POOL COMMAND module must always be made in such a way as to guarantee the simultaneous operation of the filtration pump and the robot booster pump. -
Page 13: Commissioning Phase
7 - Commissioning phase A/ Downloading MyIndygo application 1. On your smartphone and / or tablet, go to your store 2. Download MyIndygo application 3. Check that Bluetooth is activated before starting the commissioning. B/ Creating your account on the application 4. -
Page 14: E/ Pairing The Pool Command Timer On An Existing Account
b. Cover sensor in "Normally open" (standard) or "Normally closed" mode. 19. If you have installed an LRMB-POOL radio communication antenna, at the end of the installation, the application performs a communication test to verify that the POOL COMMAND module enables communicating with the LRMB-POOL antenna. -
Page 15: G/ Bluetooth Pairing Of Pool Technology Ipx Water Treatment Device
G/ Bluetooth Pairing of POOL TECHNOLOGY IPX water treatment device : IMPORTANT ! Pairing the POOL COMMAND with a compatible Bluetooth device is only possible if the POOL COMMAND is associated with an LRMB-POOL antenna 1) Using the application, turn on the filtration so that the treatment device operates during the association phase. - Page 16 Thermo-adaptative Filtration Models Standard Cycle Standard Cycle -10% Standard Cycle -25% Standard Cycle -35% Standard Cycle -50% The pool freeze Protection mode automatically activates filtration to prevent water from freezing in the pipes. The operation of the frost protection mode is defined as follows: o Water Temperature <4°C: filtration runs for 15 minutes every 2 hours.
-
Page 17: I/ Lighting Programming
I/ Lighting programming Stop lighting AUTO WITH TIME This mode enables defining several daily ranges for automatic lighting PROGRAMMING programming, and to assign these ranges to the different days of the week. J/ Heat pump programming NB : activating the heat pump automatically starts the filtration Stop heat pump ON (Forced activation) Heat pump activation. -
Page 18: N/ Control Of A Compatible Bluetooth Device
N/ Control of a compatible Bluetooth device The association of a compatible Bluetooth device makes it possible to control the main functions of this device (mode, setpoint…) as well as to retrieve the measurements taken and the alarms generated by the device. Measurements are collected every 30 minutes, but they are also refreshed each time the user intervenes on the device. -
Page 19: Faq
9 - FAQ: How many measurements does the module take per day? • The module takes temperature measurements every 15 minutes when filtration is active. How does thermo-adaptive filtration work? • The module analyses the water temperature • Depending on the mean temperature recorded the day before, the module applies a filtration schedule as defined by the models presented in this document. -
Page 20: Technical Characteristics
European countries. Do not dispose of this appliance with your household waste. Use the collection and recycling points available in your country when you no longer need this device. Product manufactured in France by : INDYGO - SOLEM SAS 5 rue Georges Besse 34830 Clapiers - France https://indygo-pool.com/...
