Sealey MC5904 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
F WARNING! Before use, ensure the motorcycle to be supported has a suitable structure and centre of gravity to accommodate the
p
support pins without damaging the bike. DO NOT use if the stand will foul on the exhaust or other vulnerable parts.
! Maintain the stand in good condition (use an authorised service agent).
! Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
Use a qualified person to lubricate and maintain the stand.
!
! Locate the stand in a suitable work area, keep area clean and tidy and free from unrelated materials, and ensure that there is adequate
lighting. Also ensure the floor is level and strong enough (preferably concrete) to take the weight of the stand and the bike. DO NOT operate
the stand on tarmacadam, as the surface may be unstable.
! Keep the stand clean for best and safest performance.
! Before use, ensure that the stand is grounded on all 4 feet.
! The maximum bike weight is 500kgs. DO NOT exceed this rated capacity.
! Remove ill fitting clothing. Remove ties, watches, rings and other loose jewellery, and contain long hair.
! Maintain correct balance and footing, do not over reach. Ensure the floor is not slippery and wear non-slip shoes.
! Ensure the bike is adequately secured to the stand with appropriate straps.
! Before lifting check that there are no overhead obstructions.
! Keep children and unauthorised persons away from the work area.
% DO NOT use the stand for a task it is not designed to perform.
% DO NOT operate the stand if damaged.
% DO NOT exceed the rated capacity of the stand.
% DO NOT operate the stand when you are tired or under the influence of alcohol, drugs or intoxicating medication.
% DO NOT allow untrained persons to operate the stand.
DO NOT make any modifications to the stand.
%
! Before lowering the stand ensure that there are no obstructions underneath the motorcycle and that all persons are standing clear.
Before storing in safe area, ensure all parts are clean and free of grease and oil. Store stand in the lowest position.
!
2. INTRODUCTION & SPECIFICATION
The MC5904 Motorcycle scissor stand is suitable for use either on a motorcycle lift or on the floor. It will support bikes without a centre stand
and provide a solid support leaving one wheel free for working on the drive components. The unit is fitted with two sliding saddles which will take
two lenghts of support pins.
Model no. . . . . . . . . . . . . . . . . . . .MC5904
Capacity . . . . . . . . . . . . . . . . . . . . . .500kg
Low extension Min. height . . . . . . .196mm
Low extension Max. height . . . . . . .423mm
Tall extension Min. height . . . . . . . .298mm
Tall extension Max. height . . . . . . .480mm
3. CONTENTS
Unpack the stand and check contents. Should there be any damaged
or missing parts contact your supplier immediately.
a 1 x Scissor stand
a 2 x Sliding saddles
a 2 x Long extension pins
a 2 x Short extension pins
a 1 x Lifting handle
4. OPERATING INSTRUCTIONS
F WARNING! Ensure you read, understand and apply the safety instructions before use.
p
F WARNING! Before use, ensure the motorcycle has a suitable structure and centre of gravity to accommodate the stand
p
support pins without damaging the bike.
DO NOT use if the stand will foul on the exhaust or other vulnerable parts. If necessary remove any lower fairing and
ensure the bike is stable on the stand before operating.
F WARNING! The stand should only be raised by turning the grip handle manually or by means of the chrome winding handle
p
inserted into the grip tube. Do not attempt to lift the platform up by lifting the grip as the platform will not be locked and will
rapidly return to the ground when the handle is released.
4.1. Position the bike in a suitable area, checking that the surface on which the stand will be placed is solid and flat (preferably concrete).
Ensure there is good access and clearance beneath the bike for the stand.
4.2 The stand can be also be used in conjunction with a motorcycle that is already raised on a motorcycle lift. Ensure that the stand has all four
feet firmly placed on the lift platform.
INSTRUCTIONS FOR:
MOTORCYCLE SCISSOR STAND
MC5904
Model:

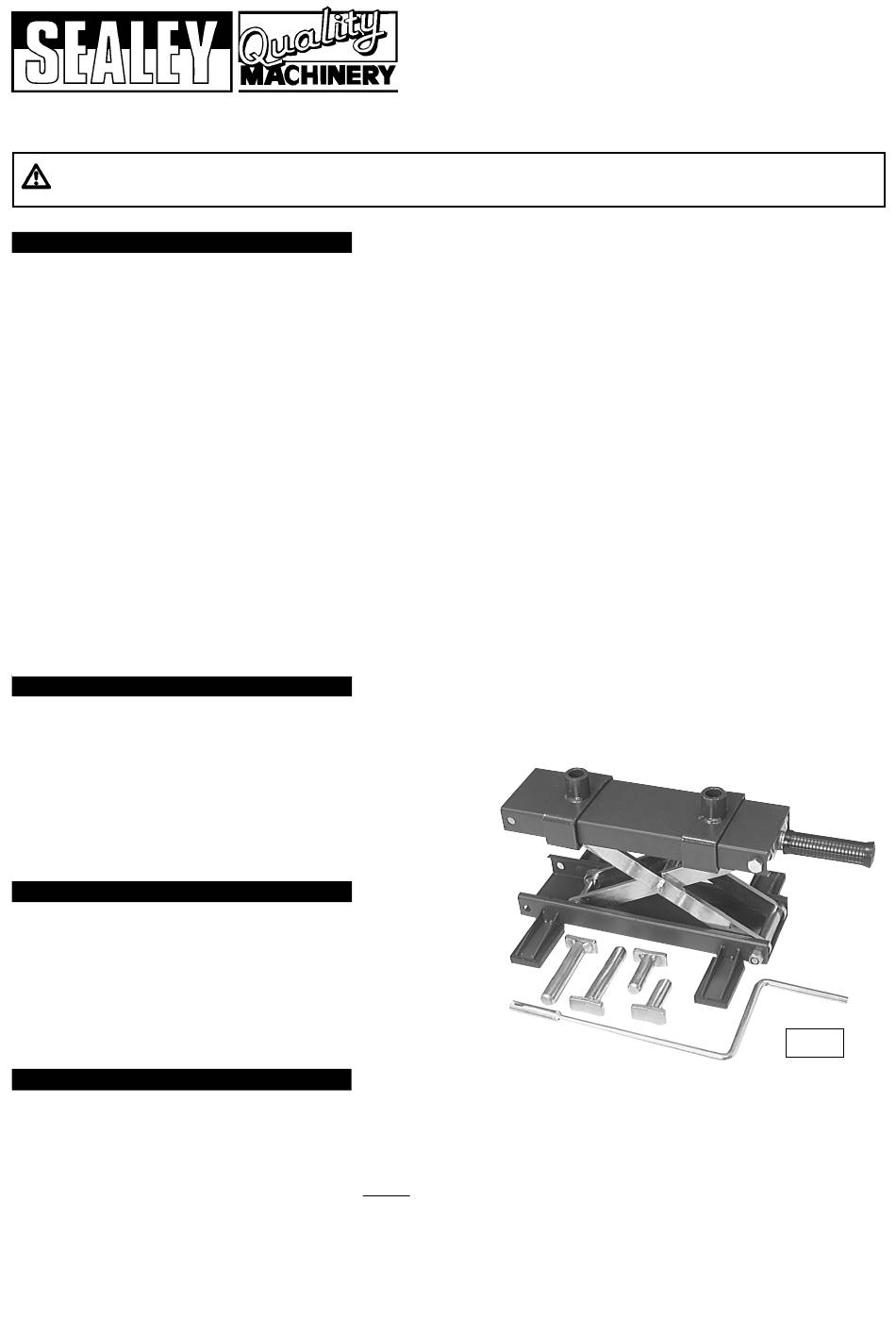

fig 1
MC5904 - 1 - 230103
