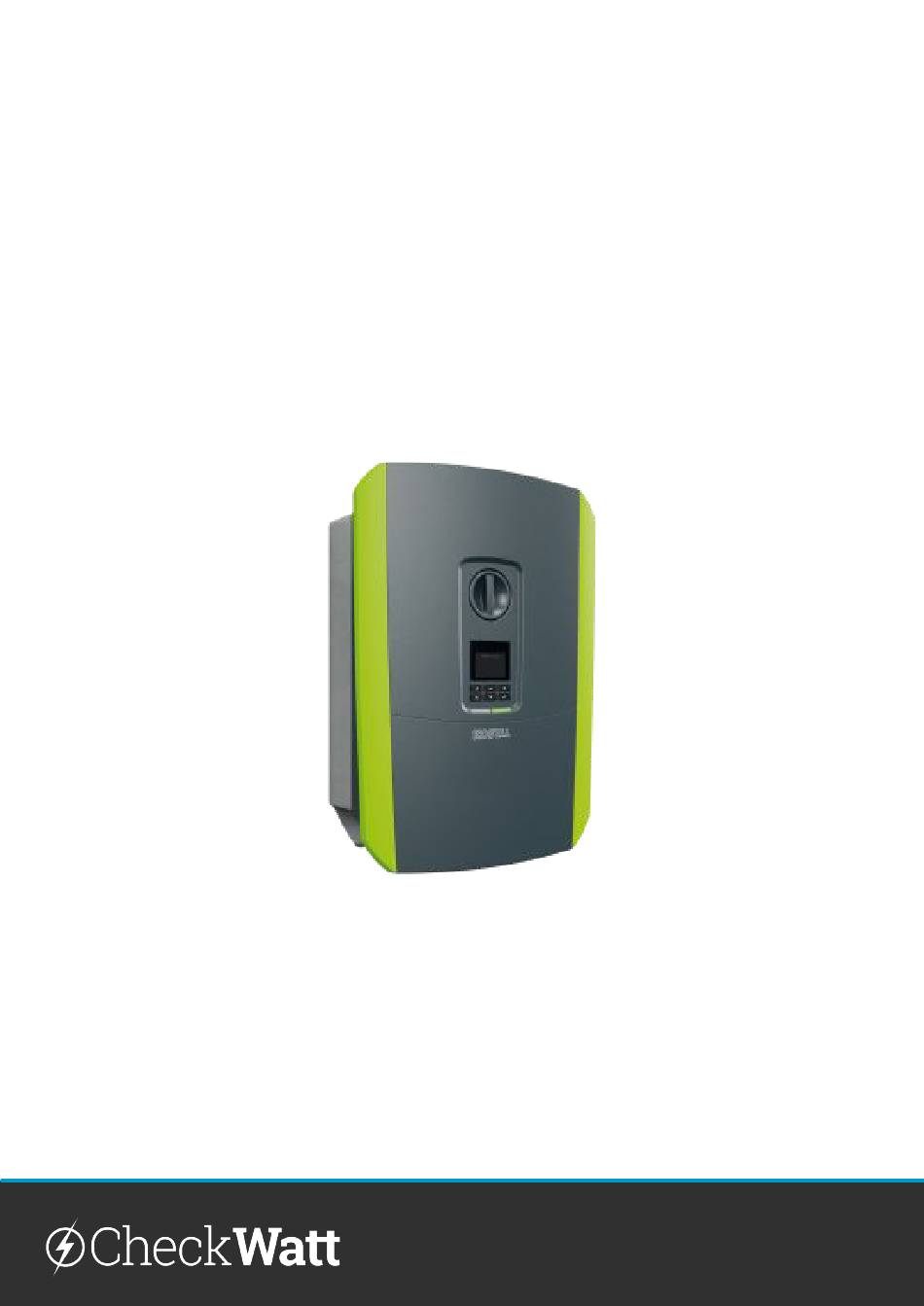

CheckWatt CM10 and Kostal Hybridväxelriktare PLENTICORE plus
Installation of CheckWatt CM10 and Kostal hybrid inverter PLENTICORE plus should be
done according to the respective installation manuals. The following documentation
specifically describes how communication is established between CheckWatt CM10
and Kostal hybrid inverters.
Communication between CM10 and inverter is carried over modbus TCP/IP via
ethernet cable CAT6 FTP.
Max inverters per CM10: 1
Installation manual
Updated 2024-06-12
Gamlestadsvägen 18B
415 02 Göteborg
SWEDEN
www.checkwatt.se
info@checkwatt.se
+46 101 88 65 65
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CheckWatt CM10
Summary of Contents for CheckWatt CM10
- Page 1 CheckWatt CM10 and Kostal Hybridväxelriktare PLENTICORE plus Updated 2024-06-12 Installation of CheckWatt CM10 and Kostal hybrid inverter PLENTICORE plus should be done according to the respective installation manuals. The following documentation specifically describes how communication is established between CheckWatt CM10 and Kostal hybrid inverters.
- Page 2 External via protocol (Modbus TCP) under Battery Control. Note: Remember to save before closing the page. Now, you can disconnect the computer. The next step will explain the connection to the CheckWatt CM10. Gamlestadsvägen 18B www.checkwatt.se 415 02 Göteborg info@checkwatt.se...
- Page 3 Installation: Internet connection and communication Connect the WAN (Ethernet cable) between the property's router* and LAN 1 (eth0) on the CM10 for internet connection to the CM10. * or other network equipment such as PLC-modem, wifi-repeater or network switch. NOTE! LAN 1 and LAN 2 must not be mixed up as they have different functions.
