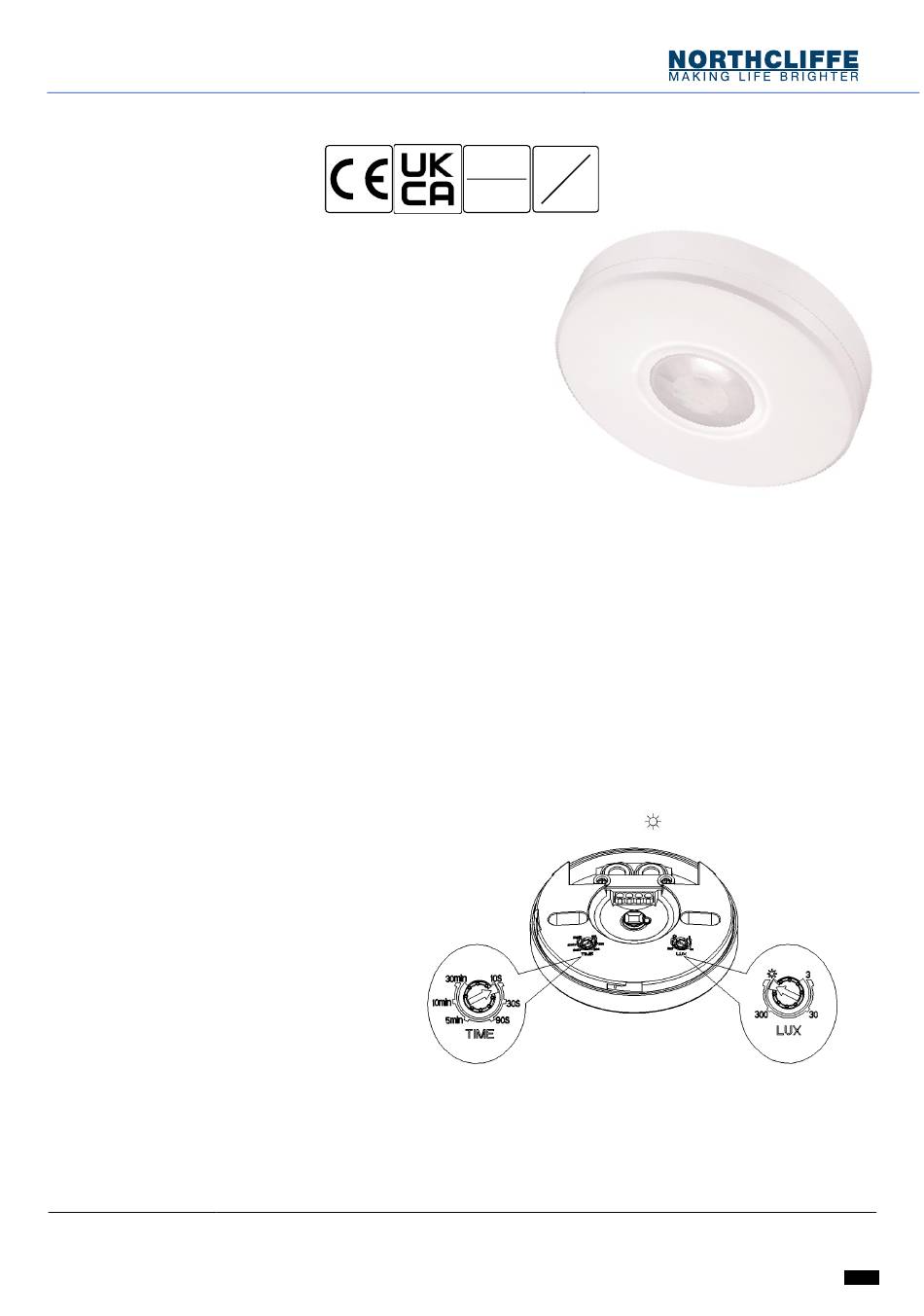

Sensor C SPIR360 D8/4 W
•
SPECIFICATION:
•
Ceiling mounted PIR sensor
•
Body: polycarbonate, white
•
Detection range: 360°
•
Detection diameter: 8m max (<24 °C)
•
Installation height: 2.2-4.0m
•
Mains voltage: 220-240V, 50-60Hz
•
Switching load: 1000W (Energy saving lamp & LED lamp)
•
Power consumption: 0.5W
•
Dimensions: Ø110*27mm
•
Switching cycles: 100000
•
Integrated daylight sensor. Daylight Threshold: 3-2000lux (adjustable)
•
Hold time: 10s-30min (adjustable)
•
Movement speed detection: 0.6-1.5m/s
•
Operating temperature range, °C: -20..+40
•
Protection class IEC: II
•
Ingress protection: IP65
•
Function:
•
LUX - Set the daylight threshold level according to the environment. The light will not turn on if the
ambient lux level exceeds the daylight threshold preset. Select the " " position for the sensor to
work in daylight.
•
TIME – Select the required hold time for
the light on-time after presence
detection. When the sensor receives a
second signal, it will restart the hold
time.
•
Manual override function:
•
Sensor mode → Stay on
It is possible to disable the
motion sensor functionality
manually by using the following combination of the wall switch:
Switch OFF – Switch ON - Switch OFF – Switch ON
This must be done within 3 second period.
The sensor will now disregard movement and the luminaire will stay ON as long as the wall
switch is in the ON position.
NORTHCLIFFE LIGHTING
SENSOR C SPIR360 D8/4 W
INSRUCTION FOR INSTALLATION AND USE
Information is subject to change without notice
MI_135_SensorCSPIR360D8/4W_2205-569
www.northcliffe.org
1
