DVI Lighting Summerside DVP115015 Manual

Thank you for purchasing a DVI Lighting Product, we
hope that it's timeless style and grace will create an
enjoyable environment for you in the years to come.
Here are a few things to note before you install your light.
1.Please save these instructions for the future.
2.To install this fixture you will need a Phillips head
screwdriver
3.After you unpack your fixture, ensure that you have
all of the parts necessary for the successful installation
of this product. If something seems to be missing, first
look through all of the packing material. We suggest
that you keep all of the packaging until the light is
properly installed.
WARNING: RISK OF FIRE AND ELECTRIC SHOCK. THIS
PRODUCT IS TO BE INSTALLED BY A QUALIFIED
ELECTRICIAN ONLY. WIRE IN ACCORDANCE WITH
NATIONAL AND LOCAL ELECTRICAL CODES.
PAR 20 50 Watt
SUMMERSIDE
DVP115015
after you install your light
1.Make sure to note the maximum recommended
wattage for your light fixture - DO NOT EXCEED THE
RECOMMENDED WATTAGE. The sockets on these
fixtures are rated to 50 Watts medium base PAR20 bulb.
2.To clean your Fixture, we recommend that you use a
mild detergent, such as dish washing soap, and warm
water to clean the glass and metal surfaces. Use a
damp soft cloth to wipe off dust.
DO NOT USE abrasive pads or cleaning materials.
wire with the rib
le fil nervuré
White wire
le fil Blanc

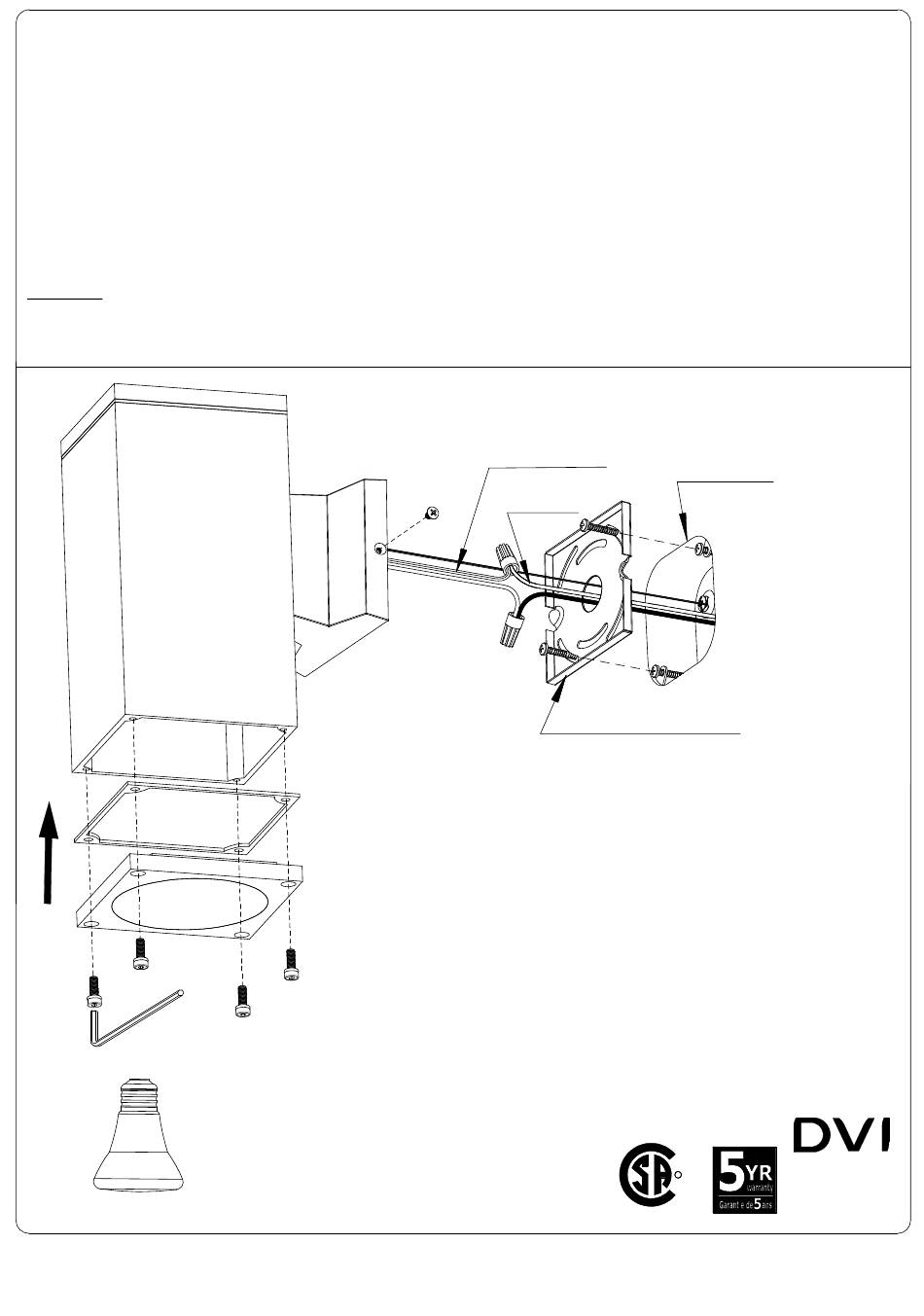

Assembly Instructions
1. Attach the back plate (crossbar) to the electrical box.
2. Using the supplied wire connectors, connect the wires in the following order:
A:Copper ground wire to Ground Wire - If you only have two wires coming from
the electrical box, connect the fixture's copper wire to the Green ground screw
on the crossbar or ground screw in the electrical box.
3. Note that one of the cord wires has small rib running alongside the wire.
The wire with the rib is neutral wire.
B: Ribbed wire from fixture to White (neutral) Supply Wire.
C: Smooth wire from fixture to Black (hot) Supply Wire.
3. Place the fixture over the back plate, and attach with two screws to hold
the fixture in place.
4. To insert / replace light bulb; unscrew the top and bottom cover; use
medium based PAR20 50 Watts maximum.
5. Silicone seal around the base to keep moisture getting in electrical box.
Page 1
electrical box
boîte électrique
back plate (crossbar)
plaquette universelle arrière
5 5 5 5
C US
LIGHTING INC
WWW.DVCANADA.COM
120 Great Gulf Drive, Concord,
Ontario, Canada, L4K 5W1
Tel: (905) 660 5600
Fax: (905) 660 5700
