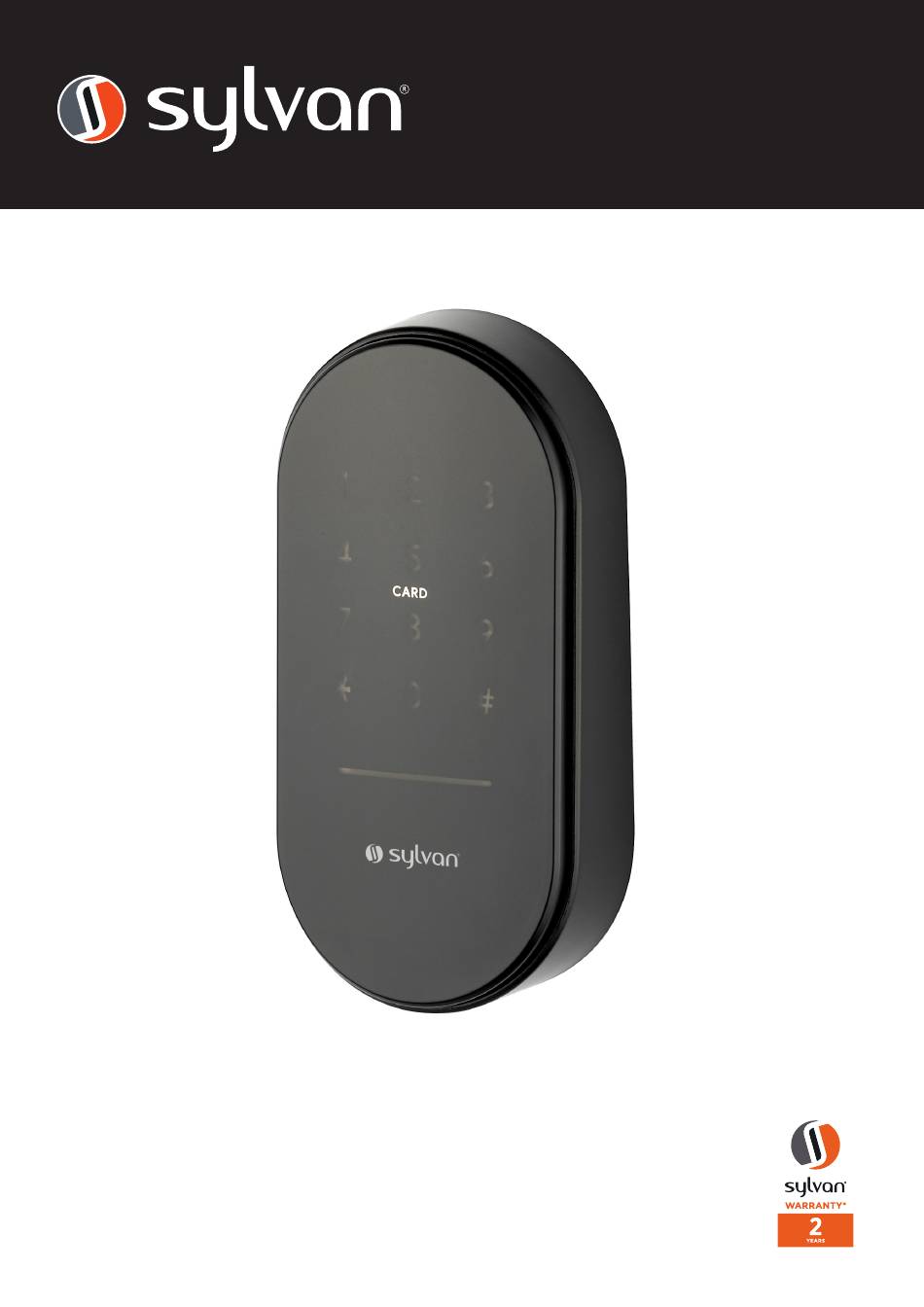

- Page 1 SL44E INSTALLATION INSTRUCTIONS Version 4...
- Page 2 • This keypad is suitable for residential use • The SL44E keypad is IP55 rated, to ensure the longevity of this keypad, adequate weather protection is required. • This product has UV protection, but due New Zealand’s harsh UV conditions fading will occur over time.
- Page 3 SL44E INSTALLATION INSTRUCTIONS Dimensions 58.4 26.2 www.sylvan.co.nz...
- Page 4 SL43E Packing List • KeyPad • Reset Pin x1 Qty x1 • Screw KA4*25 x2 • User manual Qty x1 • Expansion Screw 6*30 x2 • RFID Tag Qty x2 • Self adhesive disc Qty x2 www.sylvan.co.nz...
-
Page 5: Product Specifications
SL44E INSTALLATION INSTRUCTIONS Product specifications: Model number SL44E Door thickness range Material of Low voltage Plastic Less than 4.8 Volts Manufacture Alarm Weight .3 kg IP Rating IP55 Options of Bluetooth Passcode App unlocks unlocking Password capacity Passcodes: 150 max... -
Page 6: Installation
Install keypad onto the back panel by pressing the keypad onto the panel and pushing up until it locks, you can remove the keypad inserting the supplied pin into the bottom hole and pulling the keypad down and off the back panel. www.sylvan.co.nz... - Page 7 SL44E INSTALLATION INSTRUCTIONS Keypad Installation Checklist 1. Check battery is installed correctly. 2. Check to see if the keypad requires a software update via the TT App 3. Check Keypad is within bluetooth range of device. 1. Date Installed: 2. Installed By: 3.
- Page 8 System Reset/Initialisation Open the rear panel and the battery cover, long press the “Pick-proof” button on the back panel, insert the battery and hold for 5 seconds, and the initialisation is complete. www.sylvan.co.nz...
- Page 9 TTLock App Pairing a SL44E Keypad to another device 3. Install the 1. Verify Device SL44E Keypad: Compatibility: • a. In the TT app, • Ensure the device go to the home you want to pair screen and tap the keypad with is ‘Add Lock’.
- Page 10 • Open the app and select Add Remote. • Tap on Remote on the home page, then select Add Remote. • Choose Permanent, give it a name (e.g,“keypad”), and tap Next to put the smart cylinder in pairing mode. www.sylvan.co.nz...
- Page 11 • From the SL44E keypad, enter the following to initiate pairing NOTE: IMPORTANT You do not need the SL44E keypad app open, just enter this into the keypad while you have the other device within blue tooth range ( e.g. smart cylinder ) looking for syncing a remote! •...
-
Page 12: Setting A Passcode
We suggest • Recurring PIN codes used naming each PIN with the to give access to the user of name of the person using it. this code at certain time of E.g. Bobs PIN day and week. www.sylvan.co.nz... - Page 13 SL44E INSTALLATION INSTRUCTIONS RFID cards • This lock comes with2x Key Tags and 2x Discs and can store up to 200 unique RFID cards. • To add these to the keypad, touch RF Cards, then add card • Decide if a Permanent or Timed or Recurring user •...
- Page 14 Remote unlock • This can be done using a smart hub SLG02 (sold separately) see ‘sylvan.co.nz/smart-hub-slg02/’ 1. Add the smart hub via the 2. Click on add Gateway 4. Connect power to the first screen of the TTlock gateway and the indicator 3.
- Page 15 SL44E INSTALLATION INSTRUCTIONS 1. In the setting screen of the lock click 2. On the settings page select ‘Turn on on gateway and you should see your Remote Lock’. named gateway. 3. On the main programming screen of 4. By clicking on the Wi Fi symbol, then...
-
Page 16: Product Warranty
1. Please keep this card so that you can use it when you need warranty service. 2. We provide you with a two-year warranty from the date of purchase. 127 Diana Drive Glenfield Auckland 0627 Ph: +64 9 444 5359 Email: sales@gdrutter.co.nz Web: www.sylvan.co.nz...
