EVENROUTE IQrouter Pro Quick Installation Manual

Quick Installation Guide

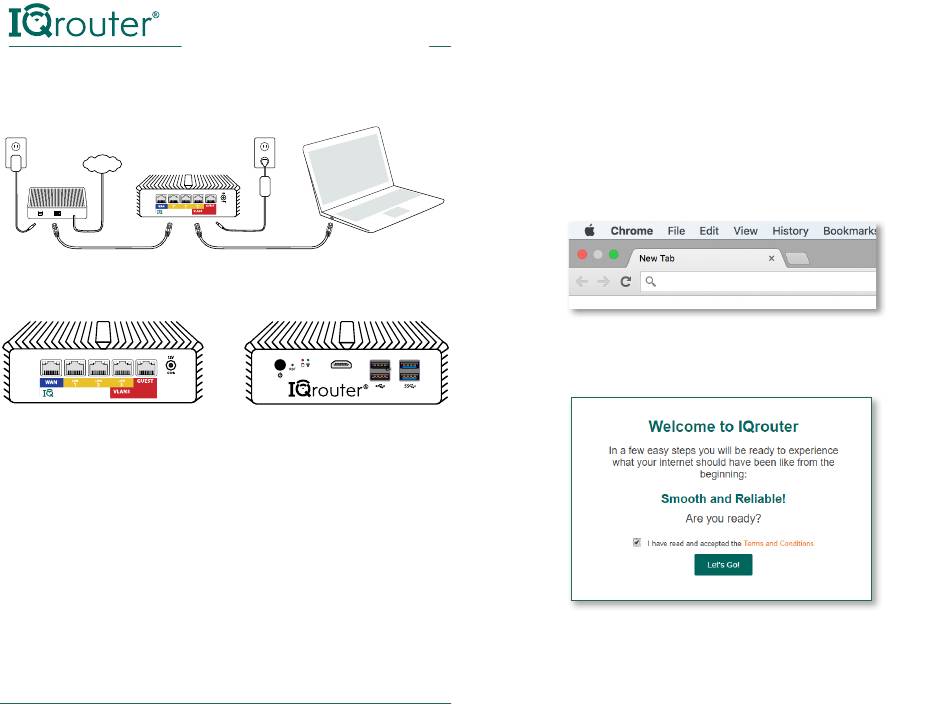

Installation Overview
Internet
IQrouter
Existing
Modem
router Pro
Model
LINE
2006
First – Connect the hardware
router Pro
Model
2006
Front of unit
1
- Disconnect any third-party routers from the ISP-supplied modem.
If the modem is a simple bridge modem, turn it off, otherwise leave any
all-in-one units on. If the ISP-supplied modem includes WiFi, turn off the
WiFi and unplug any LAN cables.
2
- Wait 5 minutes if modem was turned off, then turn on.
3
- Connect the Ethernet cable coming from the modem to the WAN
(blue) port of the IQrouter.
4
- Turn on the modem (but not the IQrouter). Wait for Internet light to
go solid.
5
- Now plug in the IQrouter.
6
- If necessary, press the power button on the back to start the
IQrouter. On the back, the green power light will go on.
©2023 EvenRoute LLC
IQrouter Pro
Back of unit
Next – Configure the IQrouter
1
- Connect the IQrouter to a computer with an Ethernet cable into LAN
2
- Open a browser window and type this address:
iqrouter.menu
(Note: if that doesn't work, type http://192.168.7.1)
iqrouter.menu
3
- This launches the configuration wizard. Follow the directions on your
screen.
4-
Once done, if you had Ethernet cables previously plugged into a
third-party router or the ISP-supplied device, plug them now into the
IQrouter's LAN ports or your switch.
