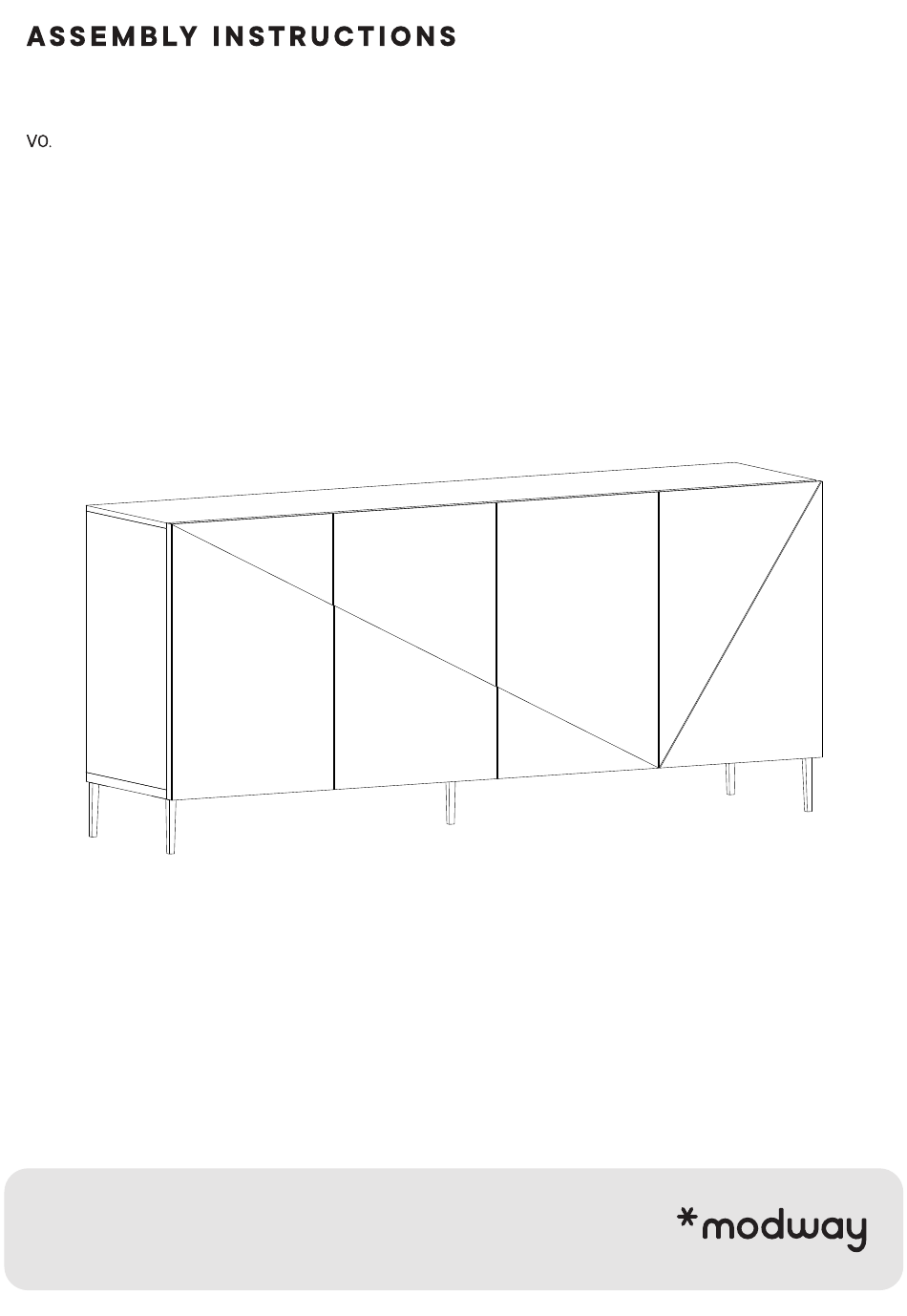

- Page 1 EEI-6147 12.25.22 Questions? Contact us! 609.256.9000 • cs@modway.com www.modway.com...
-
Page 2: What You Need
Missing parts or hardware? Need assistance? + Level Contact us before returning your item. We're here to help! + Silicone Adhesive or Caulk 609.256.9000 • cs@modway.com + Drywall Anchors and Screws + Other W all-Mounting Hardware PAGE 2 OF 10... - Page 3 Step 1 H A R DWA R E HARDWARE Cam Bolt Ø6 x 35 mm Cam Bolt M6 x 35mm COMPONENTS Le Side Panel Bottom Panel Top Back Rail Top Panel Step 2 HARDWARE Cam Bolt Ø6 x 35 mm Wood Dowel M8 x 30mm Cam Lock Ø15 mm COMPONENTS...
- Page 4 Step 3 H A R DWA R E Cam Lock Ø15mm C O M P O N E N T S Bottom Panel Le Side Panel Right Side Panel Step 4 COMPONENTS Bottom Panel Le Side Panel Right Side Panel Back Bottom Panel PAGE 4 OF 10...
- Page 5 Step 5 H A R DWA R E Cam Lock Ø 15mm C O M P O N E N T S Middle Panel Back Middle Rail Step 6 H A R DWA R E Cam Lock Ø15mm C O M P O N E N T S Bottom Panel Middle Panel Back Bottom Panel...
- Page 6 Step 7 C O M P O N E N T S Bottom Panel Le Side Panel Right Side Panel Middle Panel Back Bottom Panel Back Middle Rail Back Top Panel Back Side Panel Step 8 H A R DWA R E Cam Lock Ø15mm C O M P O N E N T S Le Side Panel...
- Page 7 Step 9 HARDWARE Allen Bolt M6 x 25mm Flat Washer M6 Allen Key COMPONENTS Center Leg Turn Upside Down PAGE 7 OF 10...
- Page 8 Step 10 HARDWARE Screw M4.5 x 16mm º Hinge 0 º Hinge 8 COMPONENTS Le Side Door Le Middle Side Door Middle Right Side Door Right Side Door Step 11 HARDWARE Screw M4.5 x 16mm Shelf Support COMPONENTS Middle Shelf Side Shelf PAGE 8 OF 10...
- Page 9 Step 12 Attachment of Furniture: This furniture may represent a danger for your security ifi t’s attachment on the wall has been done in an incorrect way. This attachment must be done by a person with great expertise who will make sure adequacy between the device of fixing and the wall.
-
Page 10: Connect With Us
Indoor use only. Not contract grade. Clean using a non-abrasive cloth and a mild cleaner. Never use harsh chemicals, or integrity of the item. CONNECT WITH US! Tag us @modway_furniture #modway for a chance to be featured. PAGE 10 OF 10...
