KANDA AVR-USB Manual

Flash program 205/210/212 indicator smt version
Hide thumbs

Advertisement

Quick Links

Download this manual
Flash Program 205/210/212 Indicator (SMT Version)
Items required:
PC with Microsoft Windows OS and USB port
AVR-ISP program kit: Either AVRISP-U or AVR-USB
Upload and save the indicator software file to a location on your computer such as
Documents.
Important! Confirm that the indicator software is in a hex file format where the file name
ends with .hex such as 200rev2.6.2.hex or if custom software such as SO123456.hex. Should
the file be compressed, the file name will end with .zip such as 200rev2.6.2.zip. Zip files must
be decompressed before they can be loaded into the indicator. To decompress the file save
the .zip file to a location on your computer that will be easy to locate like Documents, then

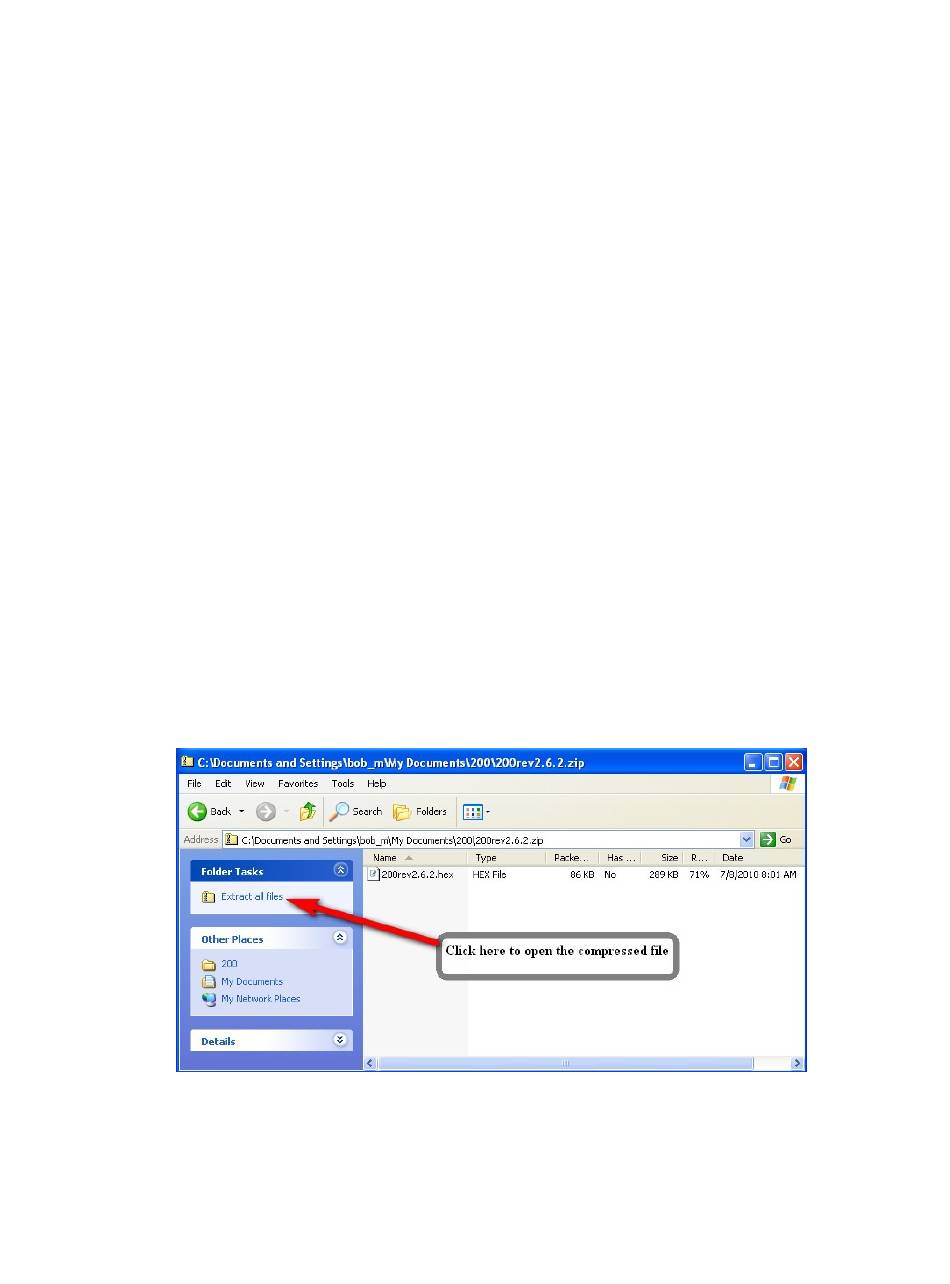

open the file. The window will have an option to Extract all files (See Figure 1) click on this
and use the folder extraction wizard to decompress and save the file (s). Ensure that you
select a location to save the file to such as Documents so you can locate the file when using
the AVR programmer.
USB KANDA Programmer
AVR-USB or AVRISP-U
STEP 1
Save software file to computer

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVR-USB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KANDA AVR-USB

Summary of Contents for KANDA AVR-USB

  • Page 1 AVR-USB or AVRISP-U Items required: PC with Microsoft Windows OS and USB port AVR-ISP program kit: Either AVRISP-U or AVR-USB STEP 1 Save software file to computer Upload and save the indicator software file to a location on your computer such as Documents.
  • Page 2 STEP 2 Make connection to 205/210/212 SMT Indicator Power the indictor on; once the indictor completes its startup and is in the operation mode connect the AVR dongle ribbon cable to the port labeled P7 ISP:...

  • Page 3: Status Box

    STEP 3 Make connection to Computer 1. Connect the dongle to a USB port of the computer and open the AVR program. Reset 2. Click on the button in the AVR program Reset button is located on the top right side of AVR Main Screen. Status Box 3.

  • Page 4: Step 5 Fuse Settings

    Select Devise Type: ATmega2560 The Devise window at the top of the AVR screen should have devise: ATmega2560 selected, is so proceed to next step. Should the devise detected differ from the selected devise shown in the DEVISE window at Devise the top of the screen a POP up window will be displayed.
  • Page 5 Failure to do so will cause the indictor to fail! The correct values are shown below. If necessary change values that do not match. Note: The following General Options may also be selected: Enable OCD (OCDEN), Enable JTAG (JTAGEN) EEPROM memory is preserved after Chip Erase (EESAVE) ATmega2560 STEP 6 Configure Auto Program Options...
  • Page 6 Auto Program Options window will open. Select the options shown then click OK to save them. NOTE: When using a notebook select Medium Programmer ISP Speed. Important: Make sure that the selected options match those shown Failure to do so will cause the indictor to fail.
  • Page 7 STEP 6 Load Hex File Load the hex file into AVR so that it can be transferred to the indictor. Using the Tool Bar Menu at the top of the screen select 1. File 2. Load 3. Flash Browse to the location where the hex file (.hex) was saved. Then click on the file to highlight it, and click Open to select it.
  • Page 8 Once flash file is successfully loaded, a confirmation message will be displayed in the Status Box at the bottom of the AVR screen. Note: A good hex file will start with OC 94 for the first two bits. See Figure 21. Important: Do NOT attempt to load a program into the 205/210/212 indicator that starts with anything other than OC 94.

  • Page 9: Auto Program

    STEP 7 Program Indicator Once the hex file has been successfully loaded into AVR and the Fuse settings and Auto Program Options have been verified, either press on the computer keyboard or select Auto Program Device from the menu to begin programming. Status Box While programming, a progress bar will be displayed in the located at the...
  • Page 10 Status Box When programming is complete, the located at the bottom of the AVR screen Auto Program Complete will display a confirmation message “ ” along with a Green light. If an error occurs during programming a light will be displayed along with an error in Status Box .
