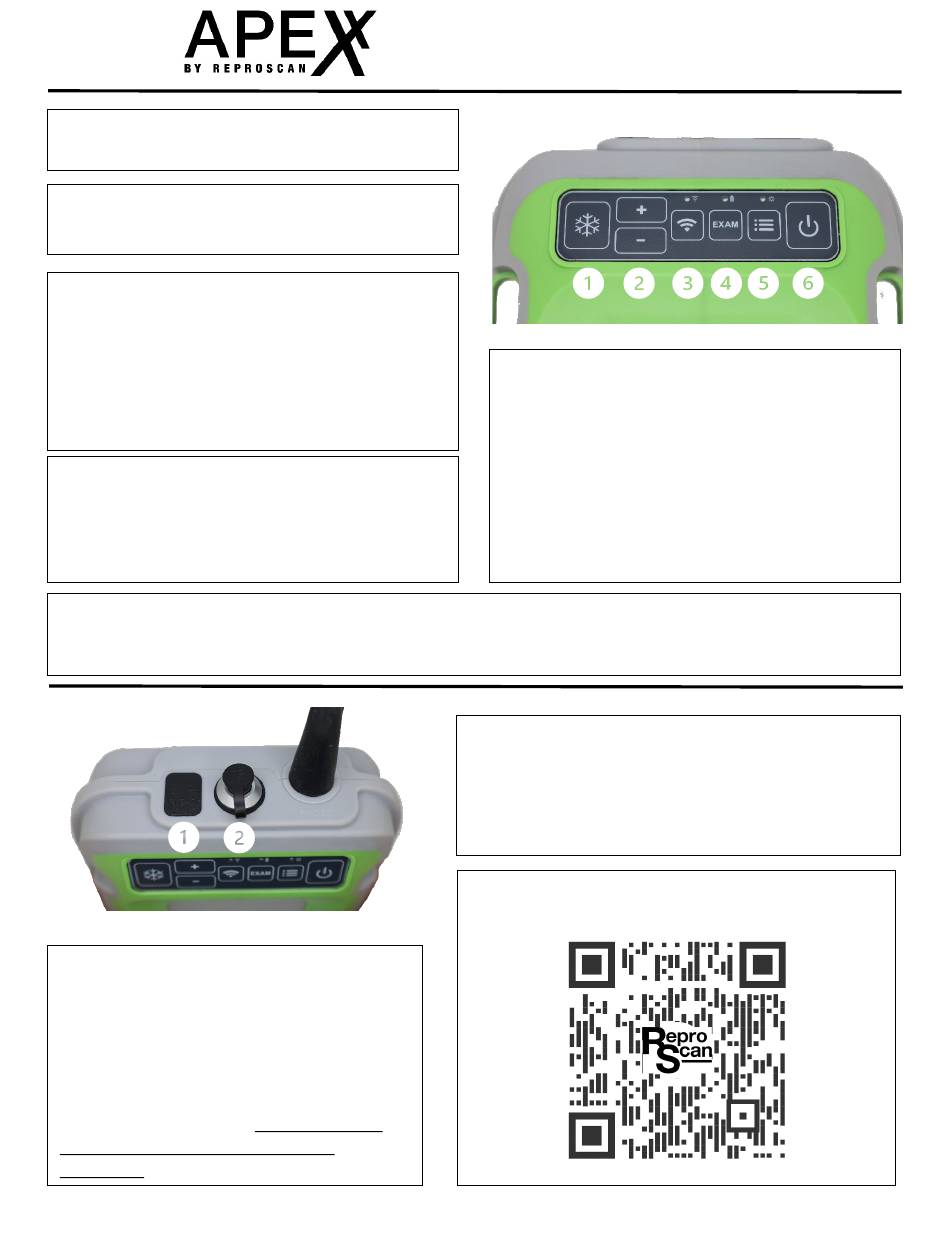

ReproScan APEXX Quick Start Manual

1 – Freeze: Press this buton to freeze the image on
your screen. Press again to go back to live scanning.
2 – Zoom: The plus and minus buton allows you to
zoom in and out on your screen in live scanning mode.
3 – Wi-Fi: This buton will turn your Wi-Fi on or off. If
the green light above the buton is on, your Wi-Fi is
on. Keep in mind, your machine will be factory set to
have Wi-Fi turned off. Turn Wi-Fi on if you are
connec�ng to a tablet. If you are not connec�ng to a
tablet, leaving your Wi-Fi off will increase your batery.
life.
4 – Exam: Your ultrasound is preset with 4 different
exams, with custom se�ngs for different types of
scanning. This buton will toggle through the exams.
Note; check your se�ngs chart for a guide to the
exams.
6 – Power Buton: Press this buton to turn the machine on/off. Note; you may need to hold the buton for a couple
seconds to make the machine turn on or off. When the machine is on, the light above the menu buton (#5) turns
green.
1 – Charging Port: The charging port is on the top
of the ultrasound, all the way on the le�. Li� the
flap from the front of the machine to expose the
charging port. Keep the flap closed and sealed
when not charging the ultrasound to keep water,
dust, and debris out of the charging port. Light
above the exam buton (#4) blinks when charging
and is solid when charged. Only use chargers
provided by ReproScan to charge your
ultrasound!
QuickStart Guide
5 - Menu: Pressing this buton will bring up the right
menu, which allows you to adjust image se�ngs like
gain, dynamic, frequency, etc. Use the exam buton to
scroll through the menu, and the +/- butons to adjust
the se�ngs. Press the menu buton a second �me to
bring up the le� menu which will allow you to adjust
your grid, wireless channel, etc. Press the menu
buton a third �me to exit the menu screen. See more
videos online for se�ngs help.
2 – VGA Port: The round insert between the charging port
and the probe cord is the VGA port. Li� the seal to expose
the port to plug in your 2.0 monitor cable or goggles. Make
sure to line up the red dot on the cable with the red dot on
the VGA port.
Scan The QR Code for Apexx Start Up page that has the
manual!
