Summary of Contents for Michigan USA RAVENGER

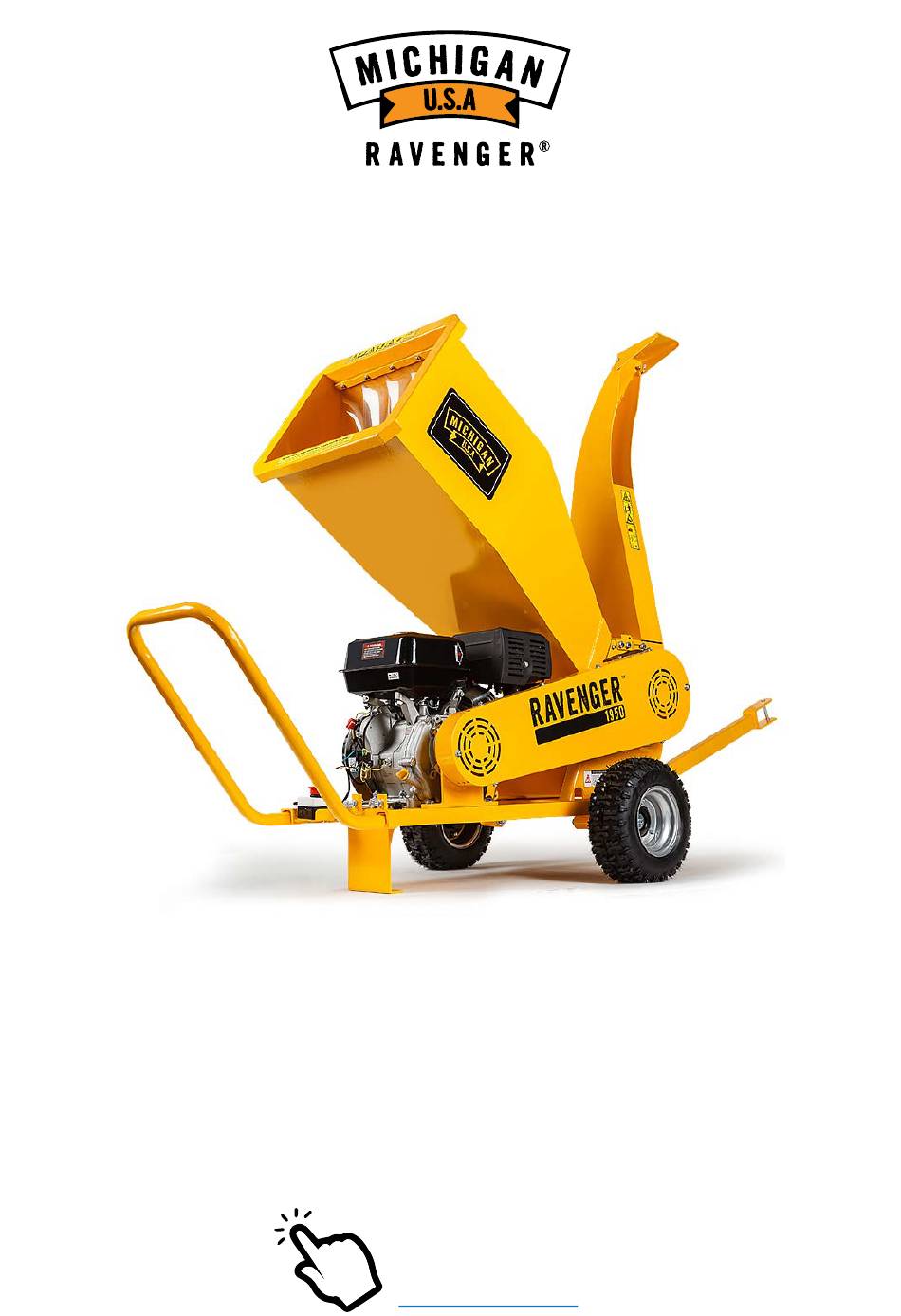

- Page 1 Petrol Powered Chipper/Shredder User Manual RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE Click to Watch: Starting a 4-Stroke...
-
Page 2: Table Of Contents
Petrol Powered Chipper/Shredder Table of Contents Introduction ............................... 1 Parts Diagram ..............................2 Safety ................................. 2 Operation ................................3 Before Operating the Machine ........................3 Starting and Operating the Machine ......................4 Maintenance ..............................5 Troubleshooting ..............................6 Specifications ..............................7... -
Page 3: Introduction
Petrol Powered Chipper/Shredder Introduction This shredder is designed solely for shredding/chipping all kinds of newly-cut tree branches with a diameter of up to 8.5cm. You should not use the shredder for shredding/chipping metals, stones and plastics. If you are going to shred tree roots, check if the diameter is less than 10 cm and remove all earth, sand and stones. -
Page 4: Parts Diagram
Petrol Powered Chipper/Shredder Parts Diagram Safety • Before use, make sure that the manual has been carefully read. Become familiar with the controls so as to use the machine correctly. Obey all safety instructions! • The user should be 18 years old or more. •... -
Page 5: Operation
Petrol Powered Chipper/Shredder • Never leave the machine running unattended. • Changing the blades of the rotor and checking blade bolts should only be done when the engine and rotor are stopped, the spark plug cap is removed and the rotor is blocked. •... -
Page 6: Starting And Operating The Machine
Petrol Powered Chipper/Shredder Starting and Operating the Machine • Start the engine at half throttle and let it warm up for about 3 minutes. (For proper use of the engine one should also read the attached manual). Then put the engine on full throttle. •... -
Page 7: Maintenance
Petrol Powered Chipper/Shredder • Before starting the engine check that the bolts holding the input and output tubes are fully tightened. Maintenance • All technical check-ups and maintenance should be done with the engine shut off and the spark plug cap removed from the spark plug. -
Page 8: Troubleshooting
Petrol Powered Chipper/Shredder Troubleshooting Problem Cause Solution The shredder isn’t performing Blades are worn down too much. Change or sharpen the blades. properly: wood is not pulled in by the Note that the blades are Diameter of the branches inserted machine itself. -
Page 9: Specifications
Petrol Powered Chipper/Shredder Specifications Manufacturer Michigan Power Equipment Engine 4-Stroke OHV Manual Petrol Engine Displacement 420cc Max. Output 18HP / 3600 rpm Starting System Recoil Pull Start Fuel Tank Capacity 6.5L Fuel Type Regular Unleaded 95 +RON Oil Capacity 1.1 L V-Belt Size / Type Twin v-belt Wheel Diameter... - Page 10 Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety ...
