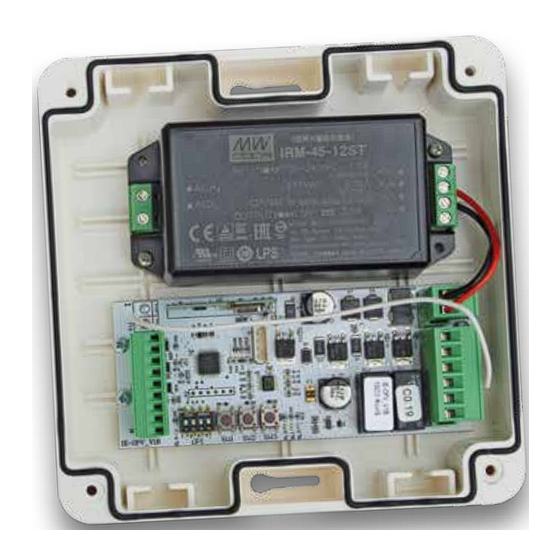

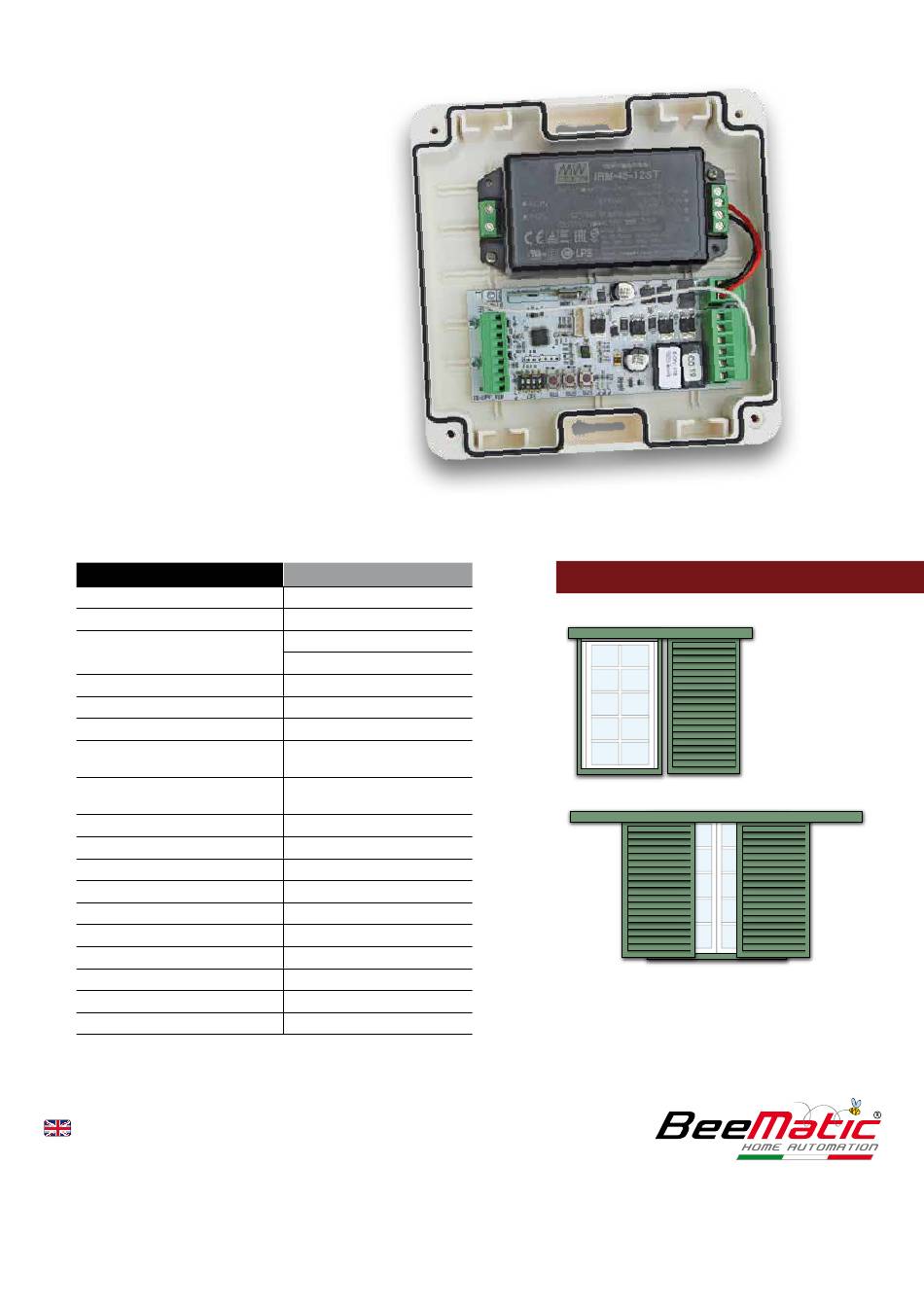

CONTROL UNIT
FOR SLIDING SHUTTERS
SHU2
Description
Power supply
Power
Power consumption
Control unit power
Motor power supply
Motor absorption
Energy saving
Radio frequency
Number of motors
Torque / Thrust
Operating temperature
Degree of protection
Storable remote controls
ODS - Obstacle detection
Opening command
Closing command
Dead man command
Centralized opening command
USER MANUAL
issue 05/2024
SHU2
230 Vac / 50-60Hz
45W max
0,05 A Standby
0,25 A Max
12 Vdc
12 Vdc / 1,4 A
1,7 A max
reduced consumption in
stand-by and during use
integrated, frequency 433
MHz
1
18,1 Nm
-20 ÷ 55°C
IP44
100
Sì
Sì
Sì
Sì
Sì
TYPE OF INSTALLATION
BEEMATIC is a registered trademark owned by
San Lazzaro di Savena (BO)
info@abtecno.com - www.abtecno.com
AB Tecno Srl
Via Cicogna 95 - 40068
Tel. +39 051 6259580
Advertisement
Table of Contents
Summary of Contents for AB Tecno BeeMatic SHU2
- Page 1 Sì Sì Dead man command Centralized opening command Sì USER MANUAL BEEMATIC is a registered trademark owned by AB Tecno Srl Via Cicogna 95 - 40068 San Lazzaro di Savena (BO) Tel. +39 051 6259580 info@abtecno.com - www.abtecno.com issue 05/2024...
-
Page 2: Table Of Contents
MANUALE DI UTILIZZO - CENTRALINA DI COMANDO PER PERSIANE SCORREVOLI - SHU2 SUMMARY chapter page GENERAL SAFETY WARNINGS ELECTRICAL CONNECTIONS AND BUTTONS DIP SWITCH CONFIGURATION SETTING BUTTONS TERMINAL BLOCK CONNECTIONS LED SIGNALS INPUT FEATURES AND OPERATION LOGIC INSTALLATION SET UP STORING THE FIRST REMOTE CONTROL LIMIT SWITCH/SLOWDOWN SETTING MAXIMUM TORQUE/CURRENT SETTING... -
Page 3: General Safety Warnings
5. Materials used for packaging should not be left within the 19. AB Tecno Srl disclaims any responsibility related to safety reach of children, as they are potential sources of danger, and proper operation of the automation, in case of use of and should be properly recicled. -
Page 4: Electrical Connections And Buttons
MANUALE DI UTILIZZO - CENTRALINA DI COMANDO PER PERSIANE SCORREVOLI - SHU2 ELECTRICAL CONNECTIONS AND BUTTONS... -
Page 5: Led Signals
MANUALE DI UTILIZZO - CENTRALINA DI COMANDO PER PERSIANE SCORREVOLI - SHU2 LED SIGNALS colour function Green Engine running Not used in sliding shutter functionality Yellow XXXXXX__ STANDARD flashing > Long flashing every 0.8s X______ Safety active > Brief flashing every 0.8s SETUP COMMANDS phase flashing (SW3) >... -
Page 6: Input Features And Operation Logic
MANUALE DI UTILIZZO - CENTRALINA DI COMANDO PER PERSIANE SCORREVOLI - SHU2 INPUT FEATURES AND OPERATION LOGIC OPENING CLOSING COM. SAFETY CENTRAL. OPENING COM. CENTRAL. CLOSING +12Vdc Accessories TERMINAL BLOCK INPUTS INPUT FEATURES OPERATION LOGIC (3)(4) SECURITY OPEN/CLOSE NB: Jumper the SAFETY input (4) with common if not •... -
Page 7: Storing The First Remote Control
MANUALE DI UTILIZZO - CENTRALINA DI COMANDO PER PERSIANE SCORREVOLI - SHU2 STORING THE FIRST REMOTE CONTROL ATTENTION: As an alternative or in addition to the radio control, it is also possible to have control via wired buttons connected on the input terminal block. If step-by-step logic will be used, only one input must be wired (regardless of whether opening or closing), if the open-close logic is to be used, the two inputs must be wired. -
Page 8: Maximum Torque/Current Setting
MANUALE DI UTILIZZO - CENTRALINA DI COMANDO PER PERSIANE SCORREVOLI - SHU2 MAXIMUM TORQUE/CURRENT SETTING (5 INTERVENTION THRESHOLDS) • System is turned on, red LED with standard flashing • Press SW2 on board for at least 4 seconds • LED flashing with intensity equal to the current level. 5 current levels are available: the lowest in intesity corresponds to the lowest LED light a) Press SW1 to select the highest current, if already at maximum it starts from the lowest b) Press SW2 for at least 4 seconds to save the setting:...
