CyberTAN EWW631-B1 Quick Setup Manual

EWW631-B1
Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on how to install
and begin using your CyberTAN EWW631-B1 dual-band 802.11ax indoor
Wi-Fi access point (AP).
Upon following the steps outlined in this guide, you will be able to access
the EWW631-B1 Access Point Wall Switch, allowing you to offer wired and
wireless network access to users. Subsequently, this document will refer to
the EWW631-B1 Access Point Wall Switch as the EWW631-B1.

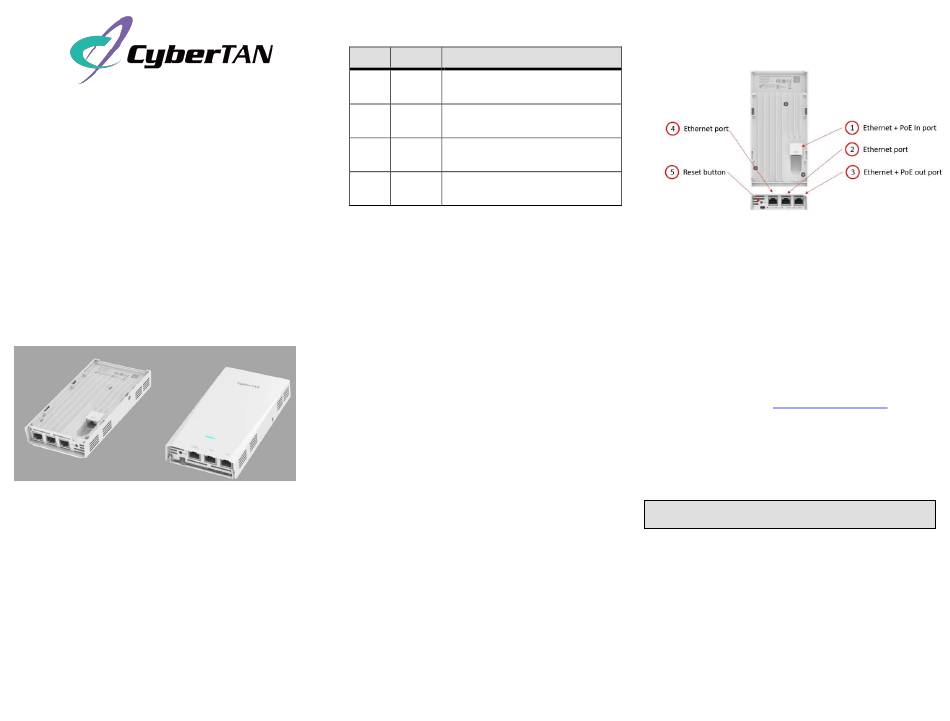

FIGURE 1 EWW631-B1 Access Point: Top View and Back View
About Peripheral Devices
The EWW631-B1 can provide power to PoE-powered devices,
with the supplied power contingent on the PoE power delivered
to the EWW631-B1.
The LAN + PoE Out port is designated for PoE-powered
peripheral devices, such as IP Phone and IP camera.
EWW631-B1
TABLE 1 AP Ports
No. Label Description
1 1G ETH 1 x 10/100/1000 Mbps RJ-45 Ethernet
PoE port (supports 802.3af/at PoE in)
2 1G ETH 1 x 10/100/1000 Mbps RJ-45 Ethernet
PoE port (supports 802.3af/at PoE out)
3 1G ETH 2 x 10/100/1000 Mbps RJ-45 Ethernet
port
4 Reset Resets the AP
switch
Package Contents
A complete EWW631-B1 installation package includes all of the following
items:
• EWW631-B1 Access Point
• One mounting kit, including Two 1-inch No. 8 steel pan-head Phillips
sheet metal screws, two anti-theft screws, two coupling nuts and
wall-mount anchors
• One wall plate bracket
• Service Level Agreement/Limited Warranty Statement (Optional)
• Declaration of Conformity (Optional)
• Regulatory Statement (Optional)
• This Quick Setup Guide (Electrical)
Required Hardware Tools
• Cyber controller (Confirm that "Cyber Controller" has completed the
first registration)
• Cat 5e (or better) Ethernet cable
• Customer-supplied IEEE 802.3af/at-compliant PoE switch and
customer-supplied Ethernet cable
• Customer-supplied IEEE 802.3af/at-compliant PoE injector and
customer-supplied Ethernet cable
• No. 2 Phillips screwdriver and T10 Torx driver for the mounting bracket
screws
• (Optional) One or two separate bypass cables run through the outlet
box
Step 1:
Connecting Your CyberTAN Controller to the AP
1. Using an Ethernet cable to connect one of your controller LAN port
to the PoE port of the AP. Refer to Figure 2.
FIGURE 2 EWW631-B1 AP Ports on Bottom Panel
1. Ethernet + PoE in port
3. Ethernet + POE out port
4. Reset button
2. Verify that the PWR LED (front side) on the AP is lit a steady blue
Step 2:
Login Controller website for setting
1. Using an Ethernet cable to connect your computer network port to one
of the LAN ports on the controller.
2. Open a browser (we recommend Chrome) on the computer to
visit https://192.168.1.1 (or https://CyberTAN.wlan.local) . You
will be directed to the CyberTAN controller login page.
3. Access the login page, input your registered account password, and
then click "Sign in" to access the Controller dashboard
Step 3:
Checking and find your EAP
NOTE: The CyberTAN controller must be directly connected to the EAP
through one of the Ethernet ports.
1. Navigate to the "Topology" section in the left menu. The EAP you
intend to adopt will be shown in the "Pending Adoption" block at the
bottom of the page.
2. Click "Connected Devices/EAP" on the left Menu
3. The EAP will appears in the EAP list with the status as "Pending".
4. Navigate to the "Topology" section located in the left menu.
5. Locate the EAP icon and its corresponding MAC address in the pending
adoption block. Once confirmed, proceed by clicking on the
appropriate icon. The onboarding process will start.
6. During the adoption process, the status will indicate "Onboarding...".
Once the process is successfully completed, the new EAP will
seamlessly integrate into the current "topology" and its machine LED
will display a blue light.
2, Ethernet port
4. Ethernet port
