Summary of Contents for GIONIEN GITS472

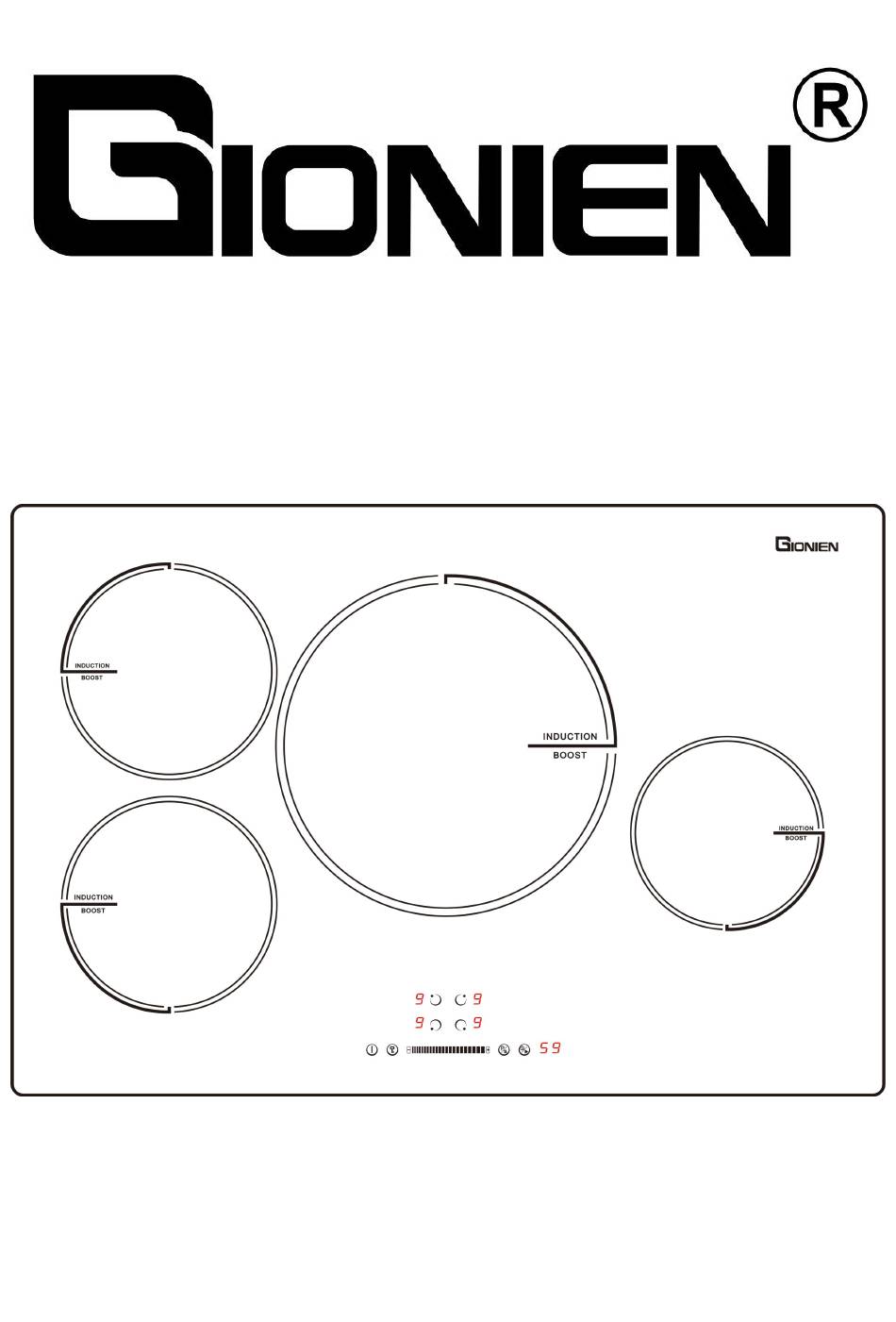

- Page 1 Induction Cooktop Instruction Manual / Installation Manual MODEL: GITS472...
-
Page 2: Safety Warnings
Safety Warnings Your safety is important to us. Please read this information before using your cooktop. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. - Page 3 WARNING: Unattended cooking on a cooktop with fat or oil can be dangerous and may result in a fire. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. This appliance can be used by children aged from ...
- Page 4 WARNING: Danger of fire: do not store items on the cooking surfaces. WARNING: Use only cooktop guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or cooktop guards incorporated in the appliance.
-
Page 5: Product Overview
Product Overview Top View User Interface... -
Page 6: Heat Settings
User Interface Reference Description Zone select key ON/OFF key Child lock key D Power/Timer slider regulating key Boost control key/Keep warm key Timer key/Pause key Heating Zone Power Max. Power Heating Zone (220-240~ 50/60Hz) 1800/2100W 1800/2100W 2300/2600W 1200/1500W Total Rating Power 7200W Heat Settings The settings below should only be taken as a guide. - Page 7 Power Level Recommended Use •Keep warm •Melting chocolate, butter •Defrosting and heating •Cooking rice or porridge •Braising •Simmering •Goulash •Cooking pasta •Roasting/frying with little oil •Stir-frying •Boiling water...
- Page 8 Hints and Tips Problem Possible causes What to do The cooktop Make sure the cooktop is No power. cannot be connected to the power supply turned on. and that it is switched on. Check whether there is a power outage in your home or area. The touch There may be a slight Make sure the touch control...
-
Page 9: Using The Touch Controls
A Word on Induction Cooking Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up. Iron pot Magnetic circuit Ceramic glass plate... -
Page 10: Choosing The Right Cookware
Choosing the Right Cookware • Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan. • You can check whether your cookware is suitable by carrying out a magnet test. -
Page 11: Using Your Induction Cooktop
Using Your Induction Cooktop To start cooking 1. Touch the ON/OFF control for 1 second. The cooktop will beep once and the zones will show “-” to indicate that standby mode. Note：If you do not select a cooking zone and power level within one minute, the cooktop will switch off automatically. -
Page 12: When You Have Finished Cooking
If the display flashes alternately with the heat setting This means that: You have not placed a pan on the correct cooking zone or, The pan you’re using is not suitable for induction cooking or, The pan is too small or not properly centered on the cooking zone. ... -
Page 13: Using The Keep Warm Function
Using the Pause Function The cooktop has a handy resume function to pause and resume the cooking process if you’re interrupted. 1.When the cooktop is on and working, touching the pause key , all burners will stop working, and all LED indicator will show the symbol “¦¦”. 2.Touch the pause key twice, all functions will resume at the previous setting. -
Page 14: Over Temperature Protection
When the cooktop is in the lock mode, all the controls are disable except OFF can always turn the cooktop off with the OFF control in an emergency, but you shall unlock the cooktop first in the next operation. Over-Temperature Protection A temperature sensor equipped can monitor the temperature inside the Induction Cooktop. -
Page 15: Using The Timer As A Minute Minder
Using the Timer as a Minute Minder If you are not selecting any cooking zone 1.Make sure at least one cooking is turned on. Note: you can use the minute minder even if you’re not selecting any cooking zone. 2.Select the cooking zone using (A) and the power level required. 3.When the indicator stops flashing, touch the timer key(F) and the timer will flash “10”. - Page 16 4.Using the “+” and “-“buttons, you can realize the setting of timing from 1 to 99minutes. Hint: Touch the “-“ or “+” control of the timer once will decrease or increase by 1 minute. Touch and hold the ”-“ or “+”control of the timer will decrease or increase by 10 minutes.
-
Page 17: Failure Display And Inspection
Failure Display and Inspection If an abnormality comes up, the induction cooktop will enter the protective state automatically and display corresponding protective codes: Error Possible Cause What to do Message No pot or pot not suitable; Replace the pot; Water or pot on the glass over the ER03 Clean the user interface. -
Page 18: Technical Specification
Under no circumstance should sponges or abrasive cloths be used; also avoid using aggressive chemical detergents such as oven sprays and spot removers. Technical Specification Cooking Cooktop GITS472 Cooking Zones 4 zones Supply Voltage 220-240V~... -
Page 19: Selection Of Installation Equipment
Installation Selection of Installation Equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. -
Page 20: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the cooktop, make sure that • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant material. •... - Page 21 packaging). Do not apply force onto the controls protruding from the cooktop.
-
Page 22: Connecting The Cooktop To The Mains Power Supply
Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2. The cooktop will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the cooktop electronics. - Page 23 European power line access method 1 European power line access method 2...
- Page 24 North American Power Line Access Method Electrical Connection Options(240V) • If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents. • If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
- Page 25 This Appliance Requires a 40 Amp Miniature Circuit Breaker. This appliance is labeled in compliance with European directive 2011/65/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
