Summary of Contents for Harpo Mountbatten Tutor

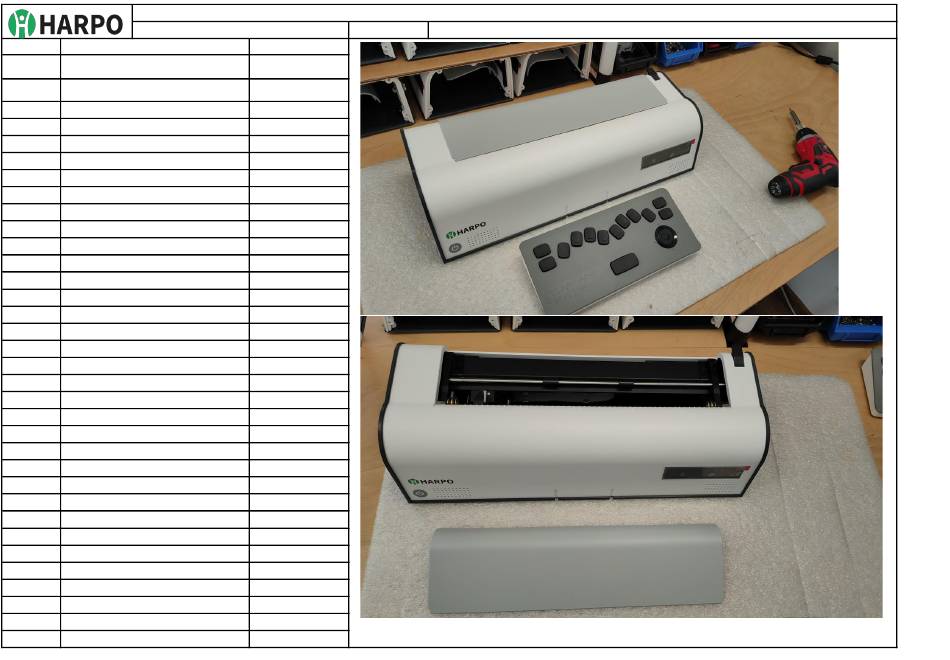

- Page 1 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Shut down the device Put cover aside...
- Page 2 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Unscrew all screws from right side cover x4 M3x8 (MMT900088) Torx key T10 Unplug the speaker as show on photo Unplug battery...
- Page 3 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Unscrew all screws from left side cover x4 M3x8 (MMT900088) Torx key T10 Unplug the speaker as show on photo Unplug also coil and power button...
- Page 4 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Reverse the device Place device on foam sheet Unscrew 14 screws as shown on photo x14 M3x8 (MMT900088) Torx key T10...
- Page 5 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Remember to lift paper lever before next step...
- Page 6 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Lift gently front of bottom cover Be careful not to pull out screen tape Lift the connector latch to release Hook and pick set...
- Page 7 Service manual for Mountbatten Tutor Operation: Main case disassembly Prepare: Konrad Bieniek, Michał Nowak Description Steps Tools Pick up front cover...
