- Page 1 Advanced Printing Systems SS205-V4 +LV Technical Manual SS205-V4+ LV - Technical Manual - Rev B Page 1...
-
Page 2: Revision History
The warranty terms of the product are described in a separate document, please contact A.P.S. for further information. Revision History Rev. Date Page Description Author New product description V4+ Issuing revision A. 02-Aug-2012 Updated picture 08-Sept-2021 Part Numbers added SS205-V4+ LV - Technical Manual - Rev B Page 2... -
Page 3: Table Of Contents
7. MECHANICAL AND HOUSING ..................21 Designing the Door ....................... 21 7.1. The Easy Door Opening System ................... 21 7.2. Overall Dimensions and Fixing Points ................21 7.3. 8. ORDERING CODE ........................ 22 SS205-V4+ LV - Technical Manual - Rev B Page 3... -
Page 4: Introduction

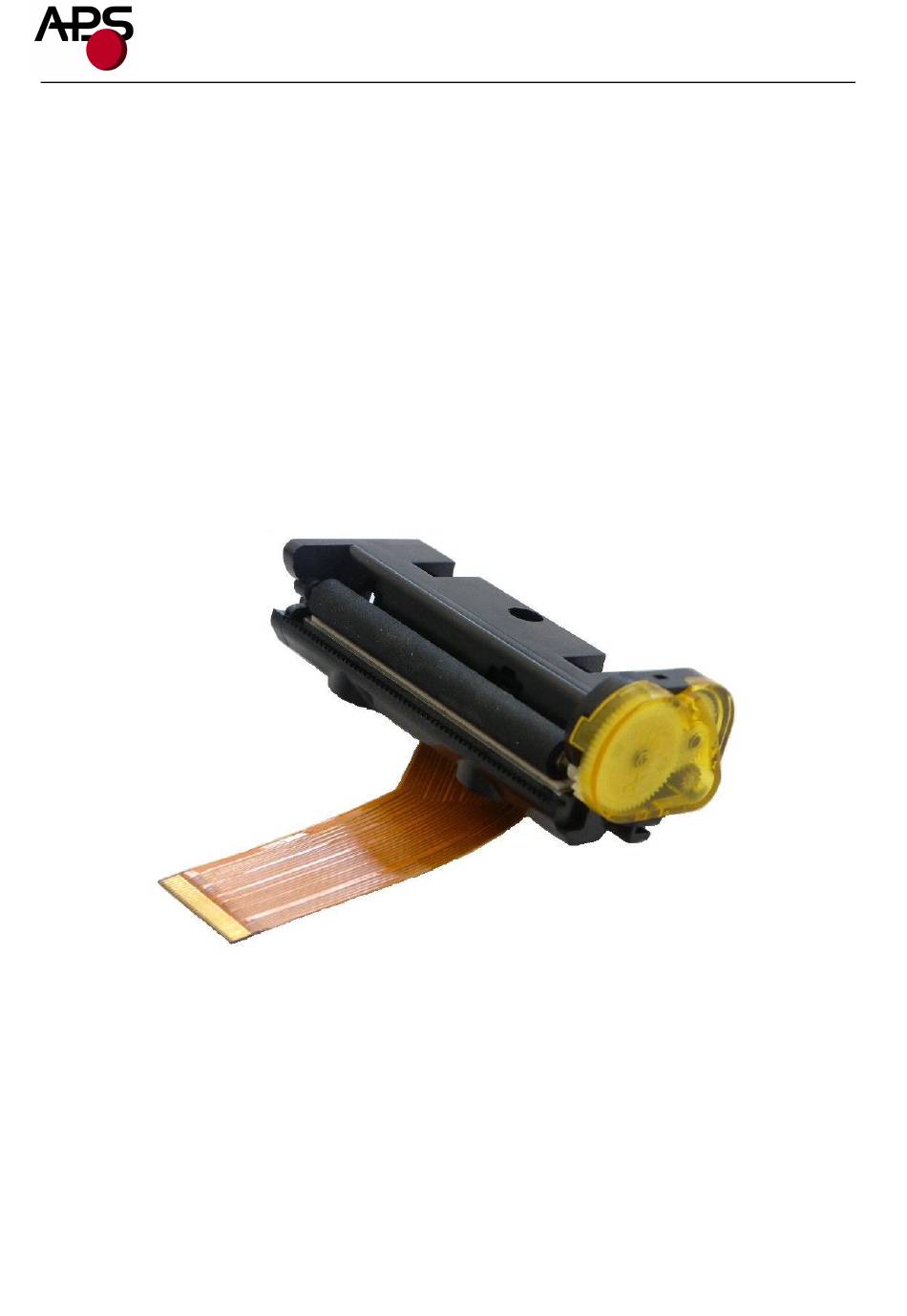

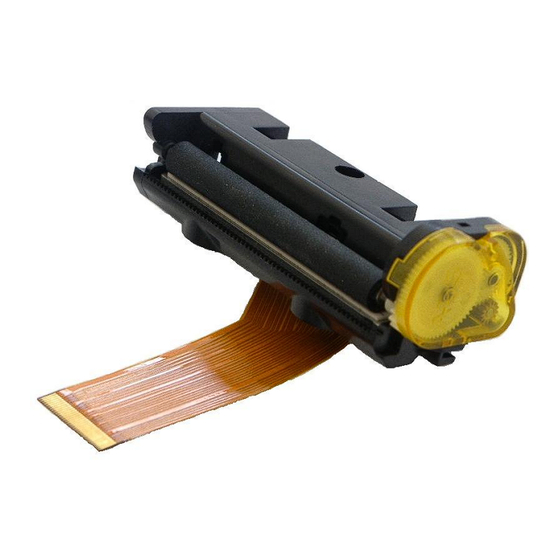

Advanced Printing Systems 1. INTRODUCTION The SS205-V4+ LV (Super small 205, version 4+, high speed) is a new improved version of latest SS205-V4 optimized for low cost application. It is also compatible with SS205-V3. The SS205-V4+ LV printer has been designed to be the smallest, wide voltage range (from 3.0V to 9.5V), and high efficiency easy loading printer on its market. -
Page 5: General Characteristics
(12.5% duty cycle) temp:20/50C from initial value Abrasion/wear resistance 100 km of paper -Head Temp:75C -Rated energy C * When operating temperature is less than 0 , print quality is not guaranteed. SS205-V4+ LV - Technical Manual - Rev B Page 5... -
Page 6: Thermal Head And Printing Configuration
= 60mA Leak current of drivers = 8 V uA/dot LEAK =8MHz Logic supply current DI=1/2f DATA IN/CLOCK Logic supply current = GND Other µA (Non-Operation) logic signal open SS205-V4+ LV - Technical Manual - Rev B Page 6... -
Page 7: Timing Chart
(SO) time Strobe to driver Output td (DO)r 13.0 µs delay time td (DO)f 13.0 µs 3.3. Timing Chart The following chart gives the timing for driving the print head: SS205-V4+ LV - Technical Manual - Rev B Page 7... -
Page 8: Maximum Conditions
- If the print cycle is less than that the one indicated above, then the maximum supply energy value is decreased. For these applications, please contact APS for further information. - When using low energy paper, please contact A.P.S. for more information. -
Page 9: Typical Printing Conditions
(0.05 Ohms) is the driver saturated resistance (11.7 Ohms) is the lead resistance (10 Ohms) (or resistance of TPH contacts) SS205-V4+ LV - Technical Manual - Rev B Page 9... -
Page 10: Thermistor
3.8. Print Position of the Data The first bit of data (dot 1) entered is the first bit of data printed (FIFO), left side of TPH, top view (opposite side of the printer gear box). SS205-V4+ LV - Technical Manual - Rev B... -
Page 11: Operating Precautions
In this case, clean the print-head with a soft applicator and alcohol. Do not use sandpaper as this will destroy the heating elements. For same reasons, avoid using printer in dusty SS205-V4+ LV - Technical Manual - Rev B... -
Page 12: Important Precautions
At power up make sure that logic voltage (Vdd) is present simultaneously or before VH. At power down make sure that VH is at 0 V before removing logic voltage. Do not apply any pulse noise exceeding [2V. 20 ns] to any TPH signal terminals. SS205-V4+ LV - Technical Manual - Rev B... -
Page 13: Stepper Motor Driving Methods
For good print quality, it is advised to keep the current into the windings between two successive dot-lines. It is also recommended to have a few dot lines not printed at motor start to avoid print compression effect due to play take-up into gear box. SS205-V4+ LV - Technical Manual - Rev B Page 13... -
Page 14: Paper Feed Speed In Voltage Control Driving Method
There is no duty cycle limitation when using the current control (250mA). With current control, the max speed is ~100mm/s when the current is 300mA and acceleration curve as below. SS205-V4+ LV - Technical Manual - Rev B Page 14... - Page 15 Advanced Printing Systems Print speed acceleration curve Step T(ms) speed(mm/s) 3,29 3,05 2,84 2,66 2,50 2,36 2,23 2,12 2,02 1,92 1,84 1,76 1,69 1,62 1,56 1,51 1,45 1,40 1,36 1,32 1,28 1,24 SS205-V4+ LV - Technical Manual - Rev B Page 15...
-
Page 16: Printer Driving Timing
Then MaxPS will be 0.125 / 2 = 62.6mm/s (>MaxPFS). So, real print speed will be 35 mm/s. Print speed can be dynamically adjusted, depending on the dot line to be printed. SS205-V4+ LV - Technical Manual - Rev B... - Page 17 PH 1/3 PH 2/4 Example 2: Dynamic division, Double scanning: 1 step per dotline. This mode improves printing quality with increasing of TPH efficiency. PH 1/3 PH 2/4 SS205-V4+ LV - Technical Manual - Rev B Page 17...
-
Page 18: End Of Paper Sensor
R2 = 4700 Ohms VOUT = V2 - R2·ICC In such configuration Phototransistor Threshold Current can be defined as follow: Light Current Phototransistor Threshold Current I Led (mA) Icc (µA) SS205-V4+ LV - Technical Manual - Rev B Page 18... - Page 19 Phototransistor Threshold current given in sample of §6.1 can be adjusted to handle this state as an absence of paper. It is highly recommended to integrate differential measurement (Led switch off/on) and adjust calibration for better reliability. SS205-V4+ LV - Technical Manual - Rev B Page 19...
-
Page 20: Pin Out Assignment
Dotline voltage Dotline voltage Dotline voltage PHI1 First phase of stepper motor PHI2 Second phase of stepper motor PHI3 Third phase of stepper motor PHI4 Fourth phase of stepper motor SS205-V4+ LV - Technical Manual - Rev B Page 20... -
Page 21: Mechanical And Housing
The printer has to be fixed using its own points as described on the overall dimensions drawing, avoid any kind of deformation or torsion, if not, printing quality and printer's life will be drastically reduced. SS205-V4+ LV - Technical Manual - Rev B... -
Page 22: Ordering Code
Advanced Printing Systems 8. ORDERING CODE Type Ordering code SS205-V4+ LV SuperSmall Printer 2" 5V 90SS2007A0000 SS205-V4+ LV2" 5V(WO ROLLER) 90SS2P07A0000 ROLLER MODULE-SS205 90SS200RA0000 Note: the printer mechanism SS205-V4+-LV can be delivered as a complete assembly (printer + platen roller) ref : 90SS2007A0000 or as two separated parts: printer mech. only (without the... - Page 23 9 0 S S 2 x 0 7...
