Summary of Contents for Rane Pacific RC2
- Page 1 RC2 “Pacific” PRODUCT MANUAL 7/2016 MGM...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PERTAINING TO A RISK OF FIRE, ELECTRIC SHOCK, FETAL INJURY, DROWNING, HYPERTHERMIA, OR INJURY TO PERSONS READ AND FOLLOW ALL INSTRUCTIONS WARNING: RISK OF FETAL INJURY; Pregnant or possibly pregnant women should consult a Physician before using a hydromassage bathtub equipped with a heater. WARNING: RISK OF ELECTRIC SHOCK. - Page 3 WARNING: RISK OF HYPERTHERMIA Do not use a hydromassage bathtub equipped with a heater immediately following strenuous exercise. Water temperature in excess of 100° Fahrenheit or 38° Celsius may be hazardous to your health. Check and adjust water temperature before use. ...
-
Page 4: Table Of Contents
This manual is intended to ensure that the equipment performs to your satisfaction. The following information is crucial to the proper operation of the equipment, and will allow for a great bathing experience for both the caregiver and the one being cared for. If there are any questions during the installation or operation of this unit, please contact the Authorized Dealer or Distributor from whom the Product was purchased. -
Page 5: Technical Specifications

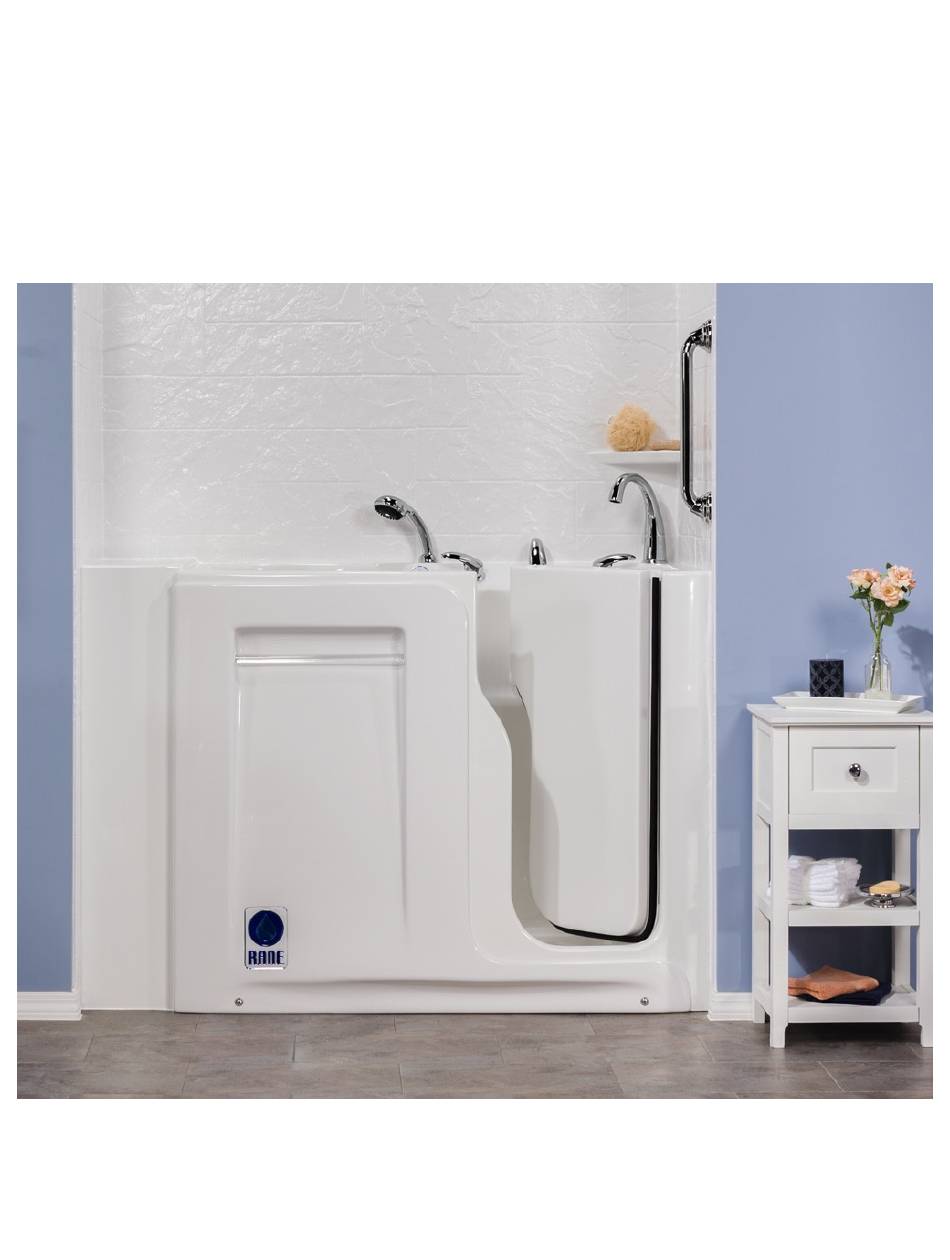

Technical Specifications Description: Model RC2 is a freestanding or built-in, 75-gallon side access bathing tub. Construction: The tub shell consists of a 3/16” thick fiberglass-reinforced polyester laminate. Critical areas are reinforced with a 1/4” thick core of end-grain balsa and additional layers of fortifying laminate. The sanitary gelcoat is an ISO/NPG type-finish. -
Page 6: Using The Tub
Using the Tub Operating Instructions: To open the door, pull upward on door handle Step inside tub and lower yourself to the contoured seat. Push door shut, grasp handle and push forward until the handle stops and the door is in the locked position. ... - Page 7 Using the Tub Section 2.2...
- Page 8 Using the Tub Section 2.3...
-
Page 9: Pre-Installation And Dimensions
Pre-Installation Drawings and Dimensions RC2 Front View Dimensions 49 ½” 17” 14” 40 ½” Seat Height 15” 20” RC2 Top View Dimensions 13” 27” 18” 24” 29” 24” 21” 44” Dimension is from back of seat to foot end of tub. Section 3.1... - Page 10 Pre-Installation Drawings and Dimensions RC2 Plumbing View Dimensions 1 ½” 12” RC2 Plumbing View Dimensions 20” Section 3.2...
-
Page 11: Installing The Tub
Installing the Tub The RC2 is designed to be installed as freestanding units or built into an alcove. Several items of precaution should be taken during installation: USE THIS PRODUCT ONLY FOR ITS INTENDED USE AS DESCRIBED FURTHER IN THESE INSTRUCTIONS ... - Page 12 Section 5.1...
- Page 13 Section 5.2...
-
Page 14: Maintenance And Adjustments
Maintenance and Adjustments Section 6.1... - Page 15 Maintenance and Adjustments Replacing Door Seal Contents of Door Seal Kit Door Seal Instructions Instructions 1. Remove the existing door seal by peeling off the seal. 2. There will be excess glue and seal that will be left behind. Remove these pieces from the door sur- face using a solvent.
- Page 16 Maintenance and Adjustments Routine Maintenance Please contact the Authorized Dealer or Distributor from whom the Product was purchased for periodic updates to this schedule. Model #____________________ Serial # ____________________ Check List Monthly 3 Months 6 Months Yearly Check door seal for wear Check door for alignment Check hoses and connections Clean door seal...
-
Page 17: Troubleshooting
Troubleshooting Problem / Issue Check Action / Solution Re-attach door seal if loose or replace if Check door seal damaged. Go to Section 6 (Maintenance and Adjustments) Door is Leaking Adjust door. Go to Section 6 Check door positioning (Maintenance and Adjustments) Check hose washer / screen in end of Remove and check for debris or supply hoses... -
Page 18: Parts
PARTS (Deck Mount Plumbing Package) Part # Description 3743 Lever Handle 3753 Cartridge (Cold Valve) 3754 Cartridge (Hot Valve) 1865 Deck Mount Shower Wand Holder, chrome 1866 45º Elbow w/ backflow prevention, chrome 1895 Shower Wand, chrome Section 8.1... - Page 19 PARTS (Aromatherapy) Part # Description 3425 Cap, chrome 3758 Aroma Tubes 3759 Internal Bowl 3428 Check Valve, 1/8” 3433 Air Pump w/NEMA plug 3431 Touch / Keypad Section 8.2...
- Page 20 PARTS (Chromatherapy) Part # Description 3716 Air Switch, High-Rise Button, chrome (Off / On) 3437 Control Box 3436 Mini-Light, 9 LED Bulb (includes Round Flange and Cable) Section 8.3...
Need help?
Do you have a question about the Pacific RC2 and is the answer not in the manual?
Questions and answers

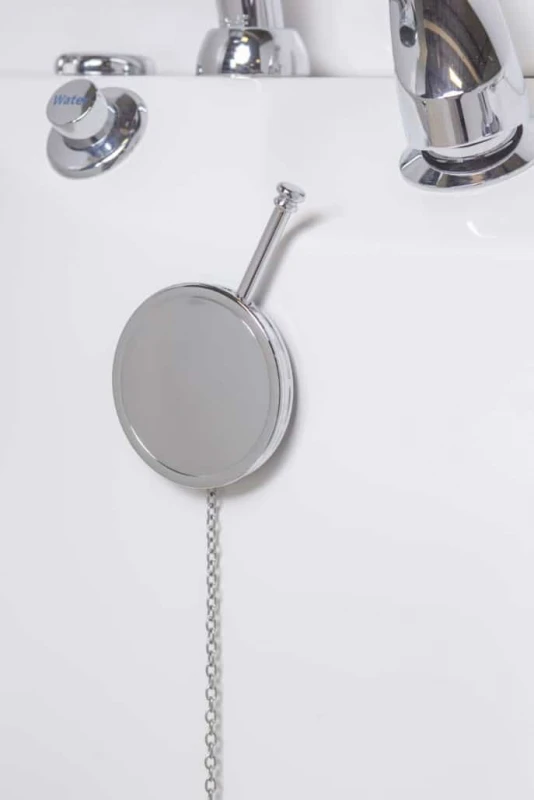

How do I order a replacement set screw/handle for the drain cable control? RC2 "Pacific"
