AOC 16T10 User Manual

AOC 16T10 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

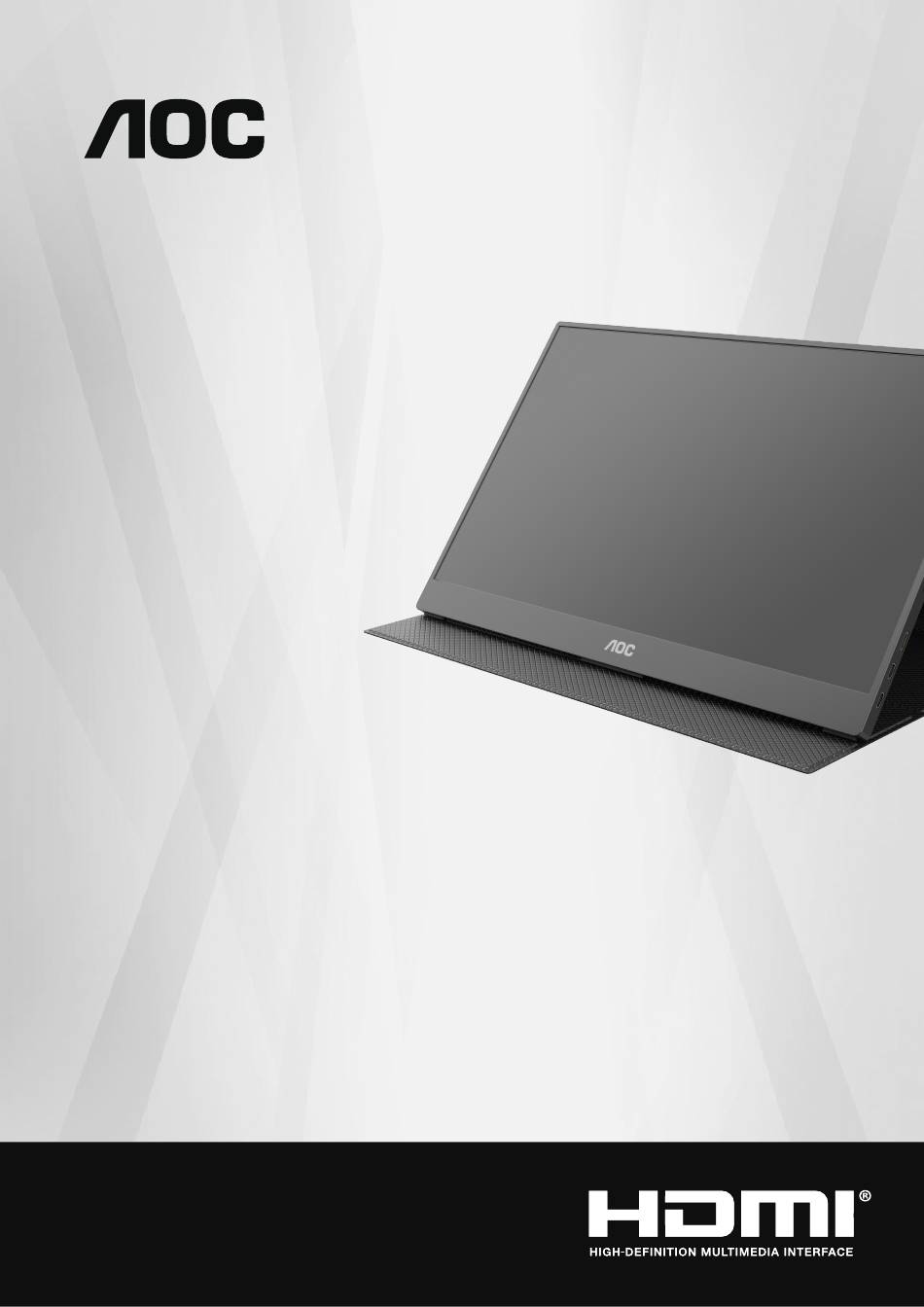

LCD Monitor
User Manual
16T10
www.aoc.com
©2024 AOC. All Rights Reserved.
1
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the 16T10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AOC 16T10

Summary of Contents for AOC 16T10

  • Page 1 LCD Monitor User Manual 16T10 ® www.aoc.com ©2024 AOC. All Rights Reserved.

  • Page 2: Table Of Contents

    Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting Viewing Angle ............................8 Connecting the Monitor ............................. 9 Wall Mounting................................

  • Page 3: Safety

    Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.

  • Page 4: Power

    Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely.

  • Page 5: Installation

    Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product.

  • Page 6: Cleaning

    Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

  • Page 7: Other

    Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.

  • Page 8: Setup

    Contents in Box Monitor Flip Cover Warranty card Power Adapter USB A-C HDMI USB C Cable CP0154-0503000UA1 Cable Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch...

  • Page 9: Setup Stand & Base

    Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:...

  • Page 10: Adjusting Viewing Angle

    Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: NOTE: Do not touch the LCD screen when you change the angle.

  • Page 11: Connecting The Monitor

    Connecting the Monitor Mini HDMI USB C 1. HDMI 2. USB C 3. Earphone Connect to PC Connect the power adaptor to the back of the display firmly. Turn off your computer and unplug its power cable. 3. Connect the display signal cable to the video connector on the back of your computer. 4.

  • Page 12: Wall Mounting

    Wall Mounting Preparing to Install An Optional Wall Mounting Arm. 75mm X2 Wall Mounting: M4*(4+X)mm (X=Thickness of Wall mount bracket) M=4.0Max M4-P0.7 Dk=8.0 H=2.0 L=4+X This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps: 1.

  • Page 13: Adjusting

    Adjusting Hotkeys Source/Exit Volume Game Mode Menu/Enter Power Menu/Enter Power Press the Power button to turn on the monitor. Volume ” or “ ” key to select Volume. When there is no OSD, press “ ” ” key to open Volume function,then press “ Game Mode When there is no OSD, press “...

  • Page 14: Osd Setting

    OSD Setting Basic and simple instruction on the control keys. Luminance Color Setup Picture Boost OSD Setup Game Setting Extra Exit Contrast Gamma Gamma1 Brightness Eco mode Standard HDR Mode 1). Press the MENU-button to activate the OSD window. 2). Press Up or to navigate through the functions.

  • Page 15: Luminance

    Luminance Luminance Color Setup Picture Boost OSD Setup Game Setting Extra Exit Contrast Gamma Gamma1 Brightness Eco mode Standard HDR Mode Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment. Standard Standard Mode. Text Text Mode. Internet Internet Mode. Eco mode Game Game Mode.

  • Page 16: Color Setup

    Color Setup Color Setup Picture Boost OSD Setup Game Setting Extra Exit Luminance Color Temp. Warm DCB Mode Green Blue DCB Demo Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Color Temp. Cool Recall Cool Color Temperature from EEPROM. User Restore Color Temperature from EEPROM.

  • Page 17: Picture Boost

    Picture Boost Luminance Picture Boost Game Setting Extra Exit Color Setup OSD Setup Bright Frame Brightness H. Position Frame Size Contrast V. Position Bright Frame Disable or Enable Bright Frame. Frame Size 14-100 Adjust Frame Size. Brightness 0-100 Adjust Frame Brightness. Contrast 0-100 Adjust Frame Contrast.

  • Page 18: Osd Setup

    OSD Setup Game Setting Extra Exit Luminance Color Setup Picture Boost OSD Setup Language English H. Position Transparence V. Position Timeout Break Reminder English Français Français Português Deutsch Italiano Nederlands Svenska Suomi Language Select the OSD language. Polski Čeština Русский 한국어...

  • Page 19: Game Setting

    Game Setting Extra Exit Luminance Picture Boost OSD Setup Game Setting Color Setup Game Mode Overdrive LowBlue Mode DialPoint Shadow Control Game Color No optimization by Smart image game Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality.

  • Page 20: Extra

    Extra Extra Exit Luminance Picture Boost OSD Setup Color Setup Game Setting Input Select Auto DDC/CI Resolution : 1920(H)x1080(V) Reset H. Frequency : 68 KHz O f imer Image Ratio Wide V. Frequency : 60 Hz Input Select Auto/HDMI/USB C1/USB C2 Select Input Signal Source.

  • Page 21: Exit

    Exit Luminance Color Setup Picture Boost OSD Setup Game Setting Extra Exit Exit Exit the main OSD...

  • Page 22: Led Indicator

    LED Indicator Status LED Color Full Power Mode White Orange...

  • Page 23: Troubleshoot

    Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust.

  • Page 24: General Specification

    Specification General Specification Model Name 16T10 Driving System TFT Color LCD Panel Viewable Image Size 39.5cm diagonal(15.6’’ Wide Screen) Pixel Pitch 0.17925mm(H) x 0.17925mm(V) 30k-85kHz Horizontal Scan Range Horizontal Scan Size(Maximum) 344.16mm Vertical Scan Range 48-75Hz Vertical Scan Size(Maximum) 193.59mm...

  • Page 25: Preset Display Modes

    Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(KHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.940 800x600@56Hz 35.156 56.250 SVGA 800x600@60Hz 37.879 60.317 1024x768@60Hz 48.363 60.004 SXGA 1280x1024@60Hz 63.981 60.020 1280x720@60Hz 45.000 60.000 WSXG 1280x960@60Hz 60.000 60.000 WXGA+ 1440x900@60Hz 55.935 59.887 WSXGA+ 1680x1050@60Hz 65.290 59.954 1920x1080@60Hz 67.500...

  • Page 26: Pin Assignments

    Pin Assignments Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock- TMDS Data 1Shield...

  • Page 27: Plug And Play

    Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
