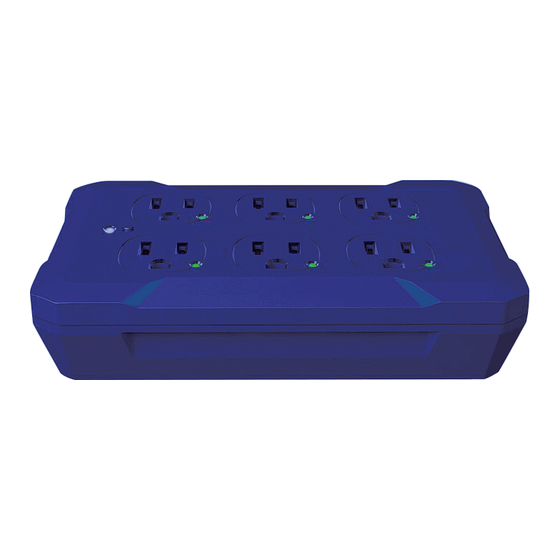

110V Control Board (OA6-110)
OVERVIEW
Thank you for purchasing our OA6-110 110V Contro Board.
The OA6-110 110V Control Board is specially designed for Aqua-X lrrigation Control System. lt features 6
individual 110V outputs for the pump control in the Aqua-X Control System. Water pumps are the basic
component in automatic flow control in the irrigation system.
With the use of 110V Control Board(s), the Aqua-X lrrigation Control System could manage up to 30
individual 110V outputs (used to control water pumps) for multiple watering plans (by schedule or by
recycle). With the massive control outputs, user could manage water delivery schedules easily for multiple
nutrients, multiple rooms and multiple zones.
FEATURES
LED Power Indicator
●
Addressing Button
●
6 individually-Controlled 110V Outputs
●
Individual LED Indicator for Each Output
●
Double RJ12 Cable Sockets for Daisy Chain Connectivity
●
User Manual
OA6-110
For Aqua-X Irrigation Control System
01
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TrolMaster OA6-110
Summary of Contents for TrolMaster OA6-110
- Page 1 Thank you for purchasing our OA6-110 110V Contro Board. The OA6-110 110V Control Board is specially designed for Aqua-X lrrigation Control System. lt features 6 individual 110V outputs for the pump control in the Aqua-X Control System. Water pumps are the basic component in automatic flow control in the irrigation system.
- Page 2 LED Power Indicator Addressing Button Output LED Indicator 110V Outputs Rj12 Cable Sockets OPERATION INSTRUCTIONS 1. Connection to Aqua-X Use a RJ12 Cable to connect the first 110V Control Board to the Aqua-X Controller. Plug the RJ12 cable connector into the 110V CONTROL port on the bottom of the Aqua-X Controller. Then plug the opposite RJ12 cable connector into the RJ12 cable socket on the either of the first 110V Control Board.
- Page 3 2. Address Assignment When a 110V Control Board has been successfully connected to the Aqua-X Controller and powered on, the LED power indicator on the Control Board will keep flashing which means that the Control Board has not yet been assigned to the Aqua-X Controller. 110V Control Board Aqua-X Controller When the RJ 12 cable is not correctly connected to the specific 110V CONTROL port or the 110V Control...
- Page 4 3. 110V Control Board Setting On the SETTING page, press the ENTER button to enter the 110V Control Board list page. The connected Control Board(s) will be shown page to page. User can press RlGHT button to select the 110V Control Board(A, B, C...) to change the setting.
- Page 5 b. By recycle: Once the “By recycle" setting is selected, user can press UP or DOWN button to select “Start", “On time", “Off time" & “Times" to edit. Press ENTER button to activate the setting. For example, when “Start" is selected, press "ENTER"...
-
Page 6: Specifications
In the case of defects of the Control Board, the Control Board will either be replaced or repaired using new or reconditioned products or parts by TrolMaster within three-year warranty from the original date of purchase. For service, return the Control Board in good packaging to our agent with the original sale receipt. - Page 7 4. La Control Board de l'appareil doit être placée dans un endroit où il est facile de la retirer en cas de panne. For any issues or concerns with our products, DO NOT return them to the store. Please contact our tech support department at support@trolmaster.com or call 877-420-9876. June 2024...
