Summary of Contents for Silhouet-Tone EVOLUTION ST 350

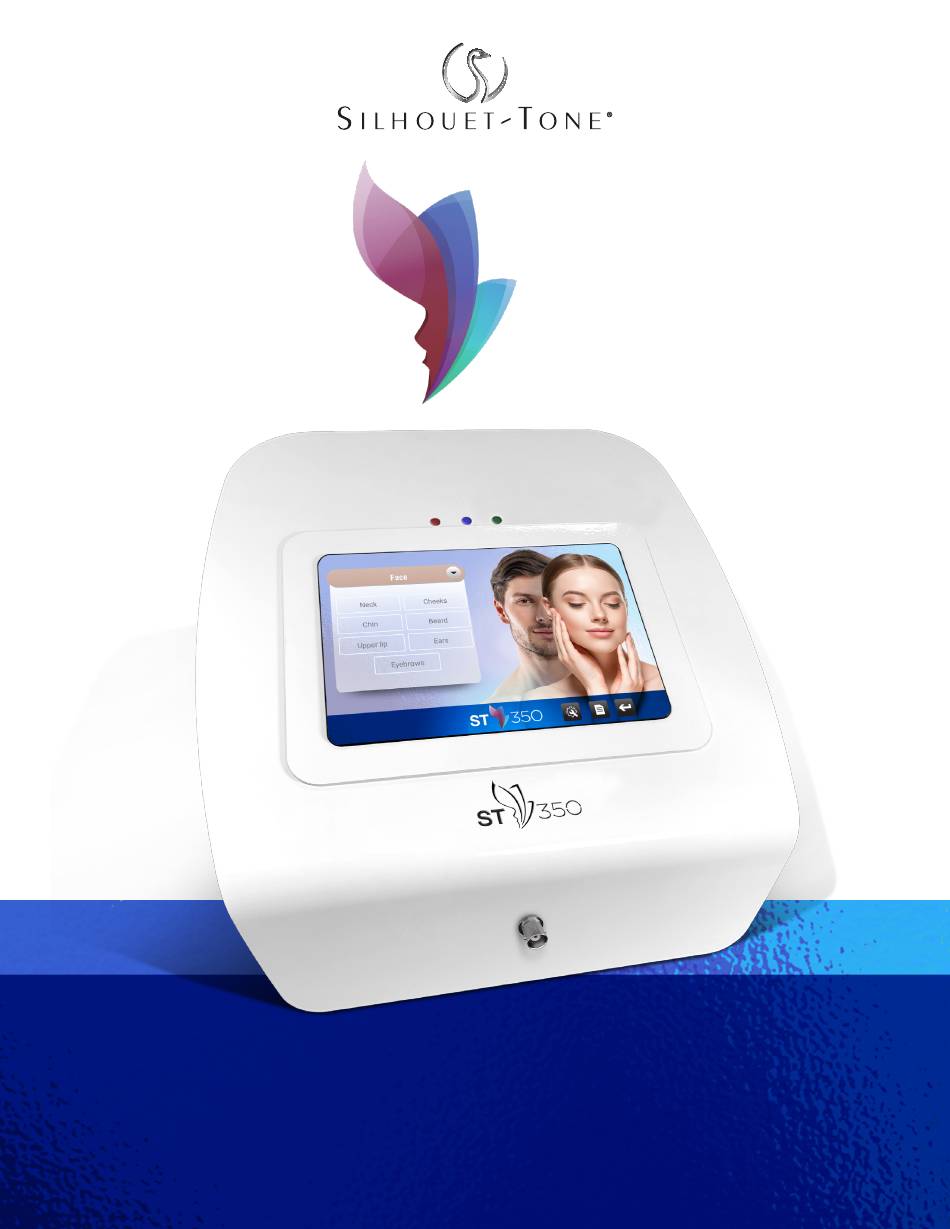

Page 1 INSTRUCTION manual...
Page 2: Without Notice
— graphic, electronic or mechanical, including photocopying, recording, magnetic recording, safeguarding of information and retrieval of documents—without prior approval from the company. SILHOUET-TONE RESERVES THE RIGHT TO CHANGE THE SPECIFICATIONS OF THE EVOLUTION ST350 DEVICE WITHOUT NOTICE.
Page 3: Table Of Contents
Technical Specifications Terminology Thank you for your confidence in Silhouet-Tone Corporation’s products and congratulations on your decision to purchase the EVOLUTION ST350. The purpose of this manual is to familiarize the user with the characteristics, operation and maintenance of the device.
Page 4: Important Protectives Measures
11. This device must be used in a professional manner by duly trained and qualified personnel with knowledge of skin physiology. If you have any questions regarding the operation of this unit, please contact Silhouet-Tone Corporation or your local distributor.
Page 5 22. Always maintain good contact between the return electrode and the customer/patient’s skin. 23. Always maintain good contact between the filament holder and the customer/patient’s skin. 24. Never immerse the filament holder in any type of solution. 25. It is imperative that the needle be changed, if the filament holder has escaped you. 26.
Page 6: Contraindications
Contraindications BEFORE THE START OF TREATMENT, COMPLETE THE CLIENT/PATIENT FORM AND THE CONSENT OR AGREEMENT FORM GENERAL CONTRAINDICATIONS: • Epilepsy with convulsions • Pregnancy and breastfeeding • Cancer, chemotherapy treatment and remission (after 1 year without treatment and without medication, on medical authorization) •...
Page 7: Device Characteristics
The system is designed to be used by beauticians, nurses, medical assistants, doctors or qualified health professionals, for a purely aesthetic purpose. Silhouet-Tone Corporation is not responsible for any damage or accidents caused by improper use of the system. If you have any questions, please contact Silhouet-Tone Corporation or your local distributor.
Page 8 VECTORIAL MODULATIONS MC (Exclusive Technology to Silhouet-Tone Corporation) Many years of research have enabled Silhouet-Tone Corporation and its team of engineers to design and develop the current Vectorial Modulations MC, the most advanced distribution system on the market. Vectorial Modulations MC modulate the current in intensity and duration while the needle is inserted into the follicle.
Page 9: Connecting Accessories
Connecting accessories CAUTION: Risk of electrical shock, do not remove back cover. Refer servicing to qualified service personnel. Back side: 1. Power outlet. 5. Soothing roller electrode (red) 2. ON / OFF switch. 6. Contact electrode outlet (small black outlet). 3.
Page 10 Back panel: • Power cable to be connected into # 1 Power outlet. • Pedal to be connected into # 4 Pedal outlet (black big outlet) on the rear unit’s side. • Red extension cable to be connected into # 5 Roller electrode outlet (red outlet) on the rear unit’s side while other end inserted into the Soothing roller outlet.
Page 11 5. To access to the Instruction Manual press “Instruction” button at the bottom of the front screen. To change the language press the “TOOL” icon at the bottom of the screen and select desired language (“French” or “English”). The language will be kept in memory for following uses. Use the ‘‘Return’’...
Page 12: Unit Settings
CAUTIONS: Never proceed to use the unit if the display screen is inoperative. 1. To turn the unit on, use the power switch located at the back of the unit. Switch to the «ON» position. Then Silhouet-tone logo will appear. 2. The computer will take approximately 15-30 seconds to load all programs.
Page 13 Treatment screens description 4 SELECTION BUTTONS ARE AVAILABLE IN « DEPILATION » PROGRAM “FACE”, “BODY” OR “BY HAIR TYPE’’ AND “MANUAL MODE”: “Face” or “Body” icon will bring up all face or body areas to be treated. Select treatment zone by pressing the desired area.
Page 14: Turning The Unit Off
2 Selection buttons are available in “Soothing phase” program (Ana / Cata): Refer to section Soothing Phase. The “TOOL’’ key on the bottom left of the screen, is a configuration key that enables system’s setting parameters, such as modifying screen brightness, beep sound insertion delay and language. The “Back’’...
Page 15: Treatment Screen
Treatment screen WARNING: Never touch the screen with the probe. Note: before any treatment verify if all jewelleries are removed. DEPILATION PROGRAMS Area to select: Face / Body Programs The user can select the specific “Face” or “Body” area to be treated by simply pressing the desired area. Each area to be treated has specific waveforms and modulation programs designed for its own sensitivity and degree of difficulty.
Page 16 Blend mode (high-frequency energy combined with direct and direct current) is available for all hair removal middle, coarse and very coarse options in preprogrammed mode. You can select it by activating the «Blend» key and deactivate it to return to «Thermolysis» mode by activating the «Thermolysis»...
Page 17 • Time is not editable in Blend mode for galvanic current. It was calculated judiciously in order to produce the desired reaction of caustic soda production. T => time / seconds: indicates the duration of the Thermolysis / Electrolysis wave INT in %=>...
Page 18: Processing Time
PROCESSING TIME You have the possibility: 1. Either to work in real time mode (that is to say by predefining the prerequisite treatment time for the session, the area and the type of hair). The selection of this mode is then made on the control screen (key). 2.
Page 19 ‘‘Blend” key will only appear systematically. Activating this key will switch modality from “Thermolysis” to “Blend”. When blend is selected, an extra “Electrolysis” dial will appear which can be used to modify galvanic parameters. Pressing the “Thermo” key will switch back to Thermolysis mode. The hair selection bar displays the selected hair.
Page 20 Its use is subject to specific vocational training at the Silhouet-Tone training centres. The company Silhouet-Tone declines any responsibility in the framework or the basic training in final electrical hair removal would not be followed by the technician. The same applies to the Thermocoagulation technique.
Page 21 Soothing phase PHASE The Soothing phase key on the front screen is used to select “Cataphoresis” or “Anaphoresis”. Note : The polarity of the DC current is pre-set, inside the unit, by a relay. Therefore, there is no need to modify connection of the electrodes when switching between “Cata” and “Ana”. When you select “Cata”, roller’s electrode (active electrode) is automatically loaded with a positive charge (+).
Page 22 Before treatment make sure that: • All jewelry must be removed. • Place the contact electrode covered with wet gauze, under the shoulder, when working around face area or upper body or under the thighs when working on lower body. (-) ANAPHORESIS “Anaphoresis”...
Page 23: System Screen Configuration
CAUTION: • NEVER use the roller directly on the skin (without gel). • For roller maintenance clean all gel residues on the roller after each use. • Use bactericidal wipes to disinfect the roller. The treatment should be soft and comfortable. The client can fill only a slight tingling or cooling sensation.
Page 24: Important Note
Timer 1 option is available: True Time Mode: Can be used to countdown a pre-set time. Useful to control time with a client. The choice of Timer mode is selected by using the “Treatment Duration” bar. • True Time Mode: To use the timer as a countdown timer, select the desired treatment time, using the “up” or “down”...
Page 25 Sound At the end of each insertion, the unit beeps to indicate that it is safe for the needle to be removed from the follicle. If you wish to use the visual “satellite” signal, the beep can be silenced by pressing the “Beep” key. Note: When the “Beep”...
Page 26: Needles And Others Supplies
• Use ONLY disposable sterile needles. • Needles must be discarded after each use. • This unit is conceived and testes ONLY with needles and needle-holders recommended by Silhouet-Tone. Needle size varies according to the diameter of the hair to be treated.
Page 27 • To avoid hyperpigmentation, use sunblock and avoid sun exposure, including tanning salons, for one week. Wear a brimmed hat for outdoor activity until healing is complete. • Do not drink alcohol 24 hours after intervention. • Do not take aspirin for 48 hours, after intervention. •...
Page 28: Accessories For Evolution St350
• When ordering, please use the corresponding product codes. • Please keep box & shipping material to ensure safe shipping when returning your EVOLUTION ST350 unit for servicing. NOTE: please contact Silhouet-Tone if you want to use other needles and needle-holders or any other accessories. 422348-Evolution ST350-Instruction manual-usa-rev01_AN...
Page 29: Warranty
Accessories such as the probe holder, cables and contact electrode are not covered by this warranty. They are warranted 6 months. This warranty does not cover damage caused by accidents, or incorrect use, or a party other than SILHOUET-TONE attempting to repair this unit.
Page 30: Trouble Shooting Guide
Some difficulties can be solved without the help of an expert. If a problem is encountered, try to follow the recommendations below first. If the problem persists, do not open the body of the device or try to repair it by yourself, contact the local Silhouet-Tone after-sales service. The device turns on but does not work •...
Page 31: After Sales Service
• We advise you to always have a filament holder in advance, this element being major for your practice. • Follow the troubleshooting guide if a problem should occur. • If the problem persists, contact your local Silhouet-Tone service representative. • When contacting service, mention the serial number of your device on the back of the device, the date of purchase and the name of the distributor that sold the device to you.
Page 32 IN PRE-PROGRAMMED MODE: • 9 body zones • 7 face zones PROGRAMS – In hair size mode: • Very fine, fine, medium, coarse, very coarse PROGRAMS – In manual mode: settings to zero. FILAMENT HOLDER: 2 different references, each of the references being only compatible with isolated and uninsulated needles of size F.
Page 33: Technical Details
Technical details Screen : Large 10.1 inch touch screen (25.654 cm) Certifications: CSA and FCC Power supply: 110-240V / 50-60Hz – 1.7A Width: 10.3 in (262 mm) Device dimensions: Height: 6.5 in (164 mm) Depth: 14.7 in (374 mm) Weight of the device: Pounds (11.5) Kg (5.2) Construction : Metal housing...
Page 34: Terminology
Terminology A : abbreviation for Ampere. Unit of measurement of the intensity of an electric current. Anaphoresis: pre-epilation treatment. Blend: hair removal treatment that uses the combination of 2 different types of currents. Cataphoresis: post-epilation treatment. Electrolysis: hair removal method that uses galvanic current. Electrolysis is commonly referred to as permanent electrical hair removal.
Page 35 — graphic, electronic or mechanical, including photocopying, recording, magnetic recording, safeguarding of information and retrieval of documents—without prior approval from the company. SILHOUET-TONE RESERVES THE RIGHT TO CHANGE THE SPECIFICATIONS OF THE EVOLUTION ST350 DEVICE WITHOUT NOTICE.
Page 36 SILHOUET-TONE CORPORATION 2185, rue Michelin Laval (Québec) H7L 5B8 Canada Tél. : 450 687-9456, 1 866 340-9456 export@silhouettone.com SILHOUET-TONE (U.S.A.) INC 7227 NW 54th St Miami, Florida 33166 U.S.A. Tel.: 1 800 552-0418 stusa@silhouettone.com ZENDA CORP SA 1, Chemin des Cibleries 1896 Vouvry, Suisse Tél.
